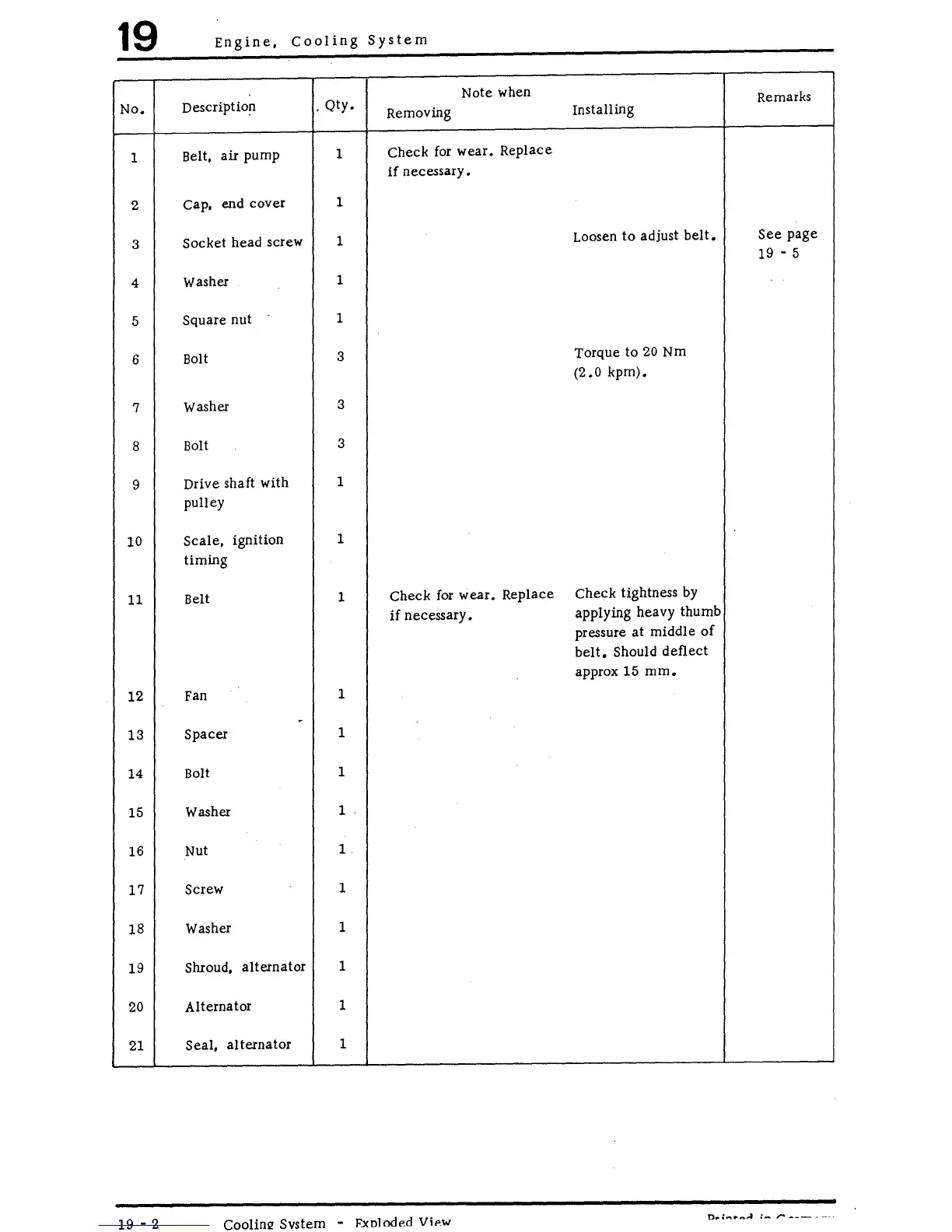

Engine, Cooling System
. Qty.
Note when
Remarks
No.
Description
Removing
Installing
1
Belt,
air pump
1
Check for wear. Replace
if necessary.
2
Cap,
end cover
1
3
Socket head screw
1
Loosen
to adjust belt.
See page
19 - 5
4
washer
1
5
Square nut
1
6
Bolt
3
Torque to
20 Nm
(2.0 kpm).
7
Washer
3
8
Bolt
3
9
Drive shaft with
1
pulley
10
Scale, ignition
1
timing
11
Belt
1
Check for wear. Replace
Check tightness by
if necessary.
applying heavy thumb
pressure
at middle of
belt. Should deflect
approx 15 mm.
12
Fan
1
-
13
Spacer
1
14
Bolt
1
15
Washer
1
16
Nut
1
17
Screw
1
18
Washer
1
19
Shroud,
alternator
1
20
Alternator
1
21
Seal, alternator
1
19
- 2
