Porsche 912 E - Page 67

No.
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
44
. Description
Adapter, alternator
Nut
Washer
Fan housing
half rear
Fan housing half, front
Bolt
washer
Screw
Washer
Shaft
Non-return air flap
Bolt
M4 X 8
Washer
Square
nut
Screw
Washer
Support spring, shaft
Control flap with
shaft, right
Support
Bracket, control
flap
Control flap, left
Bolt M 6
Printed in Germany
Qty.
1
4
4
1
1
3
3
7
7
2
2
1
1
1
2
2
2
1
2
1
1
1
Removing
Engine, Cooling System
Note when
Installing
Insert into front fan
housing half.
Torque to 20 Nm
(2.0 kpm).
Remove and install together.
Check for free
movement.

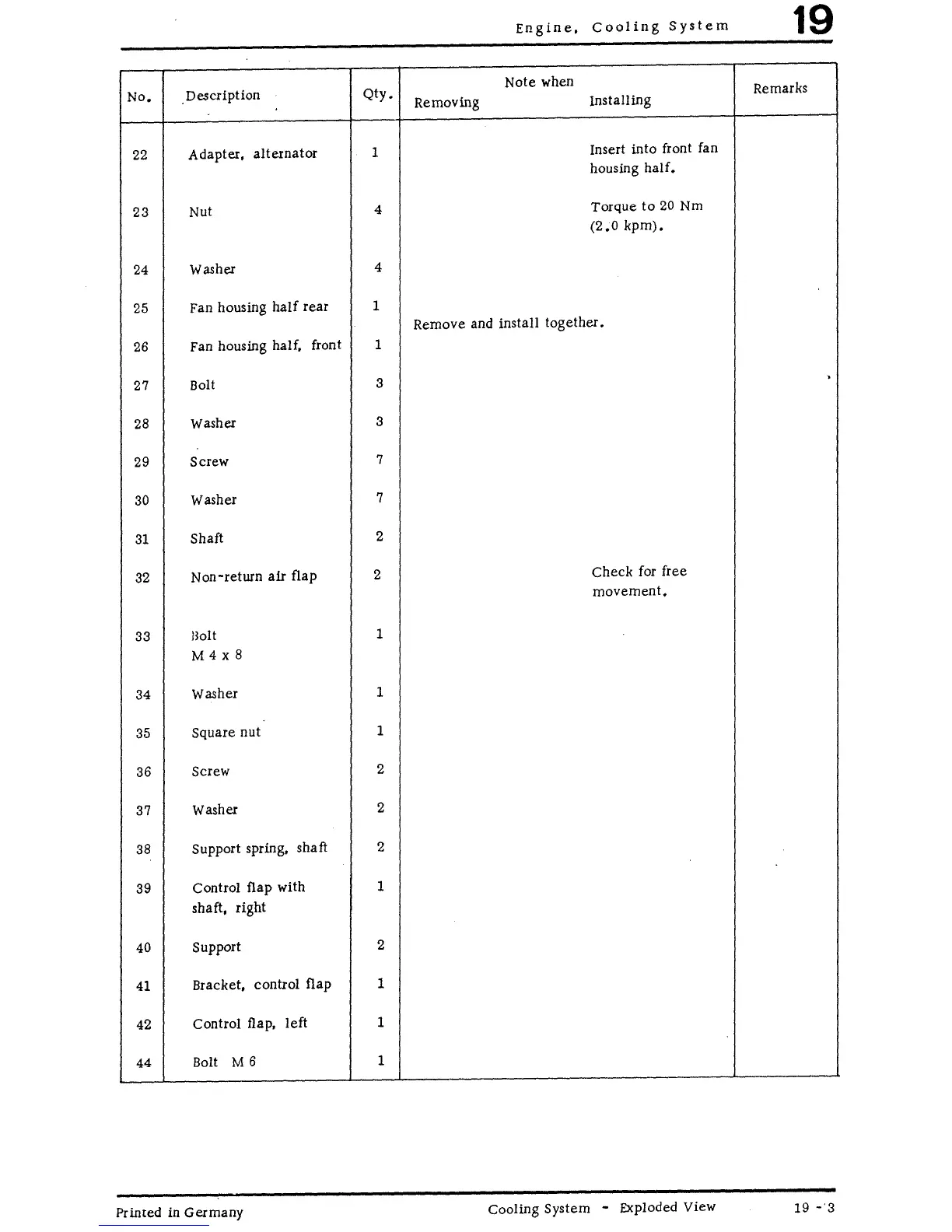

Cooling System - Exploded View
19
Remarks
19 -·3
