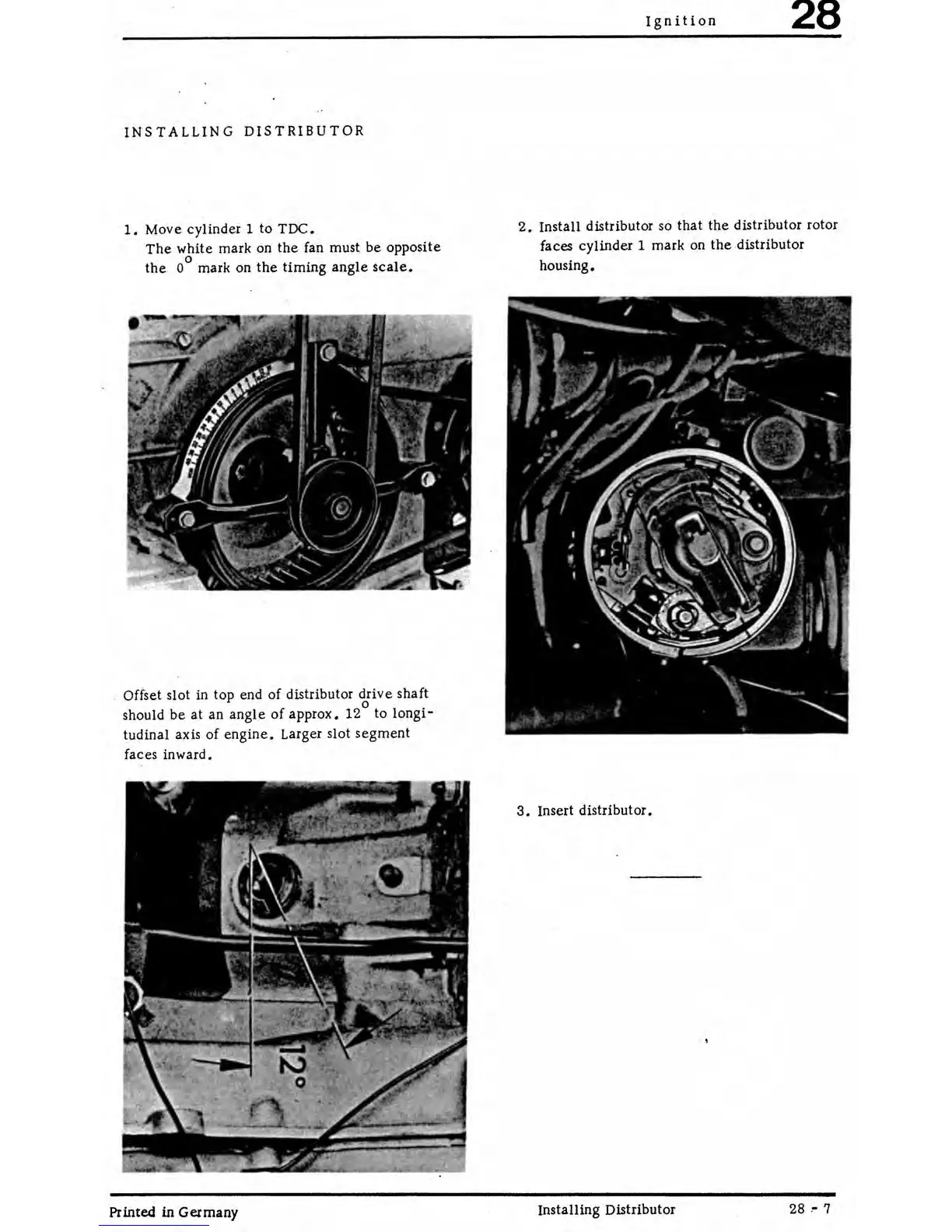

INSTALLING DISTRIBUTOR
1. Move cylinder 1 to TDC.
The white mark on the fan must be opposite
0 .
the 0 mark on the timmg angle scale.
Offset slot in top end of distributor drive shaft
0 .
should be at an angle of approx. 12 to longl-
tudinal axis of engine. Larger slot segment
faces inward.
Printed in Germany
Ignition
28
2. Install distributor so that the distributor rotor
faces cylinder 1 mark on
the distributor
housing.
3. Insert distributor.
Installing Distributor
28 .- 7
