382 Minor Repairs

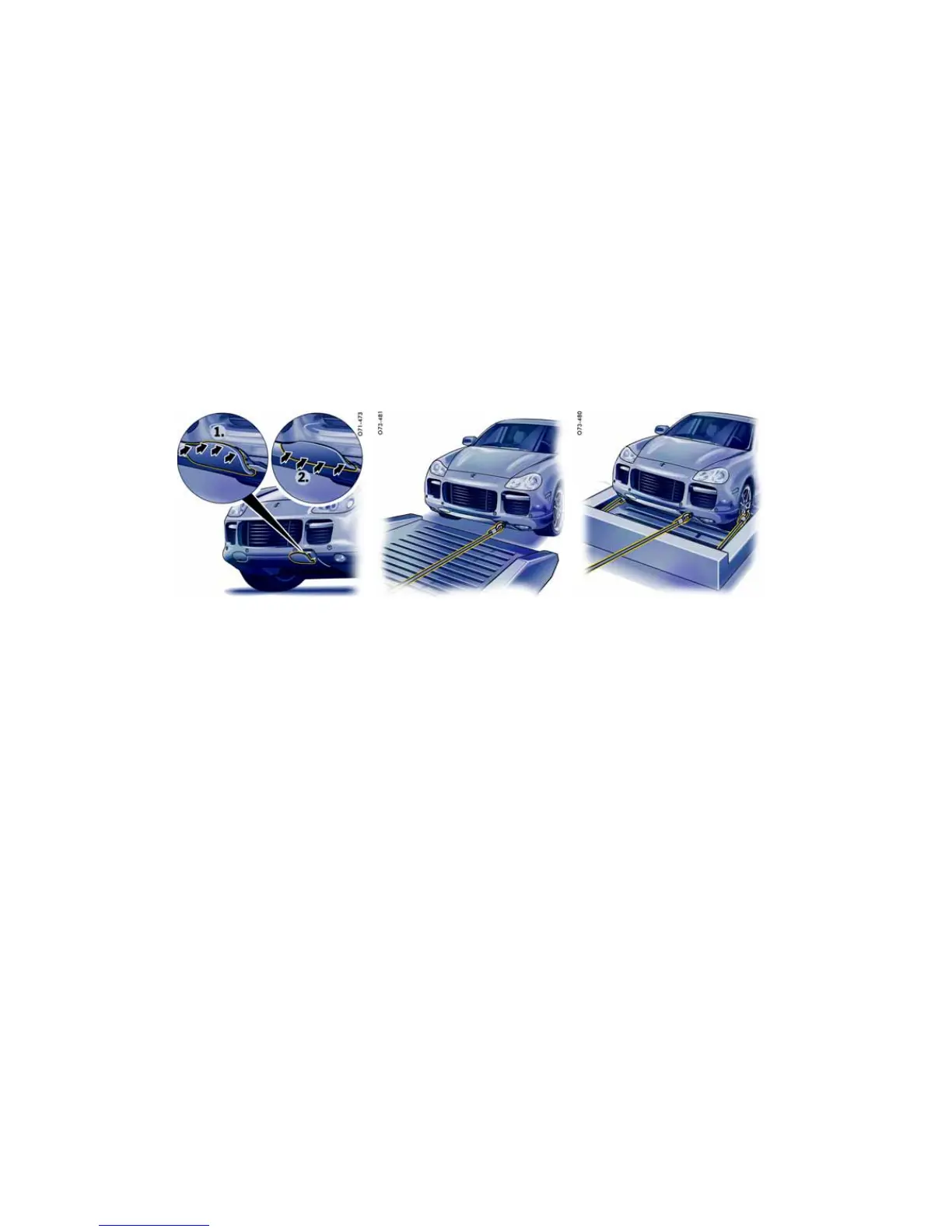

Fitting plastic cover at front
First engage the upper locking tabs of the plastic
cover, and then press in the bottom tabs and side
tab uniformly until the tabs have engaged fully.
Pulling vehicle onto flat bed
1. Position wooden ramps at the base of the flat
bed to reduce the angle of the pull.
2. Reel in the hoist cable and check the underside
of the vehicle for any interference.
Tying down vehicle on flat bed
1. Carefully feed towing straps through the open-
ing in the rear wheels.
Make sure metal parts of straps do not dam-
age rim. Make sure the strap is flat over the
rim bead.
Make sure brake backing plate is not dam-
aged.
2. Secure straps to rear of flat bed.
3. Reel in hoist cable only far enough to tension
tie-down straps.
