12
INSTALL POCKET
CUTTING MOTOR
CAUTION:
Disconnect pocket
cutting motor and
machine from power
source and place
switches in the OFF
position.

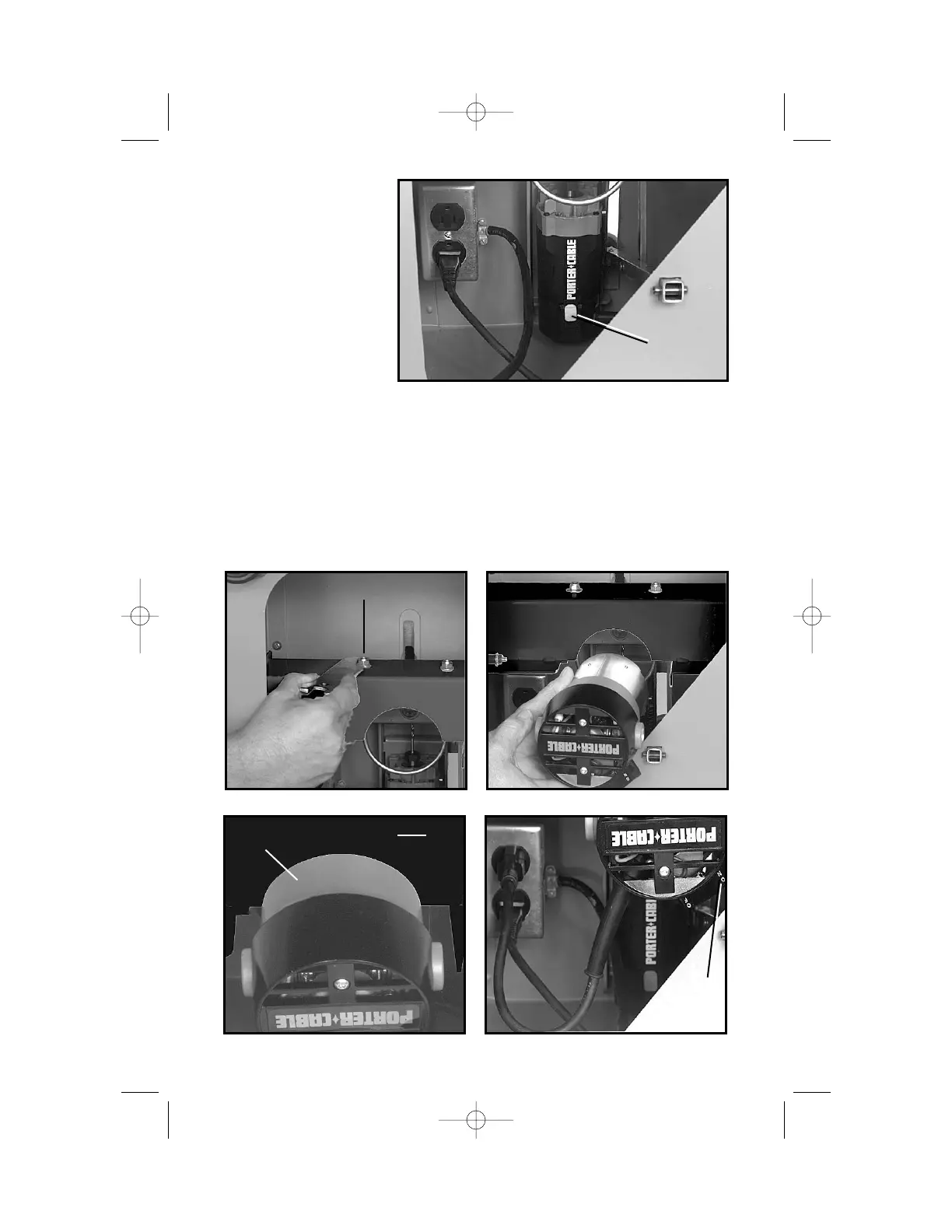

1. Loosen motor
clamp nut (A) Fig. 12:
use the
7
/16
" wrench to
rotate clamp nut
counterclockwise
several turns to loosen clamp.
2. Orient motor as shown in Fig. 13, and insert into clamp. Seat motor into
mounting bracket: the upper motor housing (A) Fig. 14, must touch the
mounting bracket (B) Fig. 14.
3. Tighten the motor clamp nut firmly.
4. Insert motor power cord into receptacle (see Fig. 15).
CAUTION: Make sure machine power cord is not connected to
power source.
5. Set motor switch (A) Fig. 15, to the ON position.
Fig. 11
A
Fig. 12 Fig. 13
Fig. 14 Fig. 15
A
B
A
A
