11

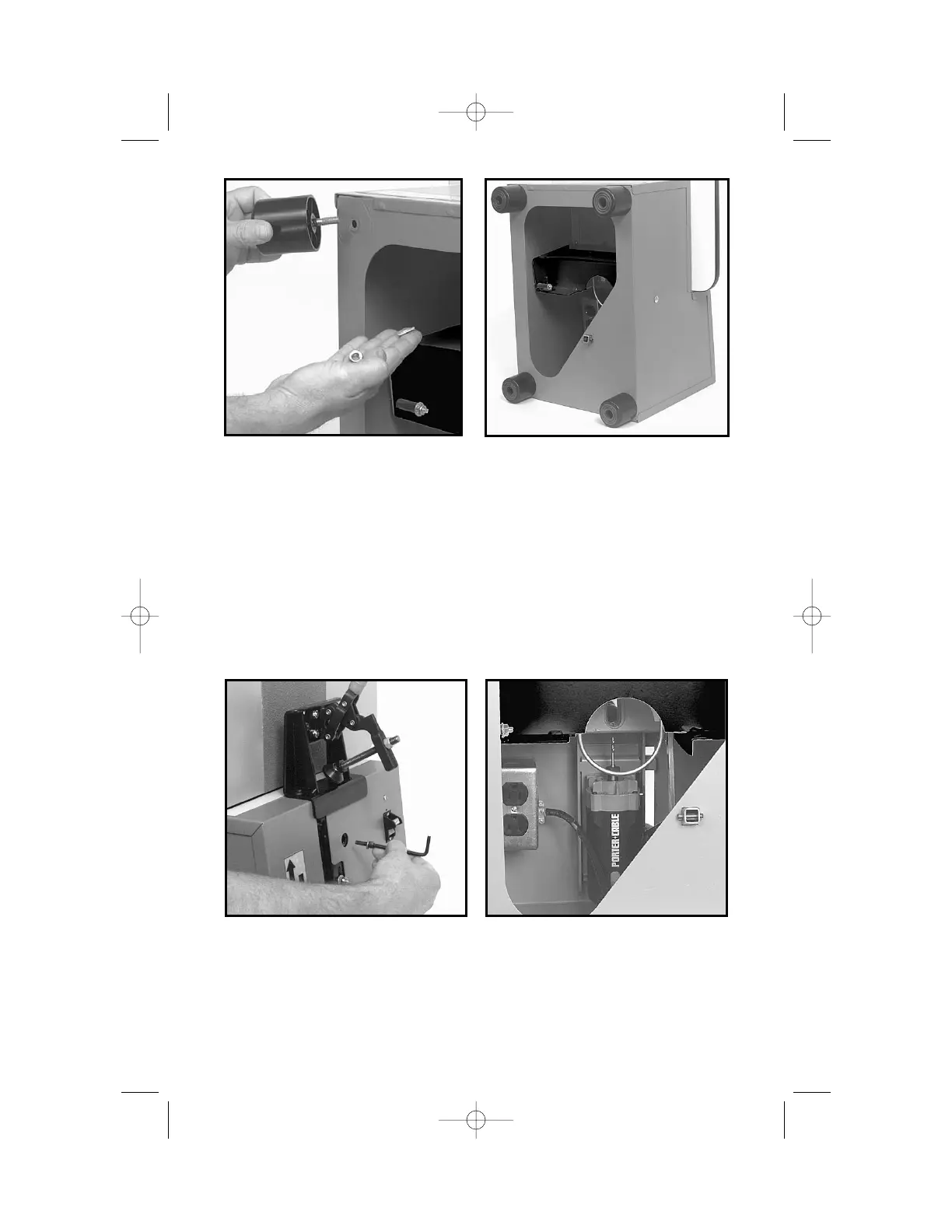

Fig. 7 Fig. 8
INSTALL DRILL MOTOR
NOTE: The cabinet assembly should still be positioned on its back
as described in step #1 of INSTALL TABLE TOP Section.
CAUTION: Disconnect drill motor and machine from power source
and place switches in the OFF position.
1. Place the (
1
/
4"-20 ×
1
/
2" long, flat head), motor mounting screw onto the
5
/
32" hex wrench (see Fig. 9).
2. Position the screw through access hole in the top of cabinet (see Fig. 9),
and into the hole in the motor mounting bracket. Hold screw and wrench in
this position.
3. Position drill motor into cabinet as shown in Fig. 10, and secure in place
with the mounting screw.
4. Plug drill motor power cord into receptacle (see Fig. 11).
CAUTION: Make sure machine power cord is not connected to
power source.
5. Move drill motor switch (A) Fig. 11, to the ON position.
Fig. 9
Fig. 10
