11
TEMPLET GUIDES

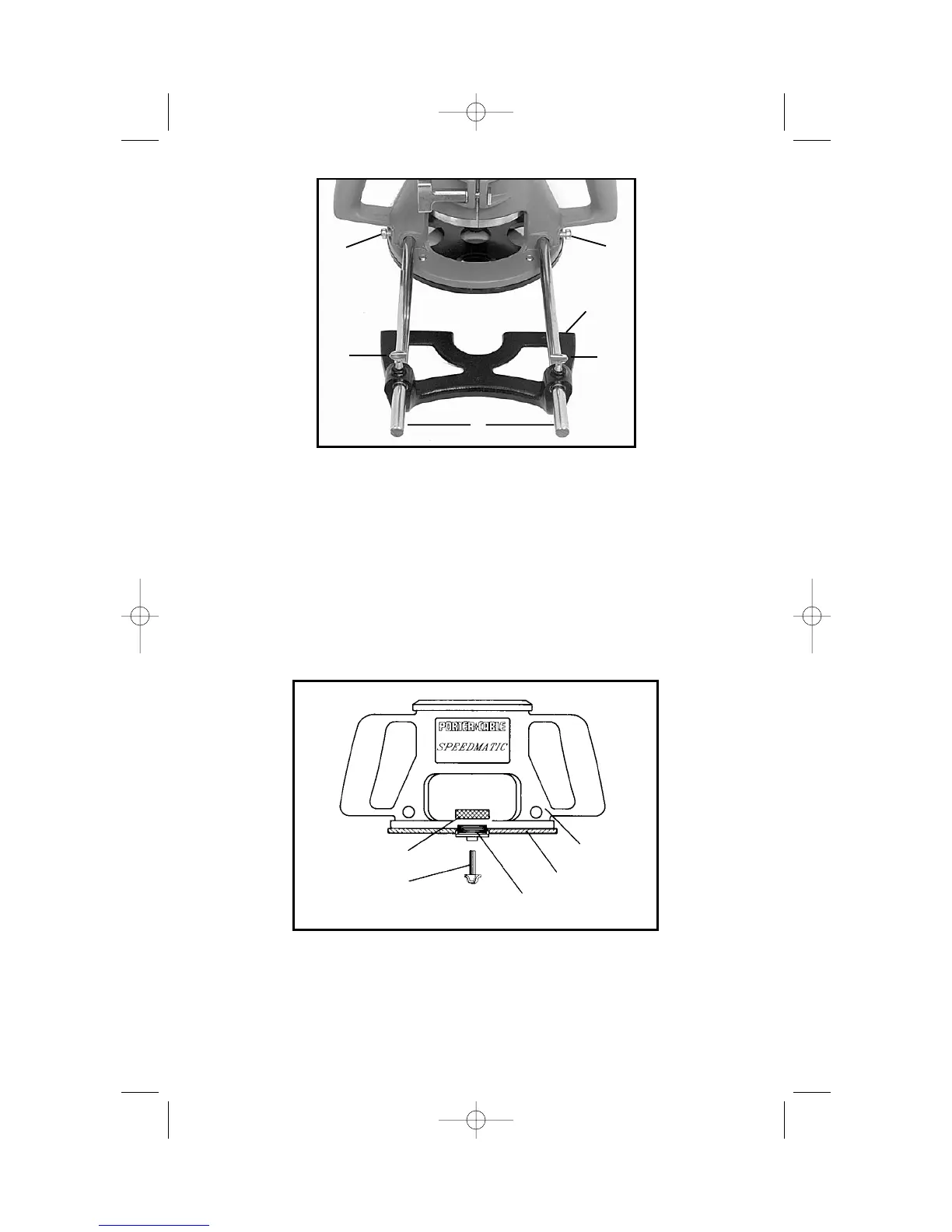

A wide variety of templet guides are available for use in pattern and templet
routing operations. Fig. 7 shows a typical combination bit, templet guide, and
locknut.
CAUTION: DISCONNECT TOOL FROM POWER SOURCE.
To install, insert templet guide in center hole in router base and secure in
place with the locknut.
BEFORE CONNECTING ROUTER TO POWER SOURCE: Install, bit, adjust
depth of cut, and rotate router chuck by hand to be sure bit or collet do not
contact templet guide.
B
B
D
D
A
C
Fig. 6
LOCKNUT
ROUTER BIT
TEMPLET GUIDE
SUB-BASE
BASE
Fig. 7
