TEMPLET GUIDES

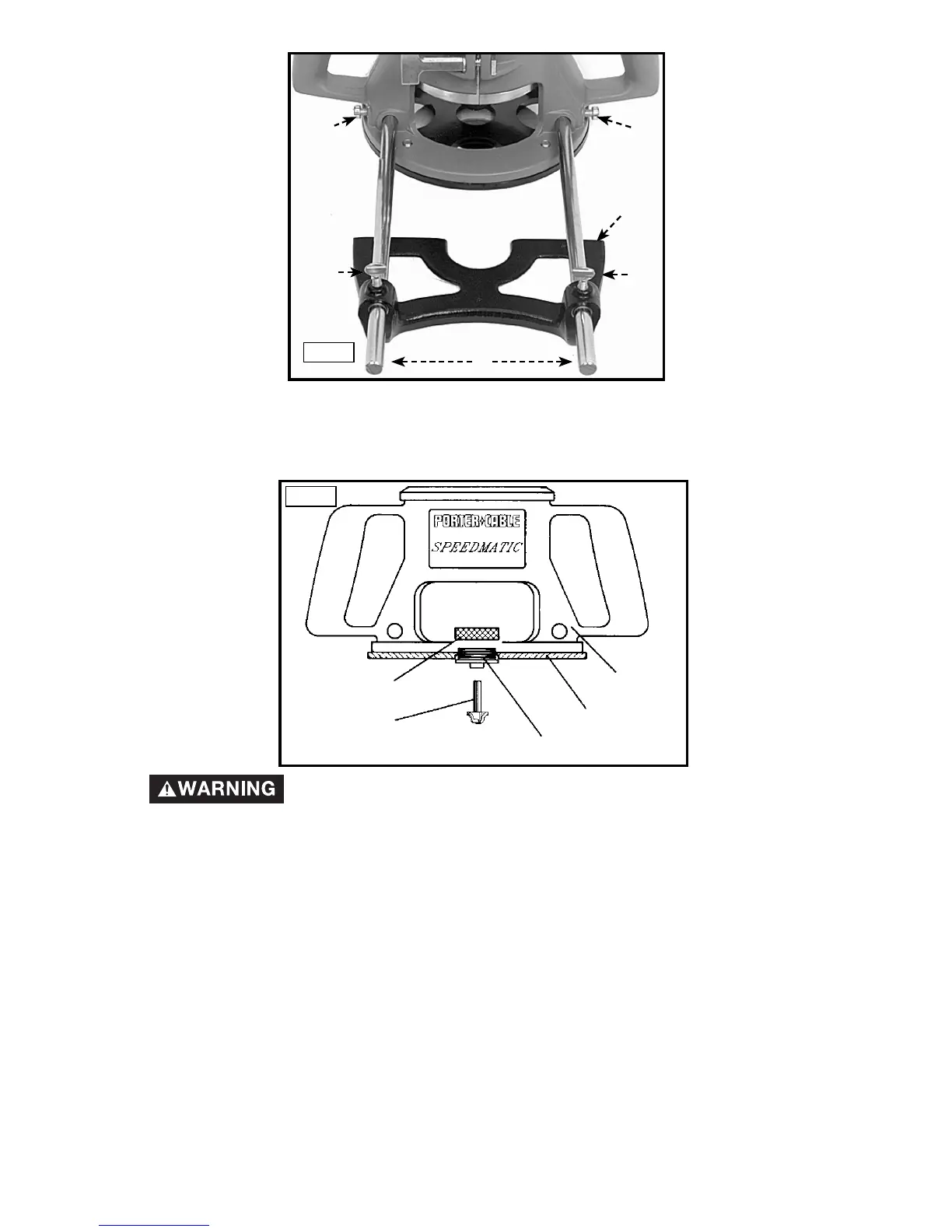

A wide variety of templet guides are available for use in pattern and templet
routing operations. Fig. 7 shows a typical combination bit, templet guide, and
locknut.
Disconnect the tool from the power source.
To install, insert templet guide in center hole in router base and secure in place
with the locknut.
NOTE: Before connecting the router to the power source, install, the bit, adjust
depth of cut, and rotate the router chuck by hand to be sure the bit or the collet
do not contact the templet guide.
B
B
DD
A
C
Fig. 6
LOCKNUT
ROUTER BIT
TEMPLET GUIDE
SUB-BASE
BASE
Fig. 7
