NOTE
CAUTION – DURING ASSEMBLY OF THIS BACKSTOP, IT IS OF EXTREME IMPORTANCE THAT THE
BACKBOARD IS NOT DROPPED, IMPROPERLY TORQUED (BOLTS TIGHTENED BEFORE PLUMBING ALL
ATTACHMENT POINTS), OR THE GLASS SECTION BE ALLOWED TO CONTACT OR STRIKE METAL PARTS.
THE WARRANTY DOES NOT COVER BREAKAGE DURING INSTALLATION.
1. Unpack and identify all parts (refer to Parts List on page 5).
2. Position the unpacked glass backboard (#1) on its cardboard packing carton in front of portable backstop frame assembly (#4).
Remove two 3/8" x 1-1/4" hex head cap screws, flatwashers, lockwashers and hex nuts from back of glass backboard.
3. Assemble two 3/8" x 3-1/2" carriage bolts with 3/8" flatwashers. Note – This hardware is packed with goal. Carefully lift
backboard (#1) and position so that upper goal mounting holes are in alignment with the corresponding holes on the backstop
mounting plate. See Detail “B”.
HARDWARE SUPPLIED WITH GOAL
ATTACHING GOAL TO BOARD.
FLATWASHERS NOT REQUIRED HERE WHEN
OF BOARD AS IN STEPS No. 3 AND 4.
BOARD ONLY DURING INITIAL MOUNTING
USE FLATWASHERS ON FRONT OF BACK-
3/8" x 1
1
4
" Lg. HEX HEAD CAP SCREW,
FLATWASHER, LOCKWASHER AND HEX NUT
SHIPPED ASSEMBLED TO BACKBOARD
THRU HOLES FOR
HEX HEAD CAP SCREWS
(AS IN STEP No. 5)

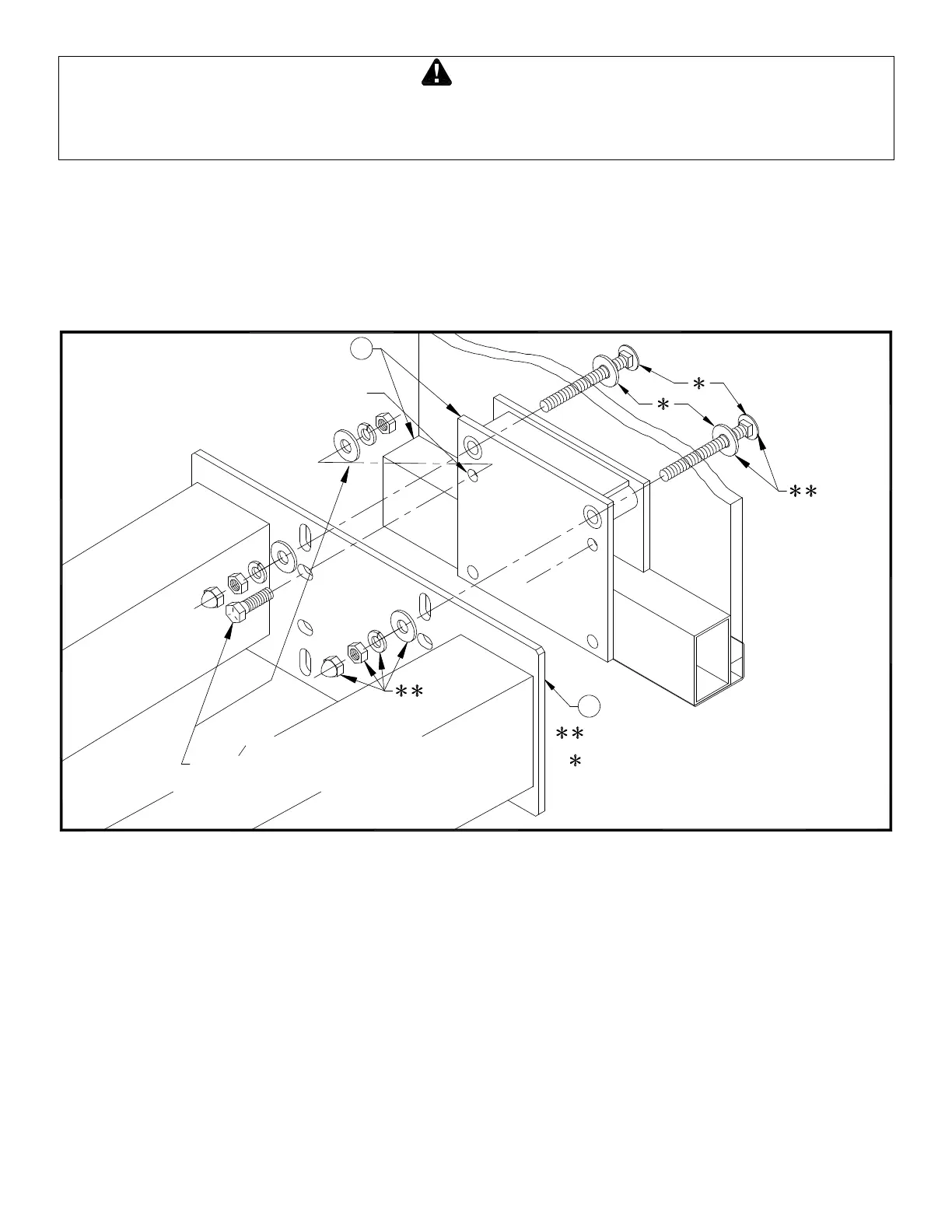

Detail "B"
4
1
4. Wh
ile backboard is in this position, insert the two (2) 3/8" x 3-1/2" carriage bolts with flatwashers from Step No. 3 through the
backboard and mounting plate on the backstop horizontal extension, secure in place with 3/8" hex nut, 3/8" lockwasher and 3/8"
flatwasher, snug tighten only.
5. Carefully shift backboard (pick one end up or down) to align slots shown in Detail “B” with the two (2) thru holes in the backside
of the backboard frame. Secure with the 3/8" hardware that was removed from the backboard in Step No. 2. Do not overtighten.
See Detail “B”.
6. Attach the two (2) hinge weldments (#6) into the slots in the upper corners of the glass backboard using four (4) 3/8" x 1-1/4"
long carriage bolts (#11), 3/8" hex nuts (#12), 3/8" flatwashers (#16) and 3/8" lockwashers (#14), finger tighten only (see Detail
“C”).
7
To Next Page
