PAGE 2 OF 2PRINTED IN USA
MKT. #8800001 - REV W
MFG. #5400761 - 7/02
VSR-F
VANE TYPE WATERFLOW
ALARM SWITCH WITH RETARD
NOTES:
1. The Model VSR-F has two
switches, one can be used to
operate a central station, pro-
prietary or remote signaling
unit, while the other contact is
used to operate a local audible
or visual annunciator.
2. A condition of LPC Approval of
this product is that the electri-
cal entry must be sealed to
exclude moisture.
3. For supervised circuits see
“Switch Terminal Connec-
tions” drawing and caution
note (Fig. 1).
SWITCH TERMINAL
CONNECTIONS
CLAMPING PLATE
TERMINAL
CAUTION:
An uninsulated section of a
single conductor should not
be looped around the termi-
nal and serve as two sepa-
rate connections. The wire
must be severed, thereby
providing supervision of the
connection in the event that
the wire becomes dislodged
from under the terminal.
TESTING
The frequency of inspection and testing for the model VSR-F and its associated protective monitoring system should be in
accordance with applicable NFPA Codes and Standards and/or the authority having jurisdiction (manufacturer recommends
quarterly or more frequently).
If provided, the inspector’s test valve, that is usually located at the end of the most remote branch line, should always be used for
test purposes. If there are no provisions for testing the operation of the flow detection device on the system, application of the
VSR-F is not recommended or advisable.
A minimum flow of 10 gpm (38 Lpm) is required to activate this device.
IMPORTANT NOTICE: Please advise the person responsible for testing of the fire protection system that this system must be
tested in accordance with the testing instructions.

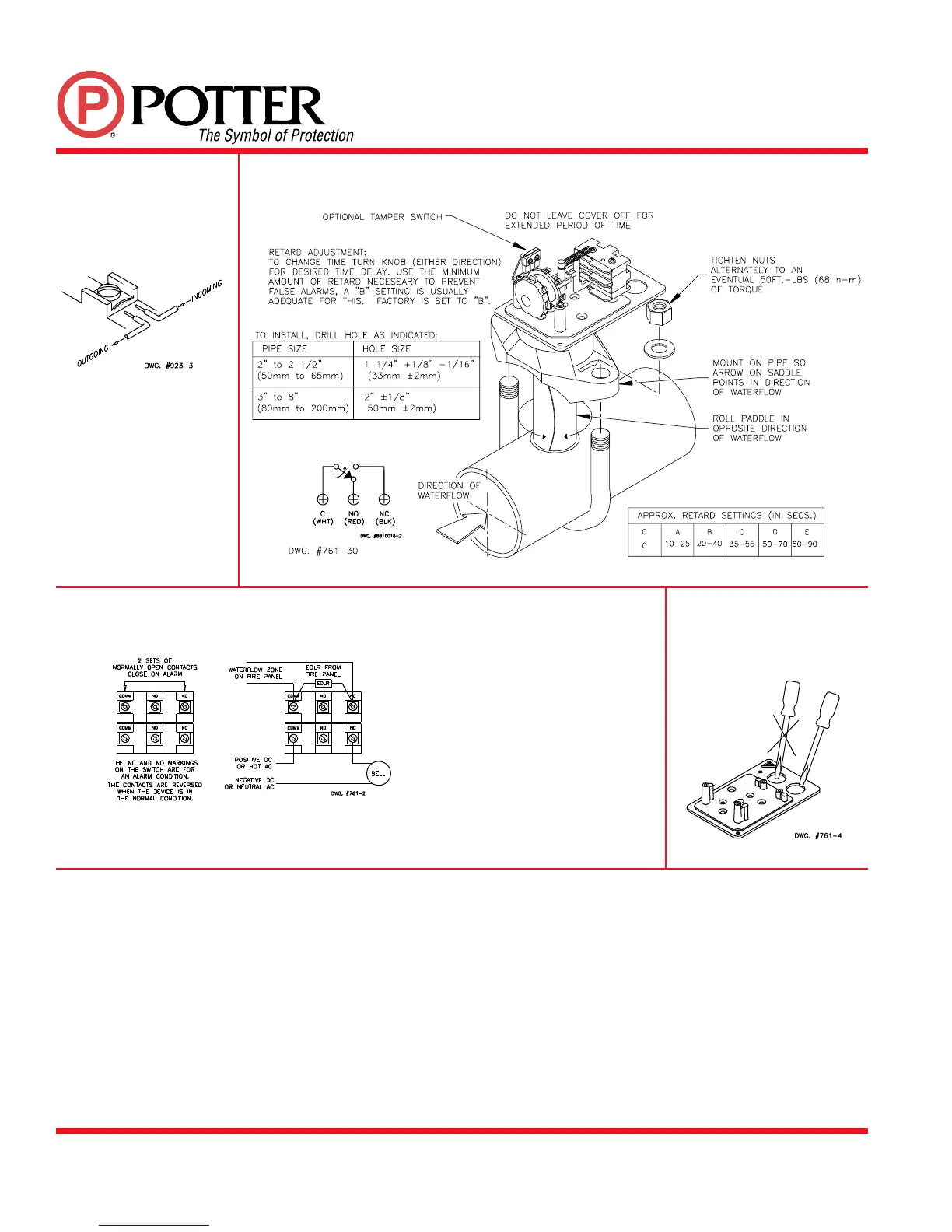

FIG. 1 FIG. 2
FIG. 3 TYPICAL ELECTRICAL CONNECTIONS
FIG. 4
To remove knockouts: Place
screwdriver at edge of knock-
outs, not in the center.
APPLICATION WARNING!
Due to the possibility of unintended discharges caused by pressure surges, trapped air, or short retard times, waterflow switches
that are monitoring wet pipe sprinkler systems should not be used as the sole initiating device to discharge AFFF, deluge, or
chemical suppression systems.
Cover Tamper
(with cover in place)
