IDENTIFICATION (WHAT IS WHAT?)
NOTE: The appearance of your product may vary from the item shown.
(*) = Configuration for models equipped with chain tensioning screw located on front. Does not apply to all
models.
(**) = Configuration for models equipped with chain tensioning screw located on side. Does not apply to all
models.

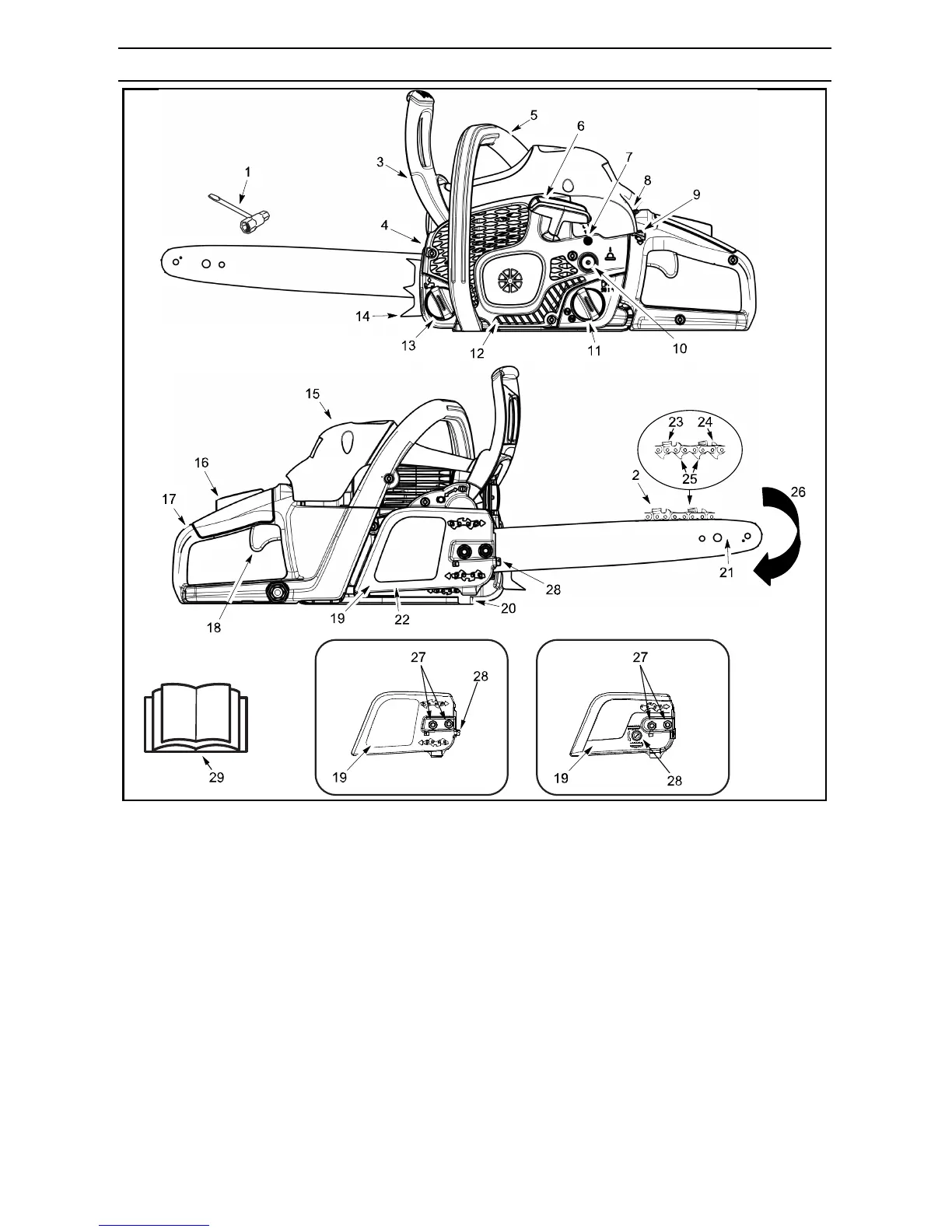

1. Combination tool
2. Chain
3. Front hand guard
4. Muffler
5. Front handle
6. Starter rope
7. Idle speed screw
8. ON/STOP switch
9. Choke/fast idle lever
10. Primer (air purge) bulb
11. Fuel mix fill cap
12. Starter housing
13. Bar and chain oil fill cap
14. Bumper spike
15. Cylinder cover
16. Throttle lock-out
17. Rear handle
18. Throttle trigger
19. Clutch cover
20. Chain catcher
21. Guide bar
22. Chain brake
23. Cutters
24. Depth gauge
25. Drive links
26. Chain direction of travel
27. Guide bar retaining nuts
28. Chain tensioning screw
29. Manual
(*)
(**)
