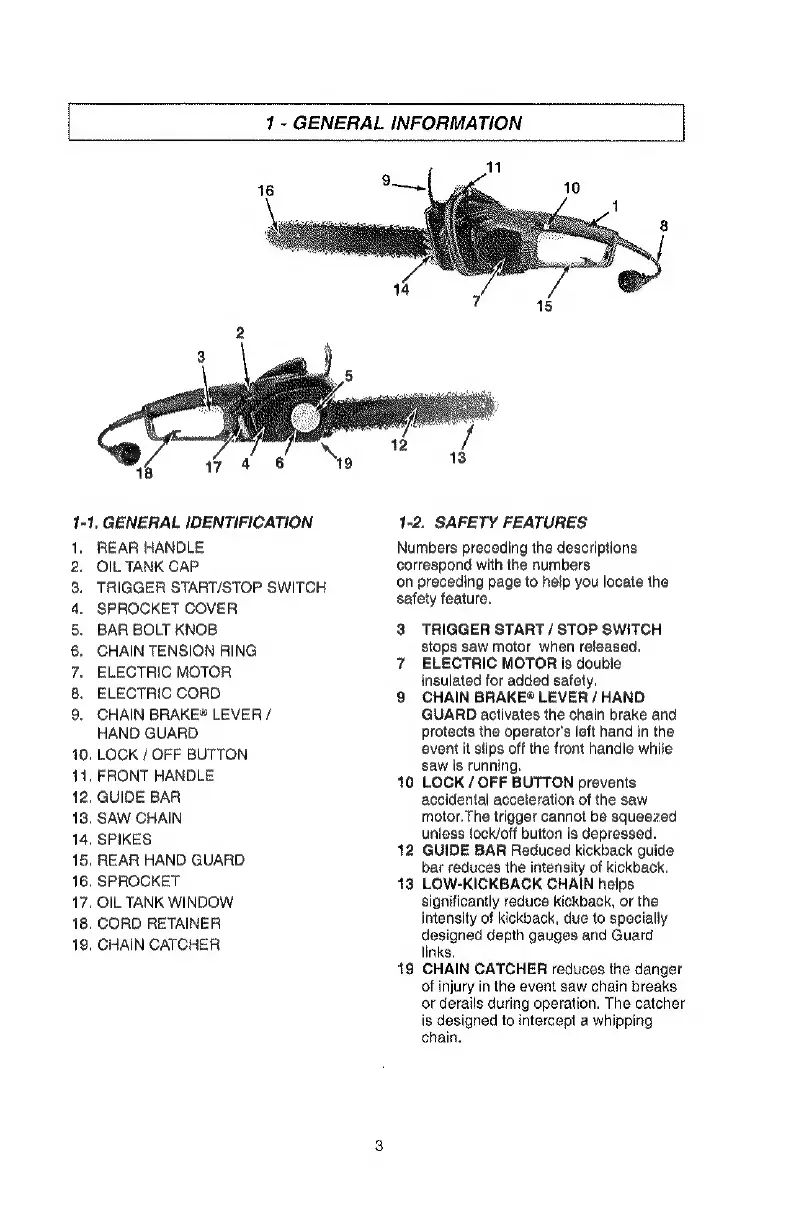

1 - GENERAL INFORMATION
11
18
1-1, GENERAL IDENTIFICATION 1-2. SAFETY FEATURES
1, REAR HANDLE Numbers preceding the descriptions
2. OIL TANK CAP correspond with the numbers
3, TRIGGER START/STOP SWITCH on preceding page to help you locate ihe
safety feature.
4. SPROCKET COVER
5. BAR BOLT KNOB 3 TRIGGER START / STOP SWITCH
6. CHAIN TENSION RING stops saw motor when released,
7. ELECTRIC MOTOR 7 ELECTRIC MOTOR is double
A insulated for added safety.
8. ELECTRIC CORD 9 CHAIN BRAKE® LEVER / HAND
9. CHAIN BRAKE® LEVER / GUARD activates the chain brake and
HAND GUARD protects the operator's left hand in the
10. LOCK / OFF BUTTON event it slips off the front handle while
saw Is running.
11, FRONT HANDLE 10 LOCK / OFF BUTTON prevents
12. GUIDE BAR accidental acceleration of the saw
13. SAW CHAIN motor. The trigger cannot be squeezed
14, SPIKES unless tock/off button is depressed.
12 GUIDE BAR Reduced kickback guide
15, REAR HAND GUARD bar reduces the intensity of kickback,
16. SPROCKET 13 LOW-KICKBACK CHAIN helps
17. OIL TANK WINDOW significantly reduce kickback, or the
18. CORD RETAINER intensity of kickback, due to specially
designed depth gauges and Guard
19.
CHAIN
CATCHER
links.
19 CHAIN CATCHER reduces the danger
of injury in the event saw chain breaks
or derails during operation. The catcher
is designed to intercept a whipping
chain.
