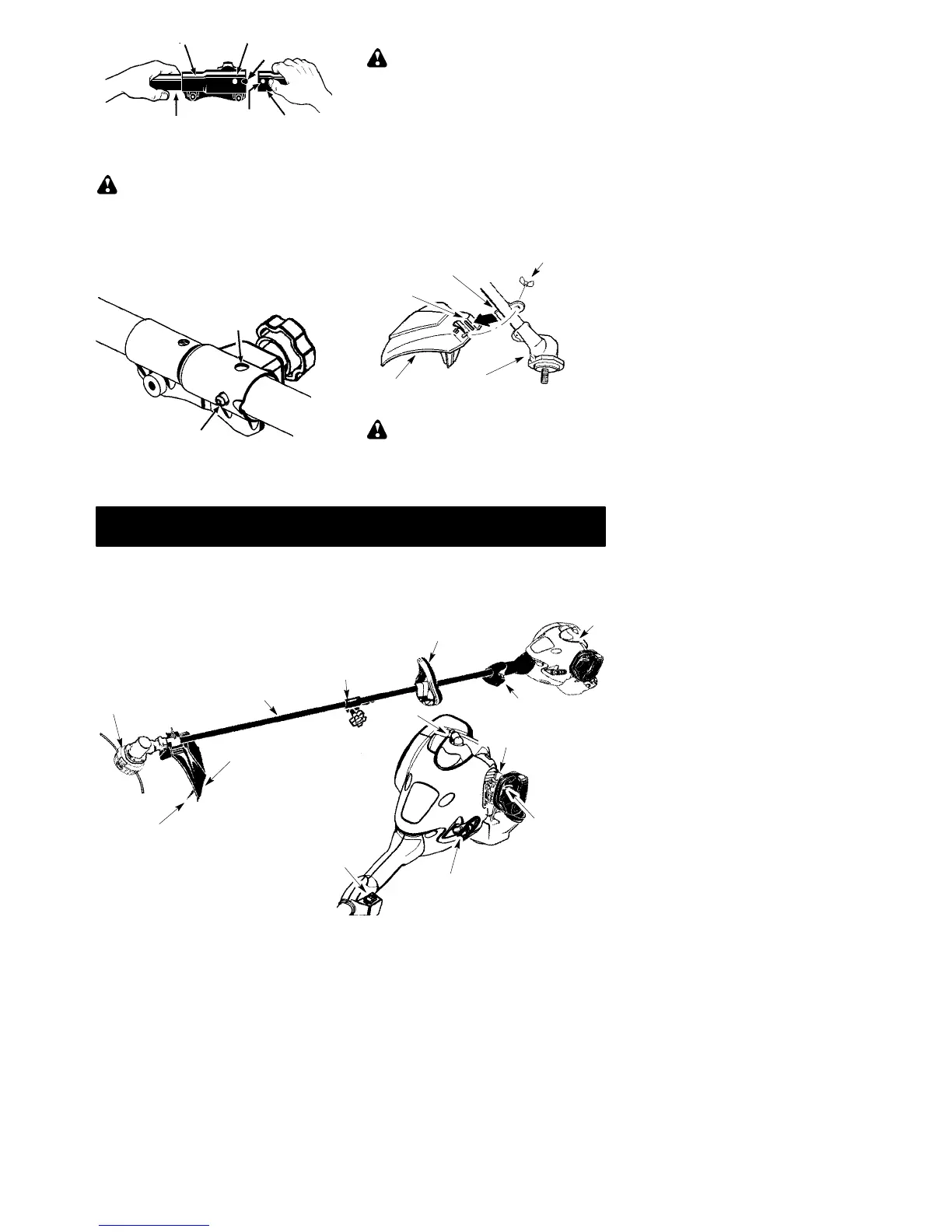

7
Coupler Primary Hole
Upper
Shaft
Locking/
Release
Button
Lower
Attachment
Guide Recess
WARNING: M ake sure the locking/
release button is locked in the primary hole
and the knob is securely tightened before op-
erating the unit. All at tach men ts are designed
to be used in the primary hole unless otherwise
stated in the applicable attachment instruction
manual. Using the wrong hole could lead to seri-
ous injury or damage to the unit.
Locking/Release
Button in Primary Hole
Secondary Hole
For option al attachmen ts, see the ASSEMBLY
section of the applicable attachment instruction
manual.
ATTACHING THE SHIELD
WARNING: The shield must be prop-
erly installed. The shield provides partial protec-
tion from the risk of thrown objects to the opera-
tor and others and is equipped with a line limiter
blade which cuts excess line to the proper
length. The line limiter blade (on underside of
shield) is sharp and can cut you.
For proper orientation of shield, see KNOW
YOUR TRIMMER illustration i n OPERA TION
se cti on.
1. Remove wing nut from shield.
2. Insert bracket into slot as shown.
3. Pivot shield until bolt passes through hole in
bracket.
4. Securely tighten wing nut onto bolt.
Wing Nut
Bracket
Slot
Shield
Gearbox
ADJUSTING THE HANDLE
WARNING: When adjusting the han-
dle, be sure it remains above the safety label
and below the mark or arrow on the shaft.
1. Loosen wing nut on handle.
2. Rotate the handle on the shaft to an up-
right position; retighten wing nut.
OPERATION
KNOW YOUR UNIT
READ THIS INSTRUCTION M ANUAL AND SAFETY RULES BEFORE OPERA TING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
Line Limiter
Blade
Primer Bulb
Assist Handle
Throttle Trigger
Start
Lever
Spark
Plug
Shield
Trimmer
Head
Shaft
Muffler
ON/OFF Switch
Coupler
Starter handle
