REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR621 (96182000303)

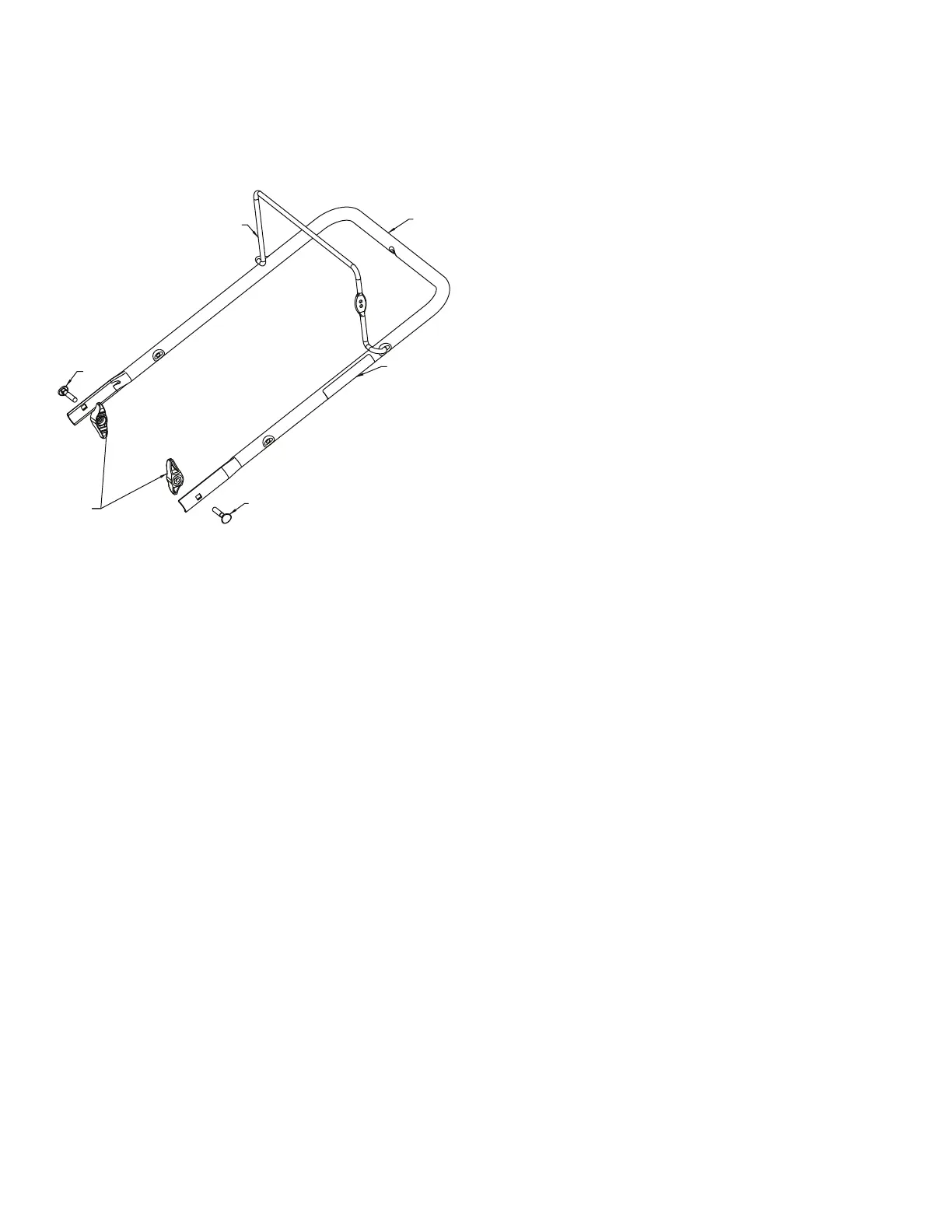

HANDLE ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
3
3
4
5
06.07.001-A
1 580 85 70-01 UPPER HANDLE
2 580 86 04-01 BAIL
3 532 19 15-74 HANDLE BOLT
4 532 19 19-38 WING KNOB
5 532 43 75-06 AUGER CONTROL DECAL
To Next Page
