19
KEY PART
NO. NO. DESCRIPTION
19 19131611 Washer 13/32 x 1 x 11 Ga.
20 109228X Lever, Lock, Handle
21 150256X428 Handle
23 86777 Screw, Hex Washer Hd. Slotted
24 9484R Clip
26 159231 Cable, Clutch #10-24 x 1/2
27 73900400 Nut Hexflange 1/4-20 UNC
29 73731000 Nut, Keps #10-24 UNC
30 104164X Tie, Cable
31 150696 Bolt, Pivot
33 72140404 Bolt, Carriage 1/4-20 UNC x 1/2
37 102604X Grip, Bar, Control
41 102744X Clamp, Bar, Control
KEY PART
NO. NO. DESCRIPTION
1 175250 Control, Throttle
2 9266R Grip, Handle
4 159228 Bar Assembly, Control
6 126951X Panel, Control
8 71191008 Screw, Phd. #10-24
10 8206H Grip, Handle
11 4497H Clip, Hairpin
12 81328 Bolt, Shoulder
13 109335X Handle, Shift
14 109313X Grommet, Rubber
15 109337X Rod, Shift
16 72110608 Bolt, Carriage 3/8-16 x 1 Gr. 5
17 109229X Lock, Handle
18 73680600 Nut Crownlock 3/8-16 UNC
REPAIR PARTS
TILLER - MODEL NUMBER PRRT65A

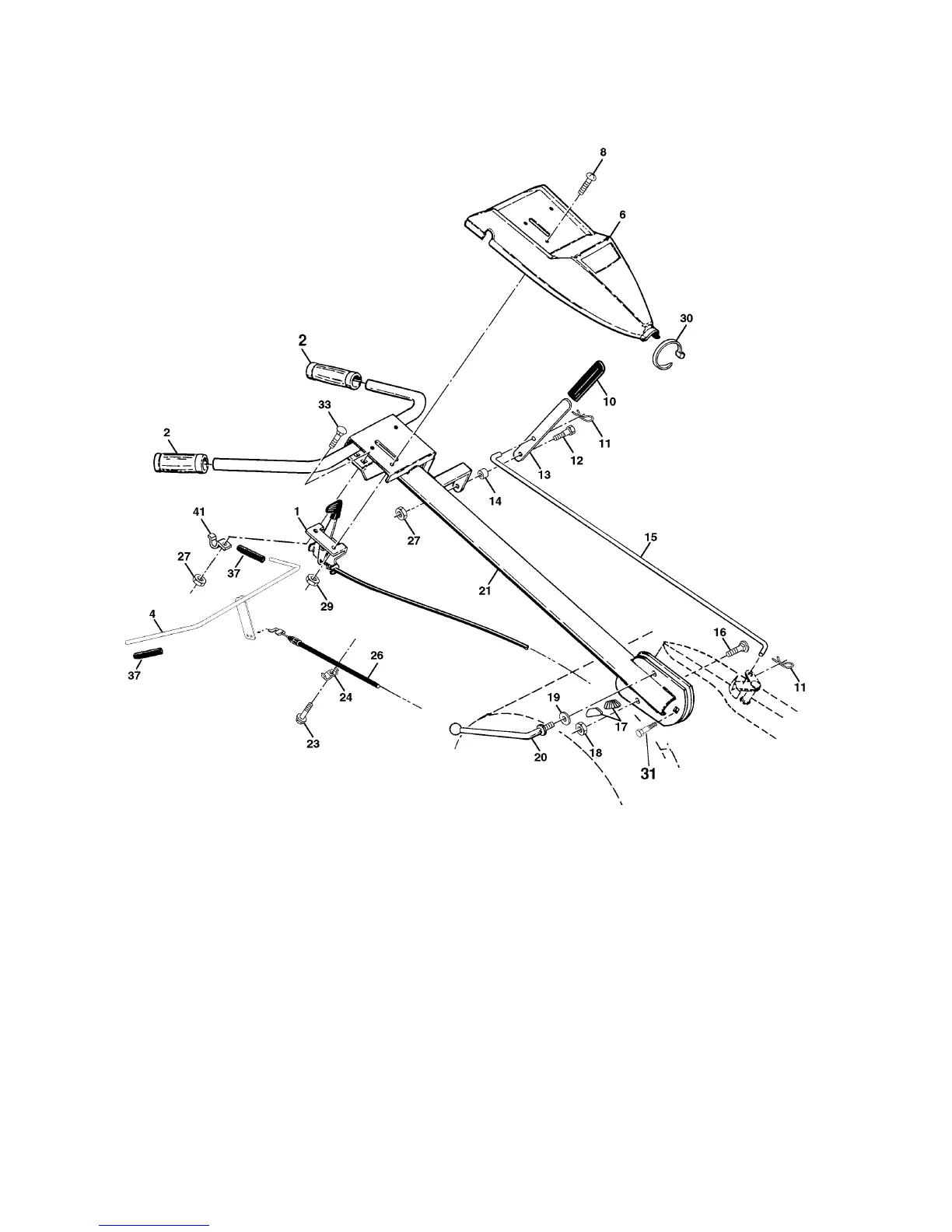

HANDLE ASSEMBLY
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
