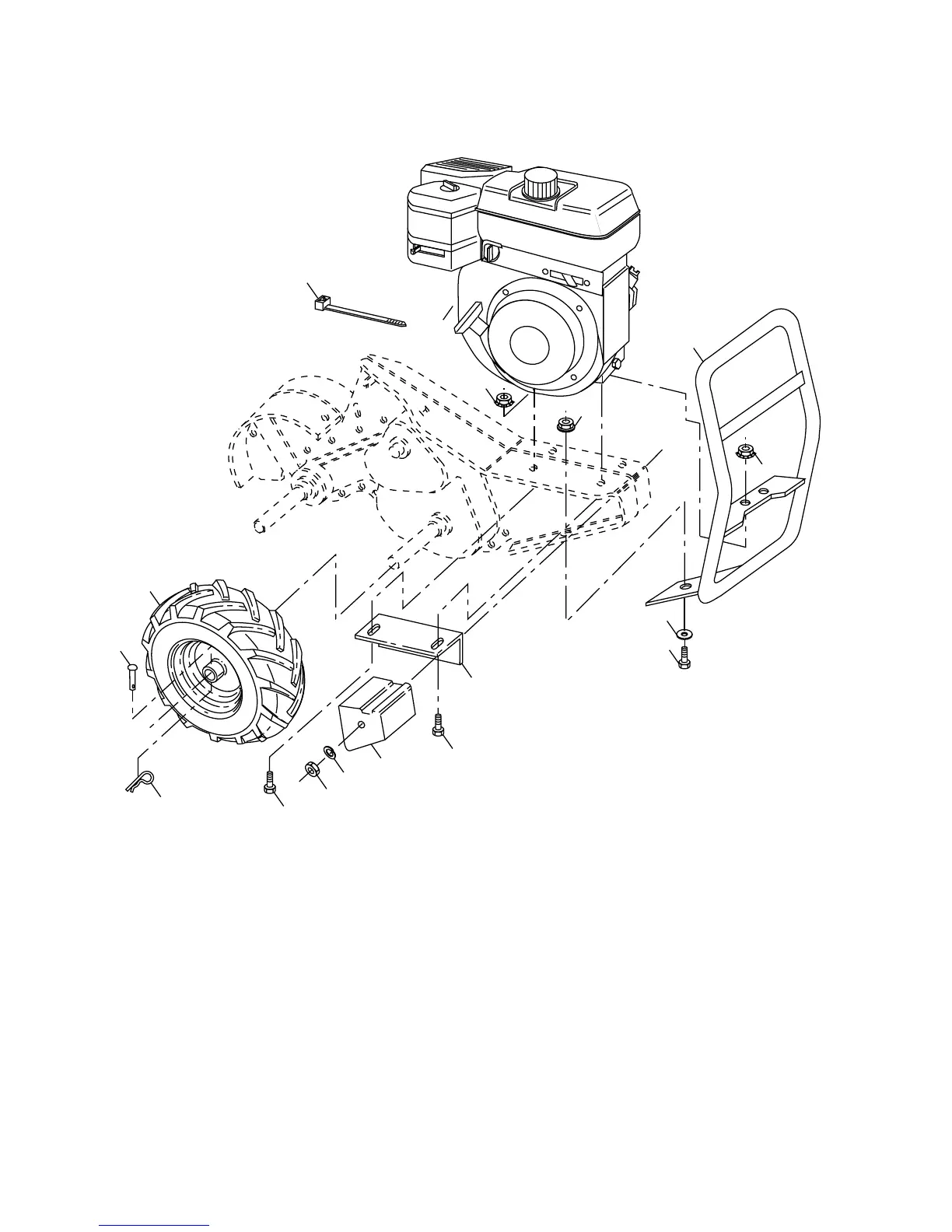

REPAIR PARTS
TILLER - MODEL NUMBER PRRT65A
MAINFRAME, RIGHT SIDE
KEY PART
NO. NO. DESCRIPTION
12 126875X Rivet, Drilled
13 5015J Tire
127259X Rim
795R Tire Valve
15 - - - - - - - - Engine Briggs Model 121402
(Order parts from engine
Manufacturer)
16 7192J Tie, Cable
5
6
7
8
9
11
12
13
15
2
2
3
1
4
10
2
16
KEY PART
NO. NO. DESCRIPTION
1 166532 Bumper
2 73970500 Locknut, Hex, Flange 5/16-18
3 19111116 Washer 11/32 x 11/16 x 16 Ga.
4 74760512 Bolt, Hex 5/16-18 x 3/4
5 102332X Bracket, Reinforcement
6 74760532 Bolt, Hex 5/16-18 x 2
7 102173X Counter Weight, R.H.
8 10040600 Washer, Lock 3/8
9 73220600 Nut, Hex 3/8-16
10 74760524 Bolt, Hex 5/16-18 x 1-1/2
11 4497H Clip, Hairpin
NOTE: All component dimensions given in U.S.inches.
1 inch = 25.4 mm
