（1） （2） （3）

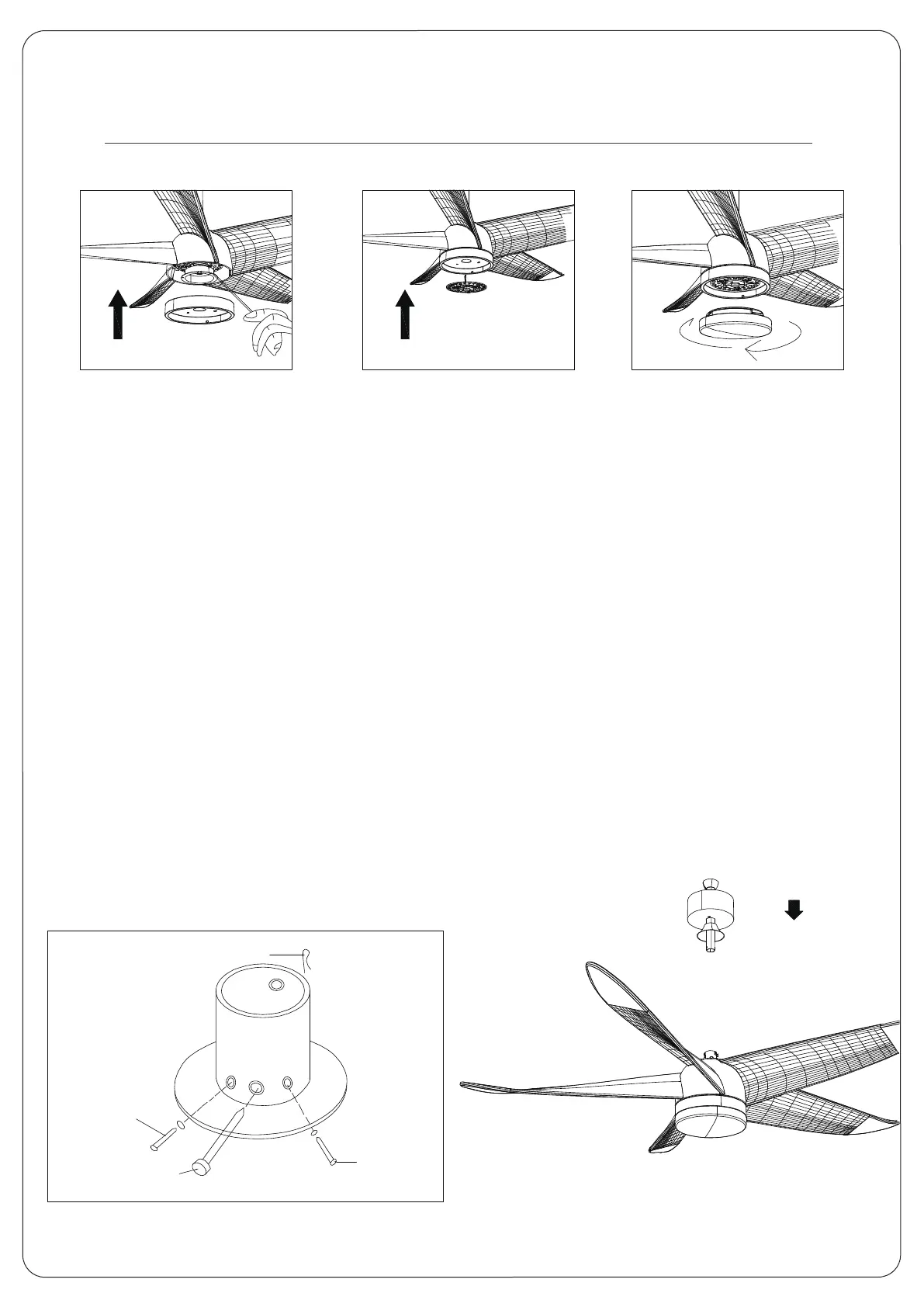

1) To select the correct downrod,either 5 inch or 10 inch according to the
ceiling height.Put the canopy and decorative cover through the downrod;
2) Remove the locking pin and the long pin. then remove the two downrod set screws;
3) Fix the downrod set into the fan body,lock the downrod to the fan body with set screws.
4) Mount the bracket onto outlet box by the screws,spring washers and flat washers.
5) Hang the ball joint and the fan onto the bracket,make sure the guide pin of the
bracket is fitted into slot of ball joint.
6) Insert the remote control receiver between the bracket and the downrod.
7) Connect wires from supply and the bracket to the wiring terminals.
8) Attached canopy to the bracket by aligning canopy holes with the bracket holes
.Fix the canopy to bracket with set screws.
9) Install the blade brackets and blades with screws.
5. Installation of downrod,canopy and decorative
cover Selection of downrod
Locking pin
Downrod
setscrew
Downrod
setscrew
Pin
To Next Page
