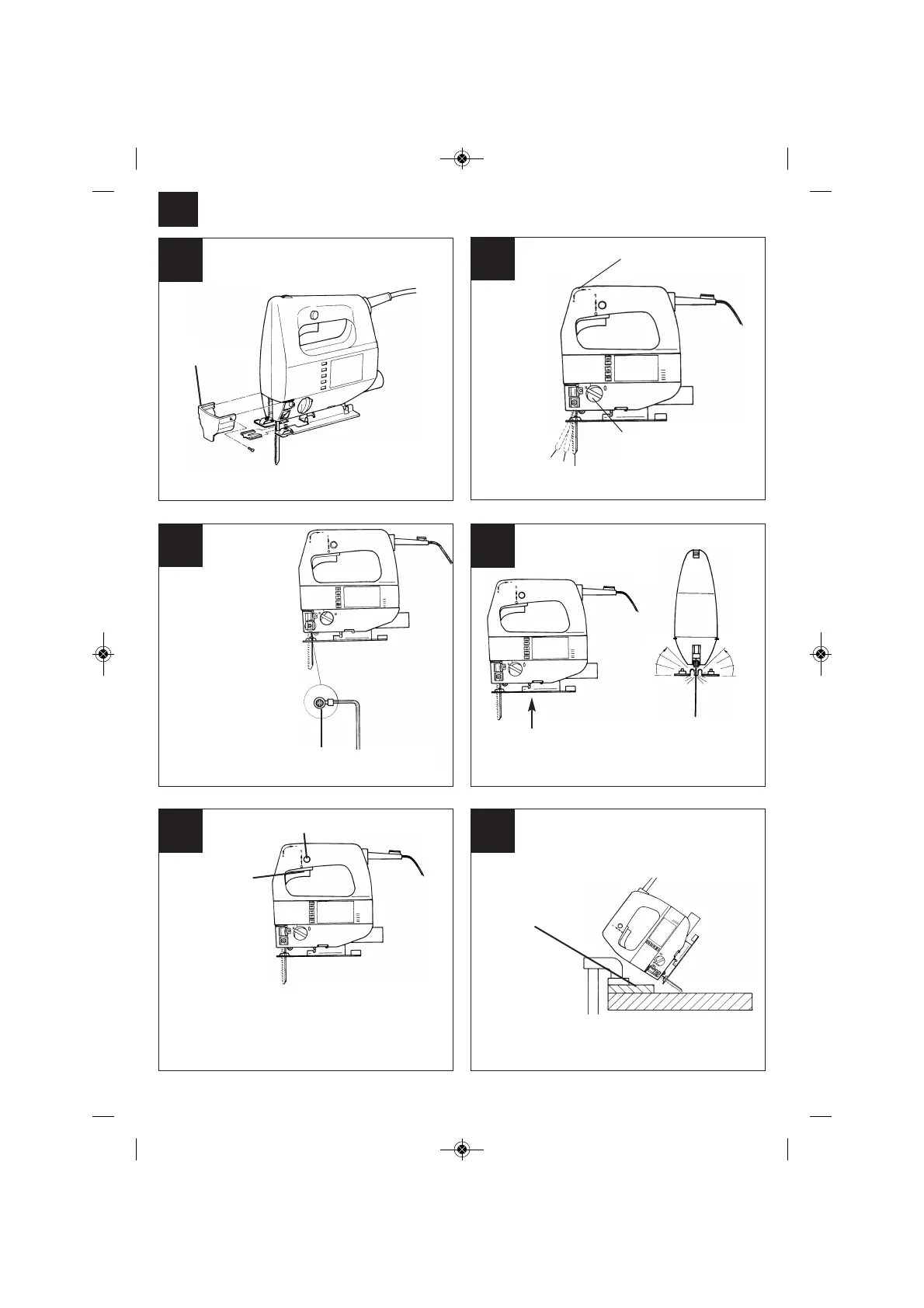

Fitting the inspection guard
Inspection guard
Important! Wear goggles!
Changing the
saw blade
Releasing the saw blade:
Turn screws anticlockwise.
Locking button
On/Off switch
Insert the saw blade in
the ram up to the stop
and tighten the two
screws of the retention
clip.
Important: Make sure
that the saw blade sits
properly in the slot of
the roller and ram.
Switching on: Press the On/Off switch
Continuous operation: Lock the On/Off switch with the
locking button
Switching off: Press the On/Off switch
and release
Undo the two screws to set the base to an angle of up to
45° on the right or left side.
Cutting holes: Not possible in chipboard and wood unless
you drill a hole first. Press the jigsaw firmly against the
support and move slowly in cutting direction.
Cutting veneered chipboard:
1. Use a fine saw blade
2. Position the base on the uncovered area
3. Advance the saw with little force
Support
45°
30°
45°
15°
0°
30°
15°
0°
4
Turn the speed controller to increase the cutting rate
0 = no pendulum; used for thin
workpiece
1 = low pendulum; used for
thicker workpiece
2 = high pendulum; used for
fast cutting
2
1
0
