13
GB
4
GB

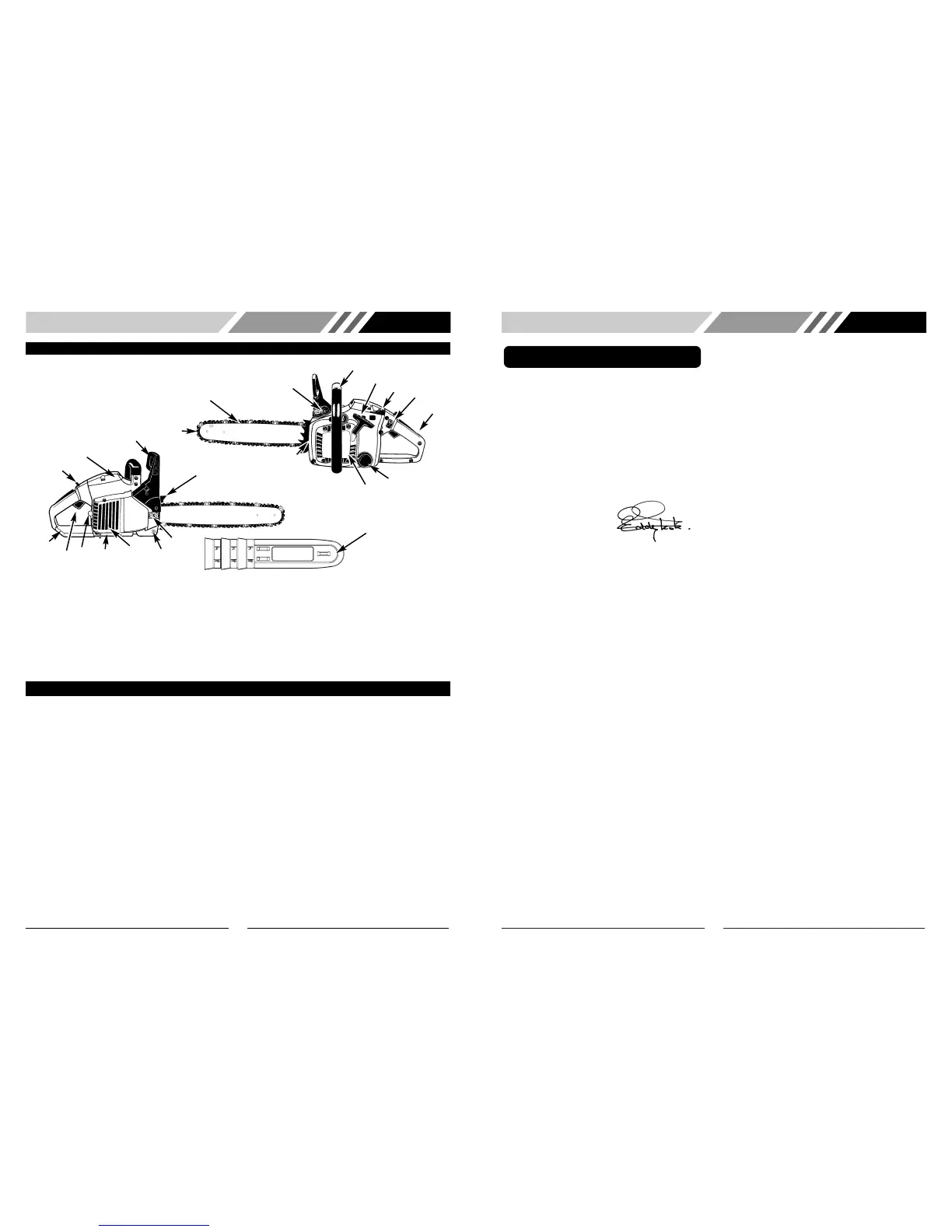

1. Guide Bar
2. Saw chain
3. Saw Chain Adjustment Screw
4. Spark Arrester Screen
5. Chain Brake Lever / Hand
Guard
6. Front Handle
7. Starter Handle
8. Spark Plug
9. Air Cleaner Cover
10. Stop Switch
11. Safety Trigger
12. Oil Tank cap
13. Starter Cover
14. Fuel Tank Cap
15. Rear Handle / Boot Loop
16. Throttle Latch
17. Chock Lever
18. Bar Retaining Nuts
19. Throttle Trigger
20. Chain Catcher
21. Muffler Shield / Clutch Cover
22. Spiked bumper
23. Guide Bar Cover
GENERAL INFORMATION
3
2
10
6
7
17
11
12
13
14
1
9
16
15
19
8
21
4
20
18
2 LOW KICKBACK SAW CHAIN helps significantly
reduce kickback, or the intensity of kickback, due to
specially designed depth gauges and guard links.
4SPARK ARRESTER SCREEN retains carbon and
other flammable particles over 0.023 inches (0.6mm)
in size from engine exhaust flow. Compliance with
local, state and federal laws and/or regulations gov-
erning the use of a spark arrester screen is the user’s
responsibility. See Safety Precautions for additional
information.
5 CHAIN BRAKE LEVER / HAND GUARD protects the
operator’s left hand in the event it slips off the front
handle while saw is running.
5 CHAIN BRAKE is a safety feature designed to
reduce the possibility of injury due to kickback by
stopping a moving saw chain in milliseconds. It is
activated by the CHAIN BRAKE lever.
10 STOP SWITCH immediately stops the engine when
tripped. Stop switch must be pushed to ON position
to start or restart engine.
11 SAFETY TRIGGER prevents accidental acceleration
of the engine. Throttle trigger (19) cannot be
squeezed unless the safety latch is depressed.
20 CHAIN CATCHER reduces the danger of injury in
the event saw chain breaks or derails during
operation. The chain catcher is designed to intercept
a whipping chain.
21 MUFFLER SHIELD / CLUTCH COVER helps pre-
vent hands and combustible materials from making
contact with a hot muffler.
22 SPIKED BUMPERThe spiked bumper is used for
your personal safety and ease of cutting. Spiked
bumper will increase your stability while performing
vertical cutting.
NOTE: Study your saw and be familiar with its parts.
SAFETY FEATURES
Familiarise yourself with all the safety features before use. Numbers preceding the descriptions correspond with the
numbers on preceding page to help you locate the safety feature.
22
23
5
We declare under our sole responsability that this
product is in conformity with the following
standards or standardized documents
EN ISO 11681-1:2004
in accordance with the regulations.
98/37/EEC
89/336/EEC
2000/14/EC
from 01-04-2004
Oststrasse 11 - 13
50996 KÖLN BRD
E.Kok
Quality department
CE
ı
DECLARATION OF CONFORMITY
(
UK
)
