Before You Begin
Familiarize yourself with the steps in this guide and read the safety
precautions presented on the “Installation Considerations” page.
DANGER
Do not power up the meter until the current and voltage wiring is completed.
Recommended Tools
#1 and #2 Phillips screwdrivers
Precision flat-head screwdriver
Wire cutters / stripper

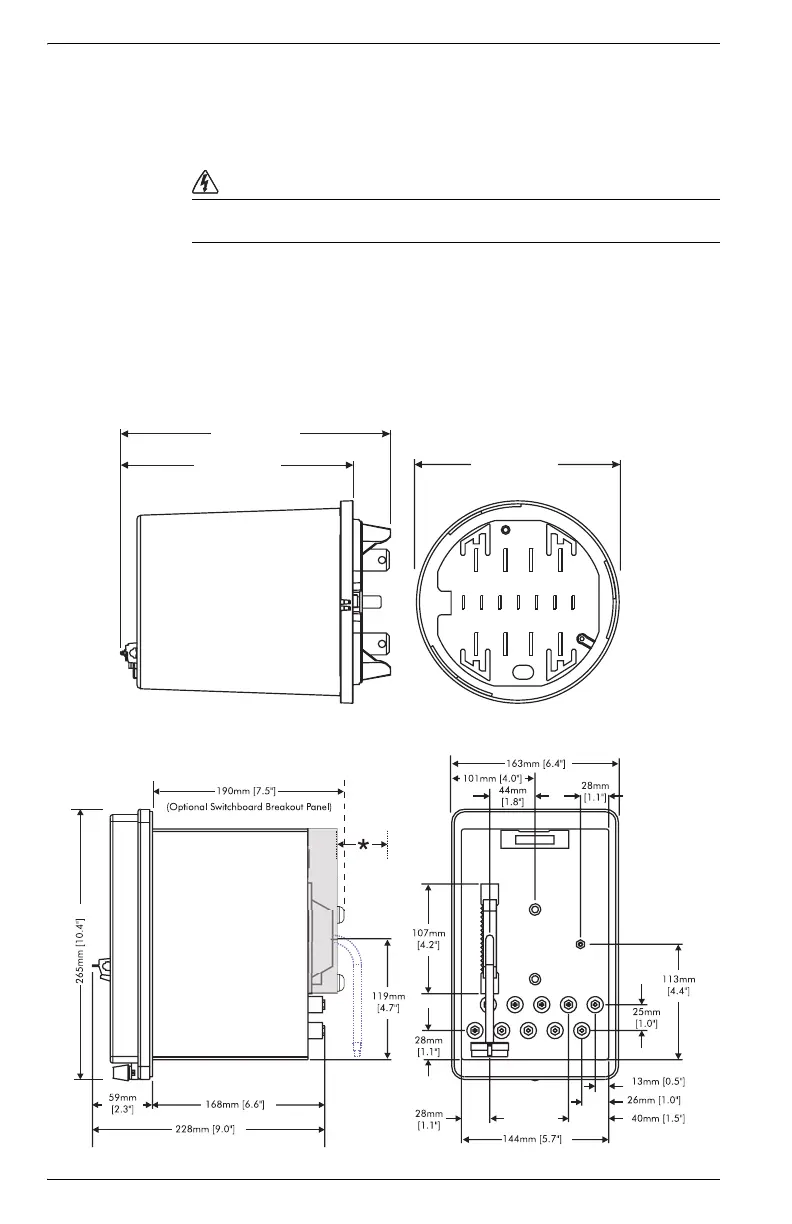

Socket Meter Dimensions
Switchboard Meter Dimensions
204 mm (8.1")
237 mm ( )9.3"
176 mm (6.9")
Side
Rear
Side
Rear
* Remember to allow
for extra clearance to
accommodate your
communications
connectors.
To Next Page
