Power-Pole Blade Installation Manual

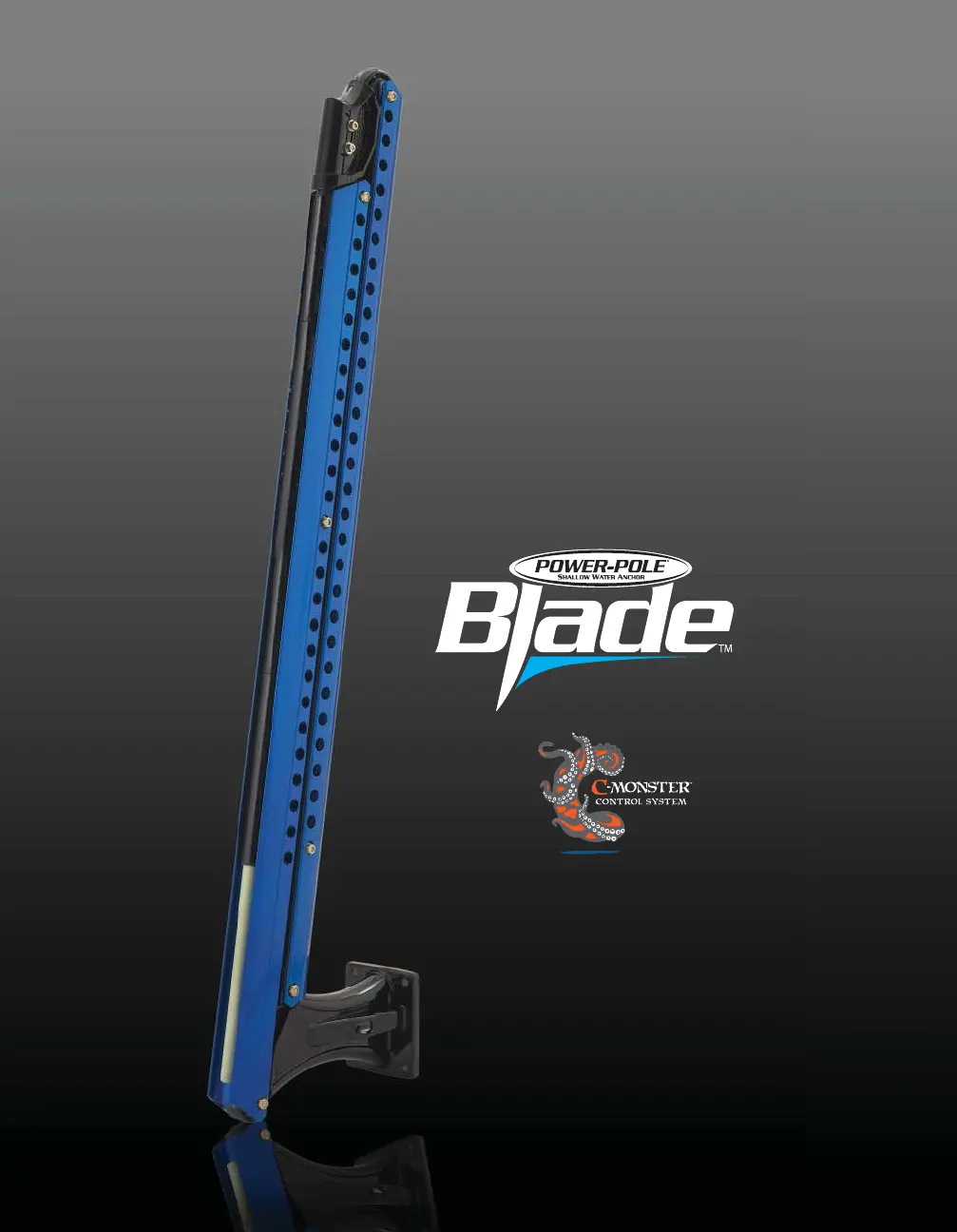

CONGRATULATIONS on your purchase of a
Power-Pole Blade Edition shallow water anchor
featuring C-Monster Control System. It has been
designed, engineered, and manufactured to
provide the best possible performance and
dependability for years of enjoyment.
Please read all installation instructions carefully.
The information contained here describes the proper
procedures for safely installing your
Power-Pole shallow water anchor.
CAUTION:
Do not use the Power-Pole shallow water anchor
as your primary anchorage. Never leave your
boat unattended while anchored solely with the
Power-Pole shallow water anchor.
INSTALLATION MANUAL
Power-Pole
®
Blade Edition
Shallow Water Anchor
Installation Instructions
CAUTION: Read this instruction manual carefully. Become
familiar with the controls and know how to operate the Power-
Pole
shallow water anchor system safely.
US Pat No. 6,041,730
9010 Palm River Road, Tampa, Florida 33619
Phone 813-689-9932 Fax 813-689-8883
www.power-pole.com
Step 1: Choose a Mounting Location
Transom mounting
VERTICAL POSITIONING
1. Place a straight edge on the bottom of the hull directly
below and centered from the desired mounting
location. The lowest point of the Power-Pole anchor
must be at least 4” above this straight edge.
NOTE: If the Power-Pole anchor is mounted lower than
the 4” minimum, the vessel may experience adverse
handling effects. (Figure #1)
CLEARANCE
1. If the vessel is equipped with trim tabs that measure 9”
or less in length, the standard 4” minimum mounting
height will be sufficient. If the trim tabs are larger than
9”, the Power-Pole anchor will need to be mounted
higher up on the transom to prevent interference.
2. While holding the Power-Pole anchor in place, turn
and tilt the motor as far as possible toward the unit.
With the motor turned toward the unit, manually move
the anchor through its entire range of motion to verify
clearance.
3. Once clearance has been verified on the exterior
portion of the vessel, check for adequate space on the
inside of the transom mounting area. Make sure that
the bolts will not have any obstructions, and that you
will have space to tighten the 5/16” tall brass nuts
D
.
Adapter plate mounting
1. Please contact one of our authorized dealers or
visit power-pole.com and click on “Find your
Adapter Plate.” For technical support call
(813) 689-9932 option 2
Installation Tools & Hardware
Installation Tools
• 1/2” & 9/16” wrenches
• 1/2” & 9/16” sockets with ratchet
• Electric or battery operated drill
• 7/64”, 9/64”, 11/32”, 5/16” & 1/8” drill bits
• #2 Phillips-head bit or screwdriver
• Small slotted (flat-headed) screwdriver
• Heat gun
• 4’ foot straight edge
• Marine grade sealant
• Fine point marker
• Tape measure
• Wire cutters
• Wire strippers
• Wire terminal crimpers
• Razor tubing cutter or utility razor blade
• Small funnel
Installation Hardware
Qty(4) 5/16” x 3.5” all-thread transom mount bolts
Qty(4) 5/16” neo-bond washers
Qty(4) 5/16” fender washers
Qty(4) 5/16” tall brass nuts
Qty(2) 3/8” x 3/4” bolts
Qty(2) 3/8” neo-bond washers
Qty(2) #8 x 3/4” flat head screws
Qty(4) #10 x 3/4” pan head screws
Qty(1) rubber pump gasket
Qty(2) ring connectors
Qty(2) thru-hull bushings
Qty(3) marine cable ties
Qty(1) 5’ black mesh tubing cover
Qty(1) adhesive strip
J
K
A
B
C
D
E
F
G
H
i
L
M
N
Step 9: Installing the Dash Switch
1. Locate a suitable area with a flat surface to mount the
dash switch.
2. Mark and drill a pilot hole with 1/8” drill bit to fasten
switch using the (2) screws
G
supplied (do not over
tighten). Or you may choose to use adhesive strip
N
also supplied.
Need help? Contact our Technical Support Team at
813.689.9932 option 2
©2014 all rights reserved. Power-Pole Shallow Water Anchor U.S. Patent No. 6,041,730
4”
Figure 1
L
K
A
B
C
D
E
J
i
F
G
H
M
N
G
G
man-install-rev062014

Power-Pole Blade Specifications

General

Type	Shallow water anchor
Deployment Depth	8 ft
Control	Wireless remote
Color	Black
Usage	Saltwater and freshwater
