C-MONSTER
Wireless Controller Battery
Replacement Instructions
continued
Standard Foot Switch
STEP 1
Remove the (3) screws with a #2 hillips head screwdriver.
STEP 2
Separate the foot switch cover from its base using a small slotted flat head
screwdriver. FIG. 1
STEP 3
Remove the rubber switch membrane and the circuit board from the foot
switch base. FIG. 2
STEP 4
Remove the battery from the holder on the back of the circuit board and
replace with any CR2032 3V Lithium Coin Battery.
STEP 5
Place the circuit board back into its base with circuit board level and small
black caps placed over each circuit board button. FIG. 3
NOTE:
Each small black cap when pressed should push down and
come up when released. If the black cap does not push down
remove black cap and rotate 1 quarter turn and reinstall.
STEP 6
Install rubber switch membrane back into the foot switch base and ensure
that the rubber switch membrane is seated properly prior to installing the
cover. FIG. 4

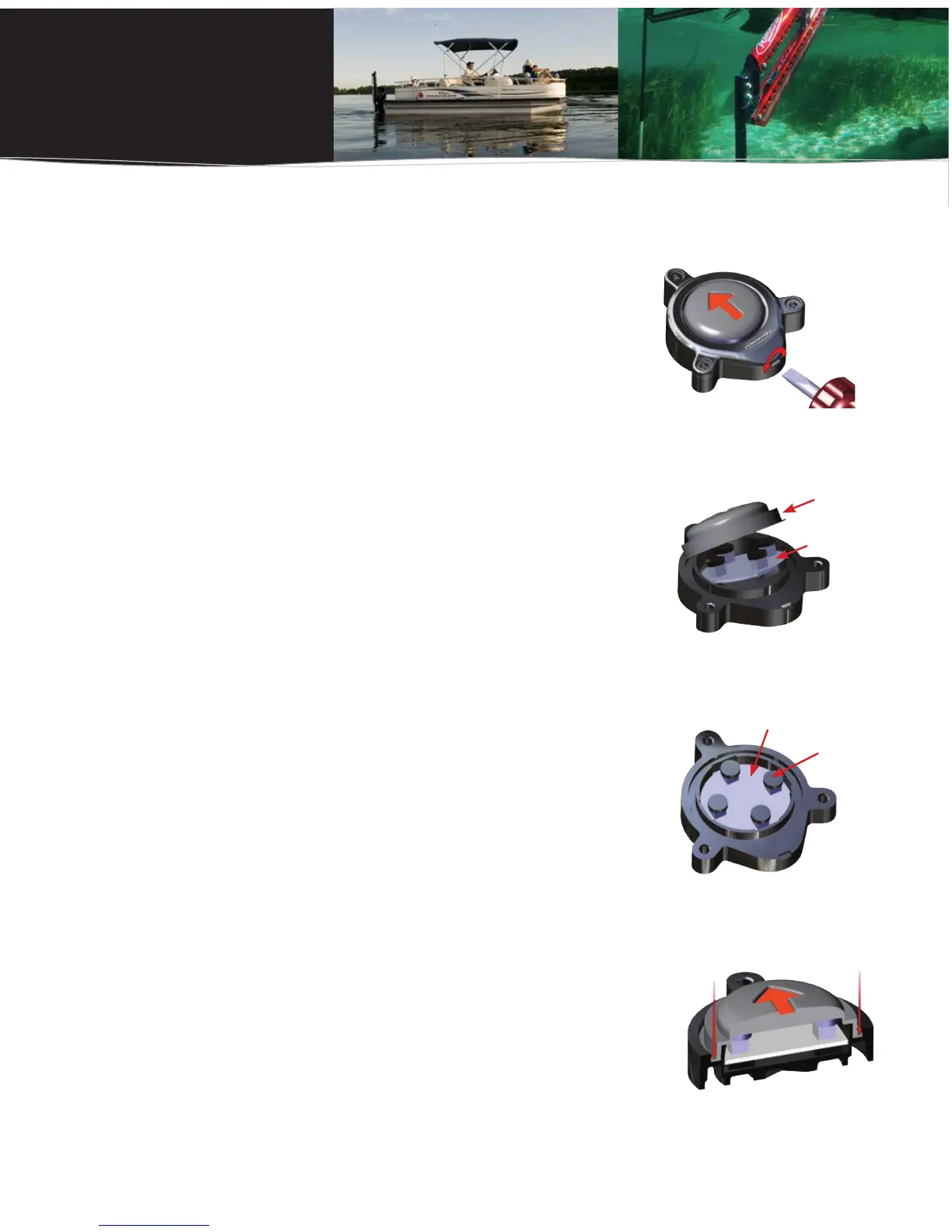

Figure 1
Figure 4
Switch Cover
Circuit Board
Figure 2
Circuit Board
Black Caps
Figure 3
