Installation Instructions for Power Sentry Emergency Battery Packs –QD MVOLT Series
Page 11
CAUTION
REFER TO LAMP SELECTOR TABLE
BEFORE CHANGING POSITIONS
LAMP SELECTOR (PS 1400 ONLY)
BALLAST POWER CONNECTION
120 TO 277 VAC SWITCHED OR
UNSWITCHED LINE –
NOTE; VERIFY VOLTAGE RATING
ON LAMP BALLAST
CONNECT BLACK AND ORANGE
LEADS TOGETHER IF ORANGE
WIRE IS PRESENT
120 TO 277 VAC
UNSWITCHED LINE
TEST SWITCH/PILOT LIGHT
MVOLT
BATTERY PACK

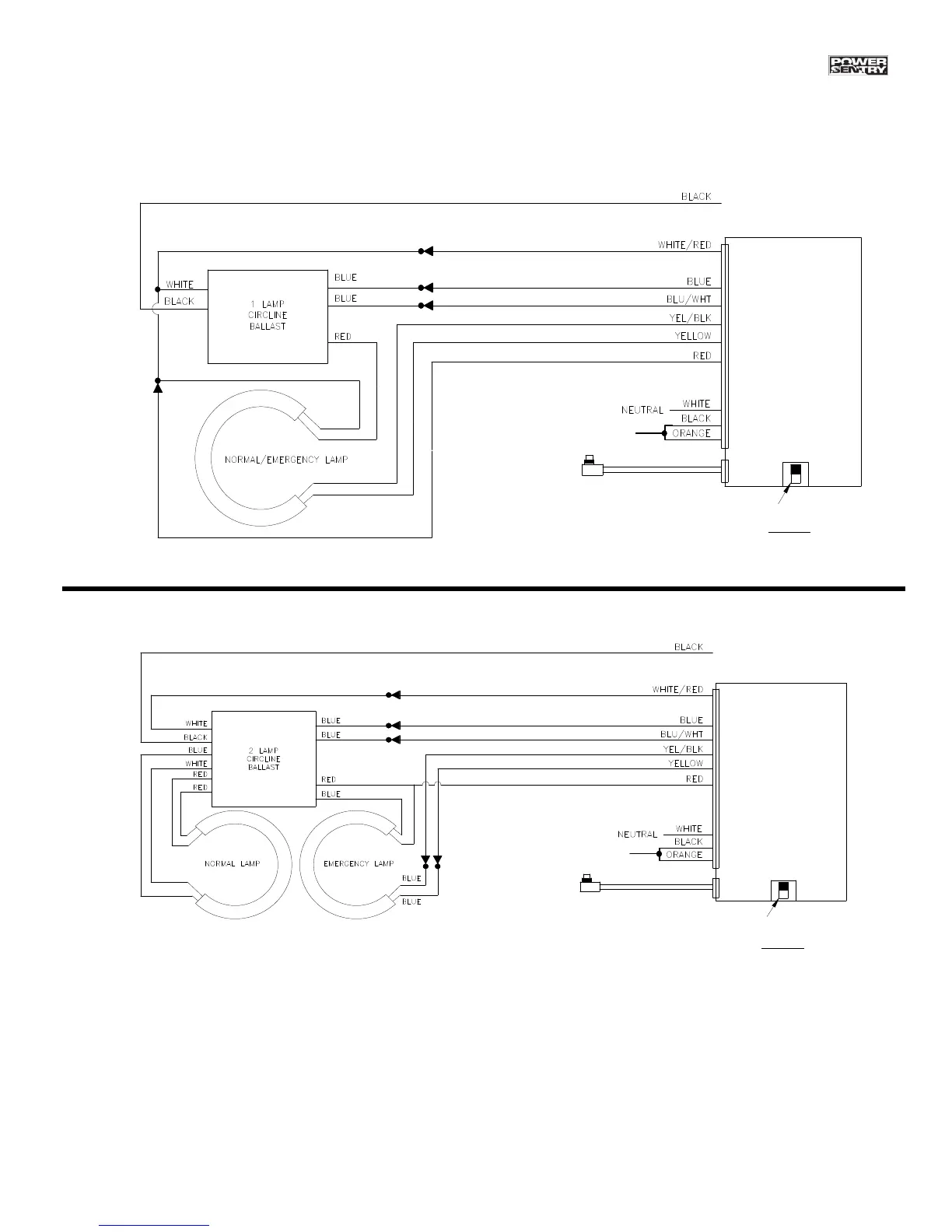

ONE LAMP CIRCLINE BALLAST
Figure K
LAMP SELECTOR (PS 1400 ONLY)
CAUTION
REFER TO LAMP SELECTOR TABLE
BEFORE CHANGING POSITIONS
TEST SWITCH/PILOT LIGHT
BALLAST POWER CONNECTION
120 TO 277 VAC SWITCHED OR
UNSWITCHED LINE –
NOTE; VERIFY VOLTAGE RATING
ON LAMP BALLAST
CONNECT BLACK AND ORANGE
LEADS TOGETHER IF ORANGE
WIRE IS PRESENT
120 TO 277 VAC
UNSWITCHED LINE
TWO LAMP CIRCLINE BALLAST
MVOLT
BATTERY PACK
Figure L
