Installation Instructions for Power Sentry Emergency Battery Packs –QD MVOLT Series
Page 12
LAMP SELECTOR (PS 1400 ONLY)
CAUTION
REFER TO LAMP SELECTOR TABLE
BEFORE CHANGING POSITIONS
CONNECT BLACK AND ORANGE
LEADS TOGETHER IF ORANGE
WIRE IS PRESENT
120 TO 277 VAC
UNSWITCHED LINE
MVOLT
BATTERY PACK

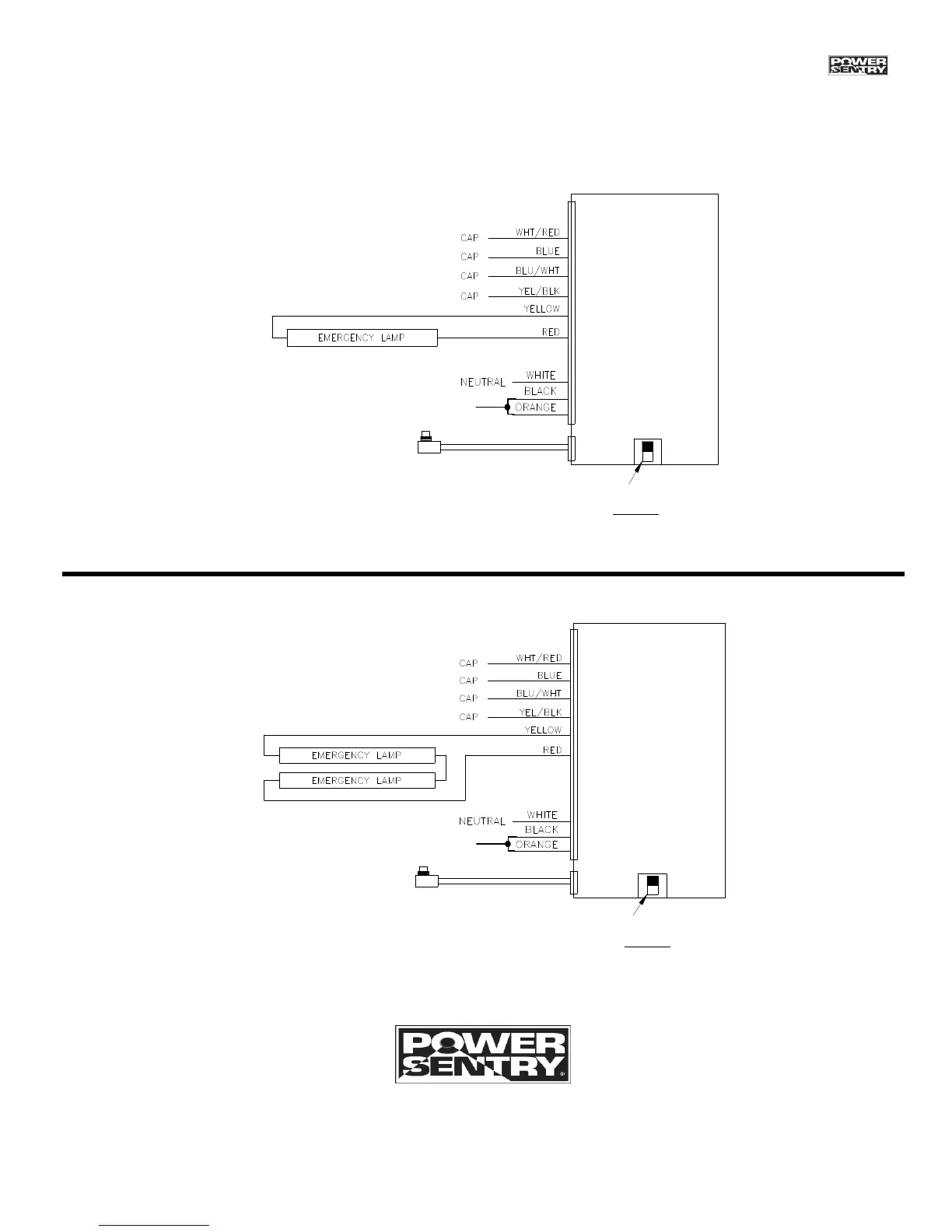

ONE LAMP WITHOUT AC BALLAST
Figure M
CAUTION
REFER TO LAMP SELECTOR TABLE
BEFORE CHANGING POSITIONS
LAMP SELECTOR (PS 1400 ONLY)
CONNECT BLACK AND ORANGE
LEADS TOGETHER IF ORANGE
WIRE IS PRESENT
120 TO 277 VAC
UNSWITCHED LINE
TEST SWITCH/PILOT LIGHT
TWO LAMP WITHOUT AC BALLAST
MVOLT
BATTERY PACK
Figure N
