Power Sentry PS600 MVOLT - Page 8

Installation Instructions for Power Sentry Emergency Battery Packs –QD MVOLT Series
Page 8

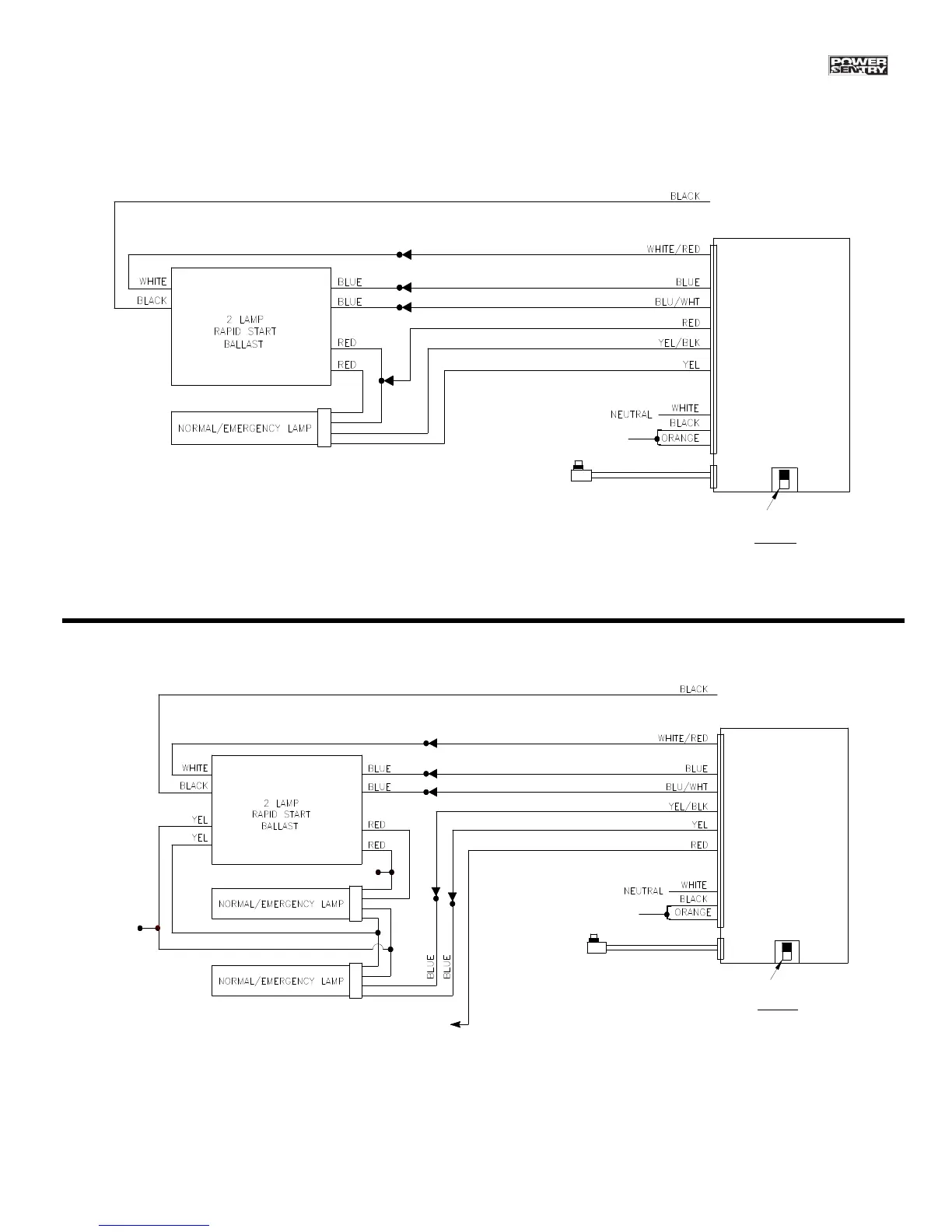

ONE FOUR-PIN COMPACT LAMP RAPID START BALLAST (PS1400 ONLY)
CAUTION
REFER TO LAMP SELECTOR TABLE
BEFORE CHANGING POSITIONS
LAMP SELECTOR (PS 1400 ONLY)
TEST SWITCH/PILOT LIGHT
CONNECT BLACK AND ORANGE
LEADS TOGETHER IF ORANGE
WIRE IS PRESENT
BALLAST POWER CONNECTION
120 TO 277 VAC SWITCHED OR
UNSWITCHED LINE –
NOTE; VERIFY VOLTAGE RATING
ON LAMP BALLAST
120 TO 277 VAC
UNSWITCHED LINE
MVOLT
BATTERY PACK
Figure E
CAUTION
REFER TO LAMP SELECTOR TABLE
BEFORE CHANGING POSITIONS
LAMP SELECTOR (PS 1400 ONLY)
TEST SWITCH/PILOT LIGHT
CONNECT BLACK AND ORANGE
LEADS TOGETHER IF ORANGE
WIRE IS PRESENT
120 TO 277 VAC
UNSWITCHED LINE
MVOLT
BATTERY PACK
BALLAST POWER CONNECTION
120 TO 277 VAC SWITCHED OR
UNSWITCHED LINE –
NOTE; VERIFY VOLTAGE RATING
ON LAMP BALLAST
TWO FOUR-PIN COMPACT LAMP RAPID START BALLAST (PS1400 ONLY)
CONNECT RED WIRE TO POINT “A”
FOR ONE LAMP OR TO POINT “B”
FOR TWO LAMP EMERGENCY
OPERATION
SINGLE
EMERG. LAMP
CONNECTION
“A”
TWO EMERG. LAMP CONNECTION
“B”
Figure F
