Power smart DB1051 - Exploded View & Parts List

21

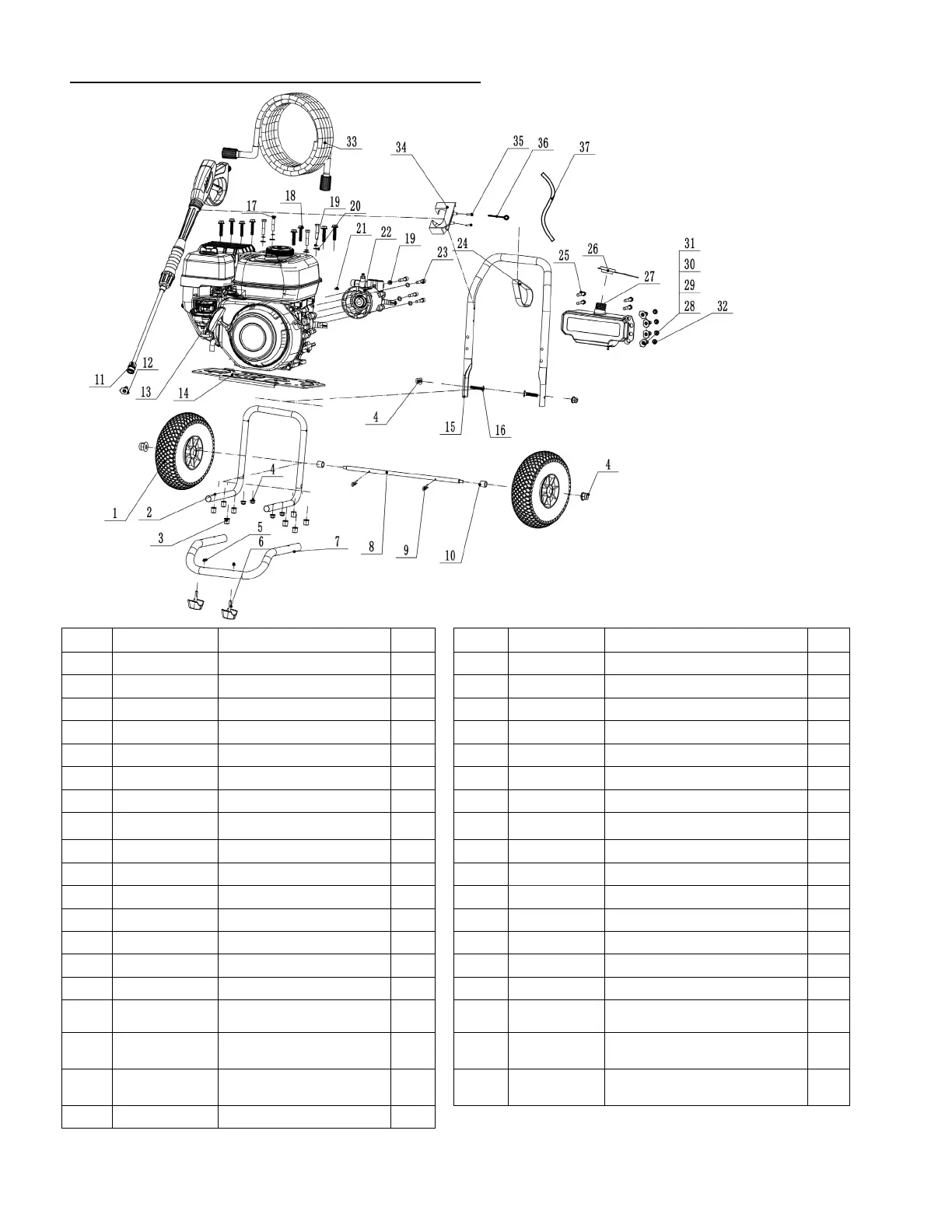

EXPLODED VIEW AND PART LIST
Item
Stock #
Description
Qty
Item
Stock #
Description
Qty
1
203050691
10" Wheel
2
20
303042023
Flat washer
4
2
303081250
Middle tube
1
21
303110039
Flat key
1
3 18013368 Blind rivet nut 8 22 303090083 Pump assembly 1
4
303030077
Lock nut M8
8
23
303020497
Bolt M8*25
4
5
303030087
Lock nut M6
2
24
302120074
High pressure pipe sling
1
6
203070137
Damping pad
2
25
303020652
Bolt M6*28
4
7 303081249 Front tube 1 26 302110100 Soap bottle cover 1
8 303160900 Wheel axle 1 27 203070141 Soap bottle 1
9
303160845
Butterfly pin
2
28
303060148
0° Nozzle
1
10
303160906
Axle sleeve
2
29
303060149
15° Nozzle
1
11
303060147
High pressure gun
1
30
303060150
15° Nozzle
1
12
303060181
15° Nozzle
1
31
303060151
Soap nozzle
1
13
D00002836
Engine
1
32
203070139
Nozzle jacket
4
14
303071491
Engine support plate
1
33
303081248
High pressure pipe
1
15
303081247
Upper tube
1
34
203051111
Gun rod hook
1
16 303020154 Bolt M8*40 2 35 303010402 Screw ST4*16 2
17 303020275
Outer hexagon bolt
M8*40
4 36 303060152 Nozzle needle 1
18 303020240
Outer hexagon bolt
M8*20
8 37 303081253 Siphoning tube 1
19 303041022 Spring washer 8
