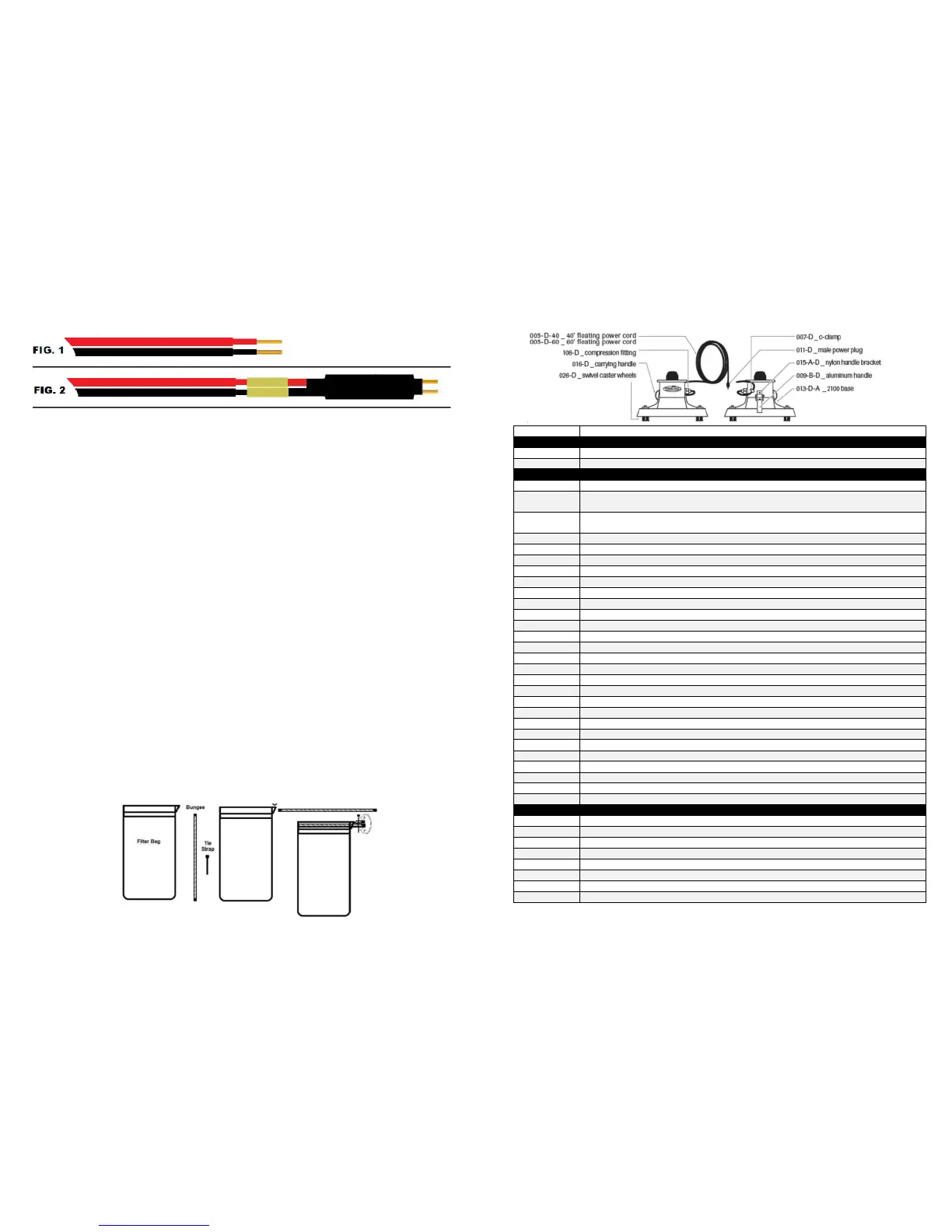

Install the Charge Plug
(OPTIONAL)
This plug is included in with most of our vacuum packages. Here is how to charge your battery
hassle-free, without taking the lid off the battery case. Installing the charge plug is optional.
1. Cut the clamp ends off of your charger.
2. Strip back the wires exposing about 1”.See fig. 1.
3. Connect the positive [+] wire of the charger to thepositive [+] wire of the charge plug.Do the
same for the negative [-] black wire. Clamp the wires into the butt connector. See Fig 2.
4. Apply heat to the butt connectors until it shrinks slightly and adheres to the wires.
Assemble Filter Bag
Instructions
1. Feed bungee cord thru one opening of top seam.
2. Push bungee all the way thru, until both rubber ends are exposed.
3. Take both ends of bungee and line them up evenly.
4. Measure 1 inch below rubber ends and use black zip tie to bring two ends together.
5. Pull zip tie as tight as possible then cut away the excess zip tie.
6. Turn bag inside out (seam goes on inside).
Once assembled, slip filter bag over the top opening of the vacuum. The bag will collect
debris from water as vacuum operates. Empty the filter bag of all debris when it becomes
full. With standard everyday use and proper care, each bag will typically last 2-4 months.
Page 5
Parts List for PV2500
Fountains & Residential Pools
Page 18
PART #
DESCRIPTION
PORTABLEVERSIONS
003-D-40
PV2500 WITH 40’ CORD PORTABLE VACUUM PACKAGE
003-D-60
PV2500 WITH 60’ CORD PORTABLE VACUUM PACKAGE
REPLACEMENT PARTS
004-D
CORD FLOAT (FOR NON-FLOATING CORD-PURCHSED BEFORE 2010)
005-D-40
40' BLUE FLOATING POWER CORD W/ BRASS + MOLDED MALE PLUG
(SELF INSTALLATION VOIDS WARRANTY)
005-D-60
60' BLUE FLOATING POWER CORD W/ BRASS + MOLDED MALE PLUG
(SELF INSTALLATION VOIDS WARRANTY)
006-D-2500
PV2500 MOTOR (SELF INSTALLATION VOIDS WARRANTY)
007-D
“C”-CLAMP
009-A-D
CHROME HANDLE WITH DELRON CLIP
009-B-D
ALUMINUM HANDLE
009-C-D
CHROME SWIVEL HANDLE
010-D
FEMALE PLUG
010-B-D
FEMALE PLUG W/ FUSE ATTACHMENT FOR BATTERY CASE
011-D
MALE PLUG (ON END OF POWER CORD)
012-D
PORTABLE BATTERY CARRYING CASE W/ BUILT IN FUSE
013-D-F
PV2500 REPLACEMENT BASE-LESS MOTOR & CORD
013-D-F-S
PV2500 REPLACEMENT BASE-BARE SHELL ONLY
015-A-D
NYLON HANDLE BRACKET (VERTICAL)
015-B-D
ALUMINUM HANDLE BRACKET (HORIZONTAL) FOR UNITS PURCHASED BEFORE 2006
016-D
CARRYING HANDLE
026-D
SET OF 4 CASTER WHEELS
027-D
SINGLE SWIVEL CASTER WHEEL
027-D-A
SINGLE FIXED WHEEL
029-D
NUT & PIN FOR PROP
030-D-2500
TWIN BLADE PROPELLER (PROP) FOR PV2500
058-D
BRASS NUT FOR MOTOR
081-D
ORANGE CORD SEAL GROMMET
085-D
STEERING KIT (2 FIXED/2 SWIVEL WHEELS & CHROME SWIVEL HANDLE)
092-D
SINGLE PV FEMALE CONNECTOR FOR MOTOR
093-D
SINGLE PV MALE CONNECTOR FOR POWER CORD
108-D
BRASS COMPRESSION BELL FOR FLOATING POWER CORD
FILTER BAGS
019-D-2100
26" SUPER FINE MESH FILTER BAG
019-D-2500
15” SUPER FINE MESH FILTER BAG
020-D-2100
26" MICRON FILTER BAG
022-D-2100
26" HEAVY DUTY MESH FILTER BAG
022-D-2100L
42" HEAVY DUTY MESH FILTER BAG
022-D-2500
15” HEAVY DUTY MESH FILTER BAG
023-D-2100
26" SCREEN MESH FILTER BAG
023-D-2100L
42” SCREEN MESH FILTER BAG
