Power Vac PV2100 - Parts List for PV2100; Equipment Maintenance

Equipment Maintenance
Important tips on keeping your vacuum in top shape:
1. CLEAN PROPELLER (PROP) REGULARLY.UNPLUG THE VACUUM!
Unscrew the nut (see fig 1) and clear prop of any debris (see fig 2). If
removing the pin inserted between the motor shaft make sure to
replace it immediately. When screwing the nut back on to prop do not
over tighten.
Failure to regularly clean prop may cause motor to lock up. In some
cases the debris will make its way down into the motor armature.
Do not put fingers near prop while motor is running! Serious injury may
occur!

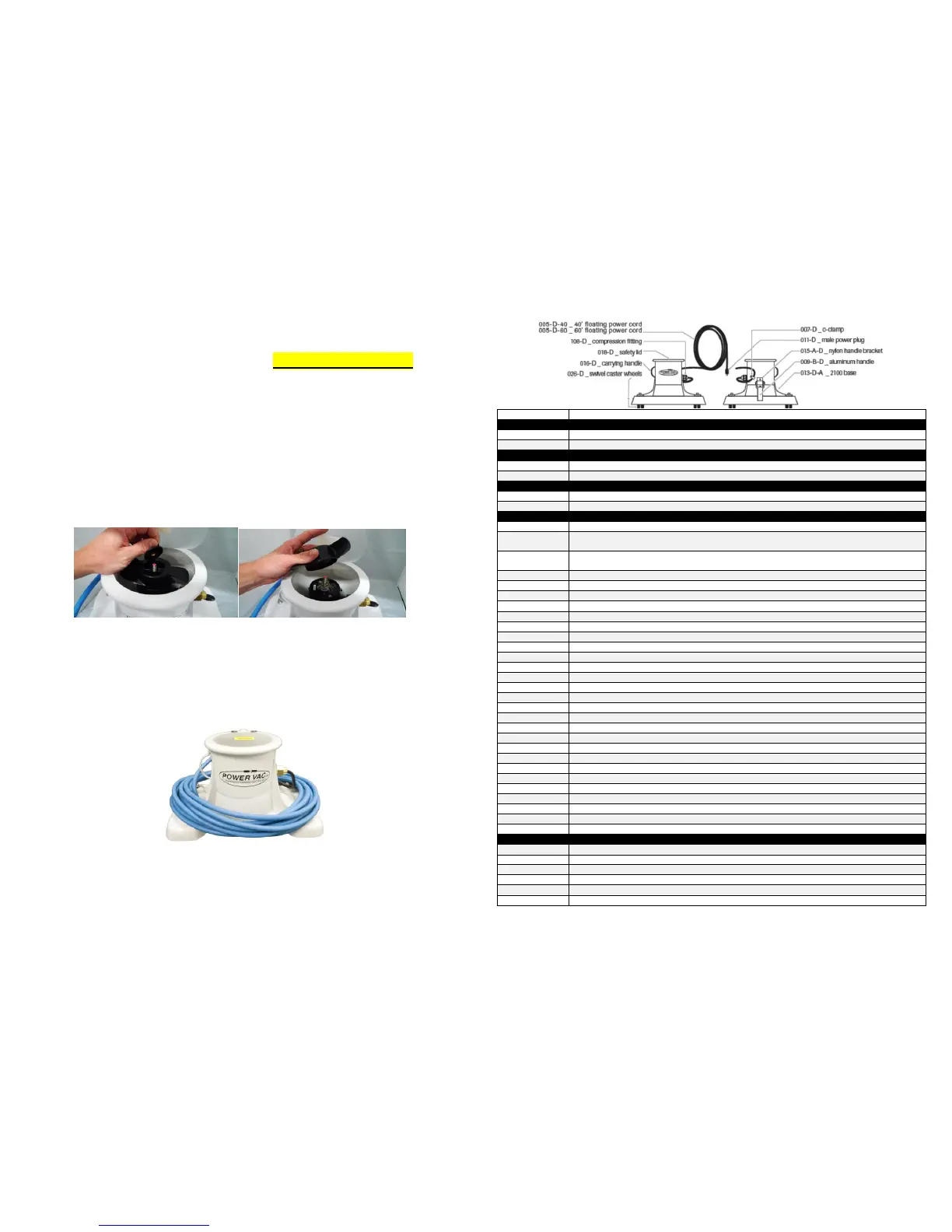

Figure 1 Figure 2
2. WRAP POWER CORD PROPERLY AFTER EVERY USE (see Fig 3). Keep
power cord in good condition and free of kinks, to ensure optimal
performance. Allowing your power cord to knot and kink may result in one
or more areas on cord where power shortages occur.
Figure 3
3. DO NOT RUN THE VACUUM OUT OF WATER FOR MORE THAN 20
SECONDS. Our motors our designed to operate under water. Running
the motor while out of water may cause motor to overheat.
Page 7
Parts List for PV2100
Residential & Commercial Pools
Page 16
PART #
DESCRIPTION
PORTABLEVERSIONS
002-D-40
PV2100 WITH 40’ CORD PORTABLE VACUUM PACKAGE
002-D-60
PV2100 WITH 60’ CORD PORTABLE VACUUM PACKAGE
MOUNTABLE CARTED VERSIONS
039-D-40
PV2100 WITH 40’ CORD CARTED VACUUM PACKAGE WITH MOUNTING SYSTEM
039-D-60
PV2100 WITH 60’ CORD CARTED VACUUM PACKAGE WITH MOUNTING SYSTEM
ON SITE CARTED VERSIONS
039-40-A-D
PV2100 WITH 40’ CORD CARTED VACUUM PACKAGE
039-60-A-D
PV2100 WITH 60’ CORD CARTED VACUUM PACKAGE
REPLACEMENT PARTS
004-D
CORD FLOAT (FOR NON-FLOATING CORD-PURCHSED BEFORE 2010)
005-D-40
40' BLUE FLOATING POWER CORD W/ BRASS + MOLDED MALE PLUG
(SELF INSTALLATION VOIDS WARRANTY)
005-D-60
60' BLUE FLOATING POWER CORD W/ BRASS + MOLDED MALE PLUG
(SELF INSTALLATION VOIDS WARRANTY)
006-D-2100
PV2100 MOTOR (SELF INSTALLATION VOIDS WARRANTY)
007-D
“C”-CLAMP
009-A-D
CHROME HANDLE WITH DELRON CLIP
009-B-D
ALUMINUM HANDLE
009-C-D
CHROME SWIVEL HANDLE
010-D
FEMALE PLUG
010-B-D
FEMALE PLUG W/ FUSE ATTACHMENT FOR BATTERY CASE
011-D
MALE PLUG (ON END OF POWER CORD)
012-D
PORTABLE BATTERY CARRYING CASE W/ BUILT IN FUSE
013-D-A
PV2100 REPLACEMENT BASE-LESS MOTOR & CORD
013-D-A-S
PV2100 REPLACEMENT BASE-BARE SHELL ONLY
015-A-D
NYLON HANDLE BRACKET (VERTICAL)
015-B-D
ALUMINUM HANDLE BRACKET (HORIZONTAL) FOR UNITS PURCHASED BEFORE 2006
016-D
CARRYING HANDLE
018-D
PV2100 SAFETY LID
026-D
SET OF 4 CASTER WHEELS
027-D
SINGLE SWIVEL CASTER WHEEL
027-D-A
SINGLE FIXED WHEEL
029-D
NUT & PIN FOR PROP
030-D-2100
TWIN BLADE PROPELLER (PROP) FOR PV2100
058-D
BRASS NUT FOR MOTOR
081-D
ORANGE CORD SEAL GROMMET
085-D
STEERING KIT (2 FIXED/2 SWIVEL WHEELS & CHROME SWIVEL HANDLE)
092-D
SINGLE PV FEMALE CONNECTOR FOR MOTOR
093-D
SINGLE PV MALE CONNECTOR FOR POWER CORD
108-D
BRASS COMPRESSION BELL FOR FLOATING POWER CORD
FILTER BAGS
019-D-2100
26" SUPER FINE MESH FILTER BAG
020-D-2100
26" MICRON FILTER BAG
022-D-2100
26" HEAVY DUTY MESH FILTER BAG
022-D-2100L
42" HEAVY DUTY MESH FILTER BAG
023-D-2100
26" SCREEN MESH FILTER BAG
023-D-2100L
42” SCREEN MESH FILTER BAG
