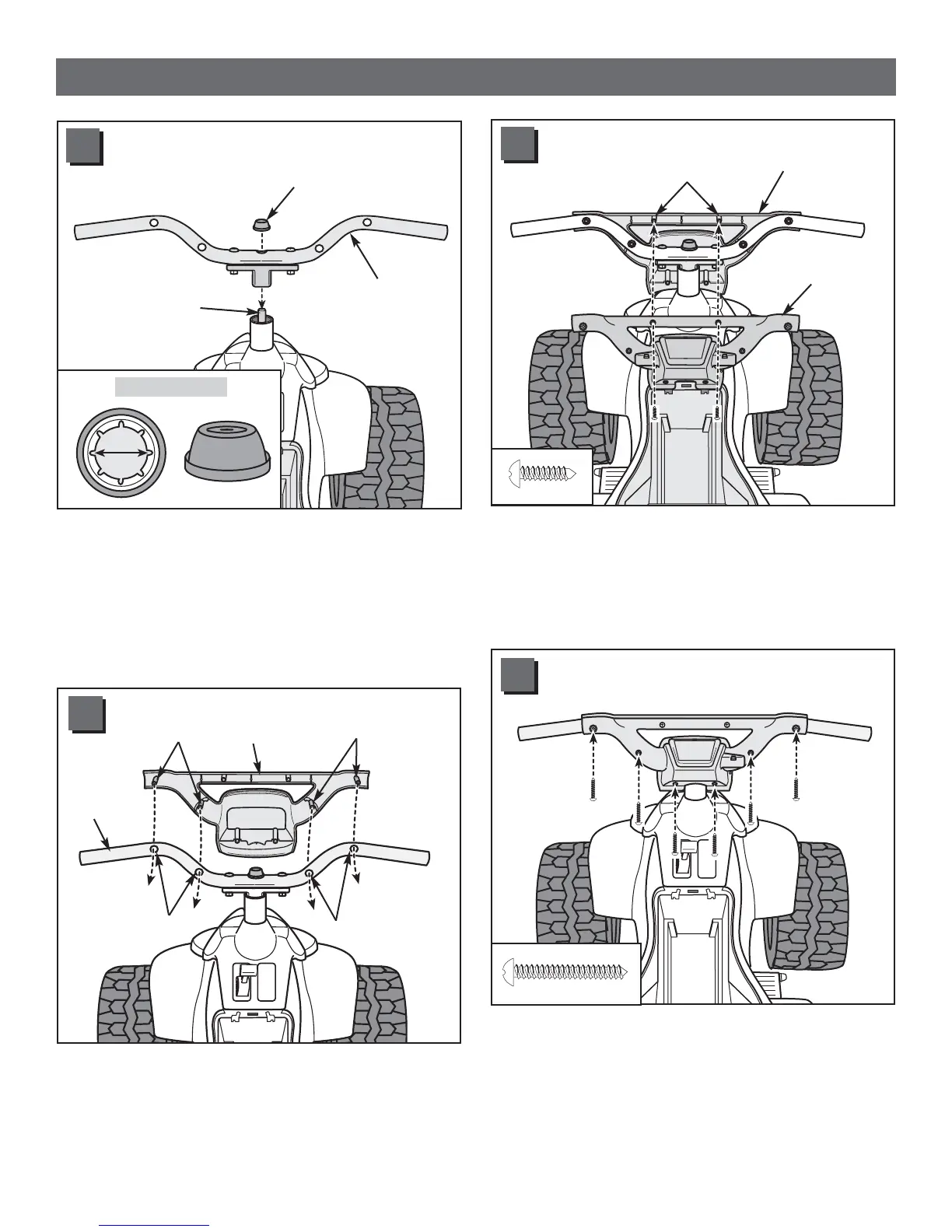

• Fit the front handlebar assembly into the front of
the handlebar.
Screw
Pegs
Screw
Pegs
Holes
Holes
Handlebar
Front
Handlebar
Housing
• Fit the handlebar assembly onto the end of the steering
column. Make sure the handlebar grip area points towards
the rear of the vehicle.
• Fit a cap nut on the end of the steering column.
•Tap the cap nut with a hammer to secure it on the end
of the steering column.
• Pull up on the handlebar to make sure the handlebar
assembly is secure.
Cap Nut
Steering
Column
Handlebar
Assembly
• Insert six #6 x 1" screws through the back handlebar
assembly, as shown.
• Tighten the screws with a Phillips screwdriver.
Do not over-tighten.
•Now, fit the back handlebar assembly to the front
handlebar assembly.
• Insert two #6 x
1
/
2
" screws into the two top center holes of
the back handlebar assembly, as shown.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
Short
Screw
Pegs
Front
Handlebar
Assembly
Back
Handlebar
Assembly
.437"
.437 Cap Nut
