Power Wheels Wrangler - Parts Diagram; Assembly Part References

7
1Vehicle Body 1
2Steering Column 1
3 .354 Cap Nut 2
4 Hood Latch 2
5 12 Volt Battery 1
6 Battery Clamp Unit 1
7 12 Volt Charger 1
8Taillight Lens 2
9 Taillight Housing 2
10 #8 x 1" Screw 9
11 Gas Cap 1
12 Dash with Sound Unit 1
13 #10 x 1" Screw 9
No. Part Quantity No. Part Quantity No. Part Quantity

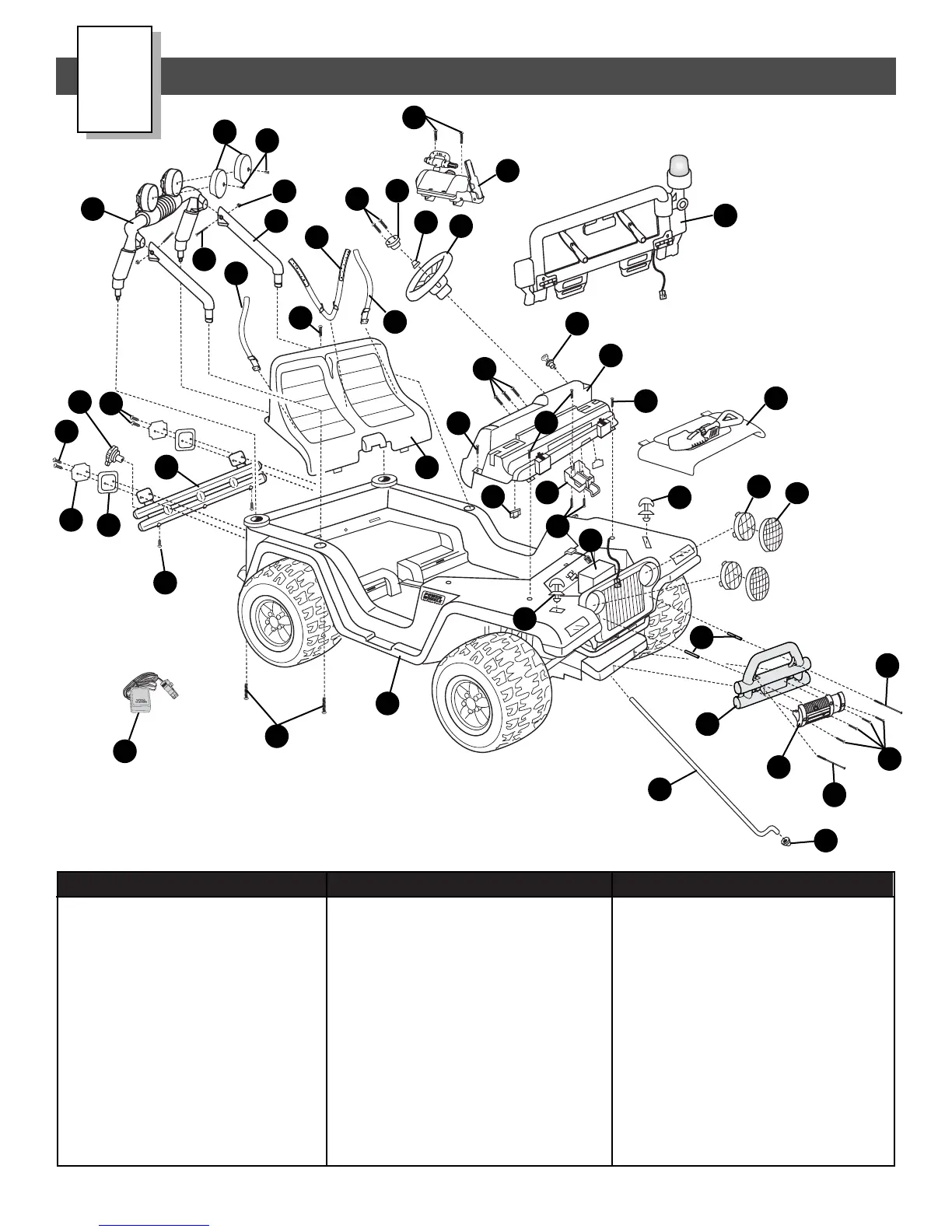

Parts Diagram
D
Note: Some parts shown are assembled on both sides of the vehicle.
14 #10 x
1
/
2
" Screw 8
15 #8 x 4" Screw 2
16 Windshield 1
17 Brush Guard 1
18 Winch 1
19 Key Assembly 1
20 Steering Wheel 1
21 Steering Wheel Cap 1
22 Seat 1
23 Long Seat Belt Strap 1
24 Short Seat Belt Strap 2
25 Headlight Lens 2
26 Lens Guard 2
27 Hood with Shovel 1
28 Spacer 2
29 Sport Bar 1
30 Sport Bar Support 2
31 Light Cover 2
32 Rear Bumper 1
33 Lock Nut 2
34 #8- 32 x 1.625" Screw 2
35 Water Cannon 1
36 Wire Clip 2
37 #10- 32 x 1" Screw 2
38 #8 x
3
/
4
" Screw 3
Not Shown: Label Sheet
1
26
3
11
18
13
13
13
14
13
9
30
5
14
34
35
33
27
17
6
7
31
32
2
20
16
12
14
3
29
15
15
19
25
23
28
21
24
22
36
24
37
8
4
4
10
10
10
10
10
38
