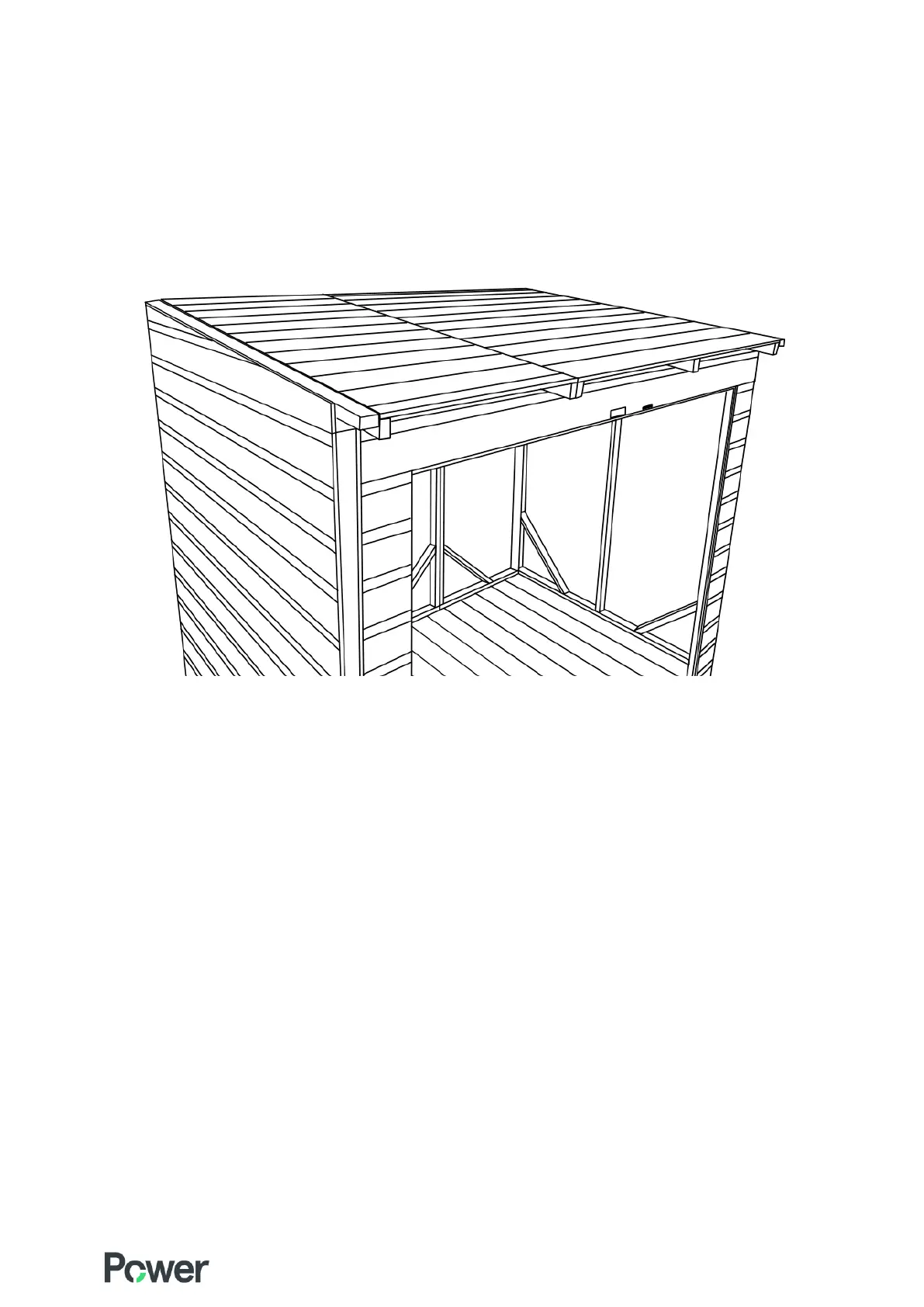

Roof
1. Your pent will come with one roof panel (if it’s a 6x2 or 6x3) or two roof panels (if it’s 6x4, 6x5 & 6x6).
2. Place the roof panel(s) in place so that the framing on the roof panel run parallel with the gables i.e. from the
high side to the low side. These are not handed so can go on either side and does not matter which direction
the tongue and groove of the boards run as it will be covered by the felt and bargeboards.
3. Make sure the framing on the roof is in line with the framing on the gable top so that the overhang on the
front and back is correct.
4. If applicable, join the roof panels to each other and to the gables using 50mm screws, going through framing
from the inside of the building.
5. Then, screw the roof panels to the front and back wall panels with 50mm screws (ensuring you screw up
through the framing of the front and back panel into the framing of the roof).
