Assembling the Lawn Mower
WARNING!
Always take care when removing the packaging, to
prevent damage to you or to the lawn mower.
This item requires a two-person lift to remove it from the
packaging. Make sure that you have sufficient space to
put the lawn mower down. Keep your feet apart so that
you have a stable position; bend at the knees and keep
your back straight.
Always recycle the packaging in accordance with local
recycling regulations.

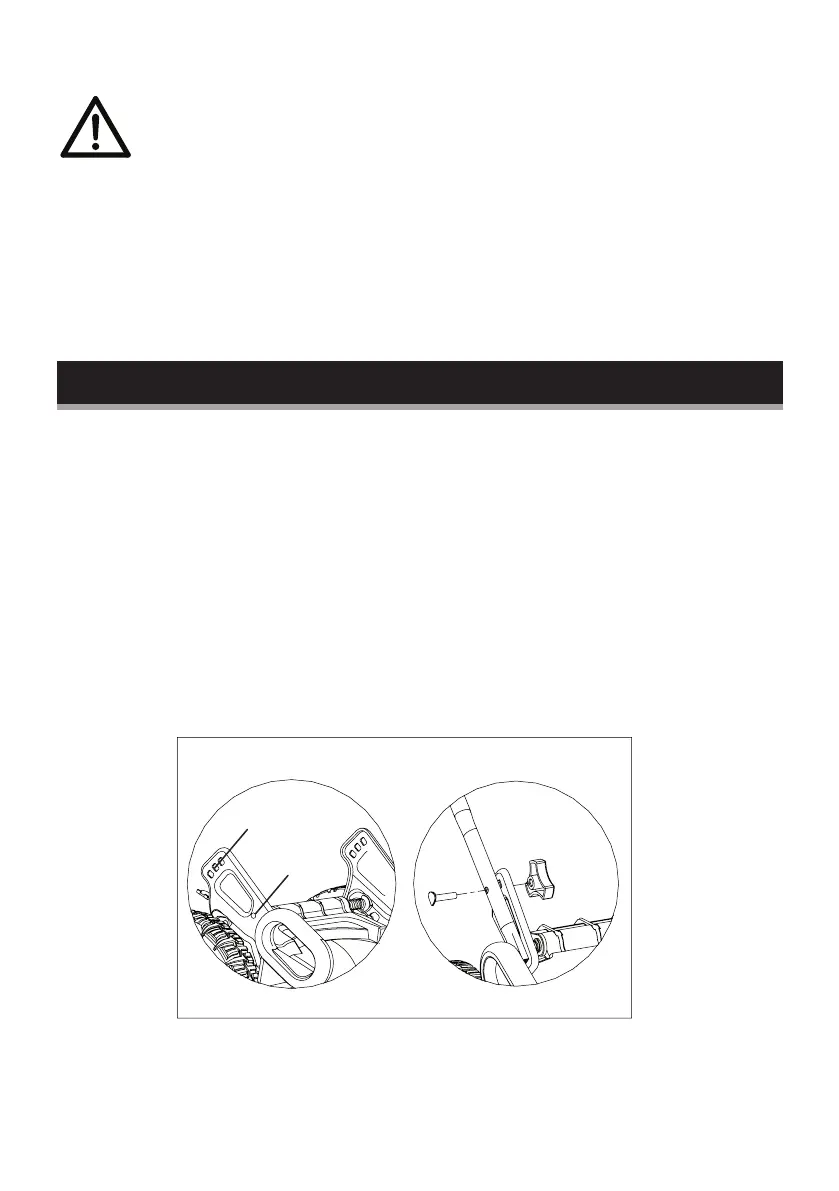

Assembling the lower handle
1. Remove the packaging from the handle. Set the height
adjustment to the lowest position, put the pin of the
lower handle into hole 1 in the support frame, and align the
lower handle with hole 2 in the support frame. Make sure
the holes in the lower handle are aligned with those in the
support frame.
NOTE: There are 3 holes on the support frame, fit for different
heights. Keep the bolts at the same levels on both sides.
NOTE: Ensure the rope guide is on the right side, when you
stand behind the mower.
2. Fix the lower handle onto the deck firmly, using the handle
fixing bolts and spanner (supplied).
1
2
