Scroll Enclosure Air Compressors
Performance Specifi cations
Model SED1007 SED1007HP SET1507 SET1507HP SEQ2007 SEQ2007HP SEH3007 SEH3007HP SEO4007 SEO4007HP
Installed Motor
HP
10 10 15 15 20 20 30 30 40 40
Maximum
Pressure PSIG
116 145 116 145 116 145 116 145 116 145
Performance
SCFM @
100 PSIG
30.4 25.6 45.6 38.4 60.8 51.2 91.2 76.8 121.6 102.4
FLA*
208 / 230 / 460
30.6 / 27.6 /
13.8
30.6 / 27.6 /
13.8
45.9 / 41.4 /
20.7
45.9 / 41.4 /
20.7
61.2 / 55.2 /
27.6
61.2 / 55.2 /
27.6
91.8 / 82.8 /
41.4
91.8 / 82.8 /
41.4
122.4 /
100.4 / 55.2
122.4 /
100.4 / 55.2
Noise Level dB(A) 53 53 56 56 58 58 59 59 60 60
Discharge
Connection
3/4 inch 3/4 inch 3/4 inch 3/4 inch 1 inch 1 inch 1-1/2 inch 1-1/2 inch 1-1/2 inch 1-1/2 inch
Dimensions
in Inches
(L x W x H)
38 x 26 x 47 38 x 26 x 47 38 x 26 x 47 38 x 26 x 47 38 x 26 x 61 38 x 26 x 61 58 x 45 x 65 58 x 45 x 65 58 x 45 x 65 58 x 45 x 65
Weight (lbs) 620 620 800 800 1030 1030 1945 1945 2320 2320
Discharge Air
Temp. °F
< Intake
temp.
+49°F
< Intake
temp.
+49°F
< Intake
temp.
+52°F
< Intake
temp.
+52°F
< Intake
temp.
+63°F
< Intake
temp.
+63°F
< Intake
temp.
+63°F
< Intake
temp.
+63°F
< Intake
temp.
+63°F
< Intake
temp.
+63°F
* Full System Amps
Safety Guidelines
This manual contains information that is very important
to know and understand. This information is provided for
SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help
recognize this information, observe the following symbols.
Danger indicates an imminently
hazardous situation which, if
not avoided, will result in death or serious injury.
Warning indicates a potentially
hazardous situation which, if
not avoided, could result in death or serious injury.
Caution indicates a potentially
hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
Notice indicates important
information, that if not
followed, may cause damage to equipment.
Unpacking
After unpacking the unit, inspect carefully for any damage
that may have occurred during transit. Make sure to tighten
fi ttings, bolts, etc., before putting unit into service.
Do not operate unit if damaged
during shipping, handling
or use. Damage may result in bursting and cause injury or
property damage.
The compressor nameplate should be checked to see if the
unit is the correct model and voltage as ordered.

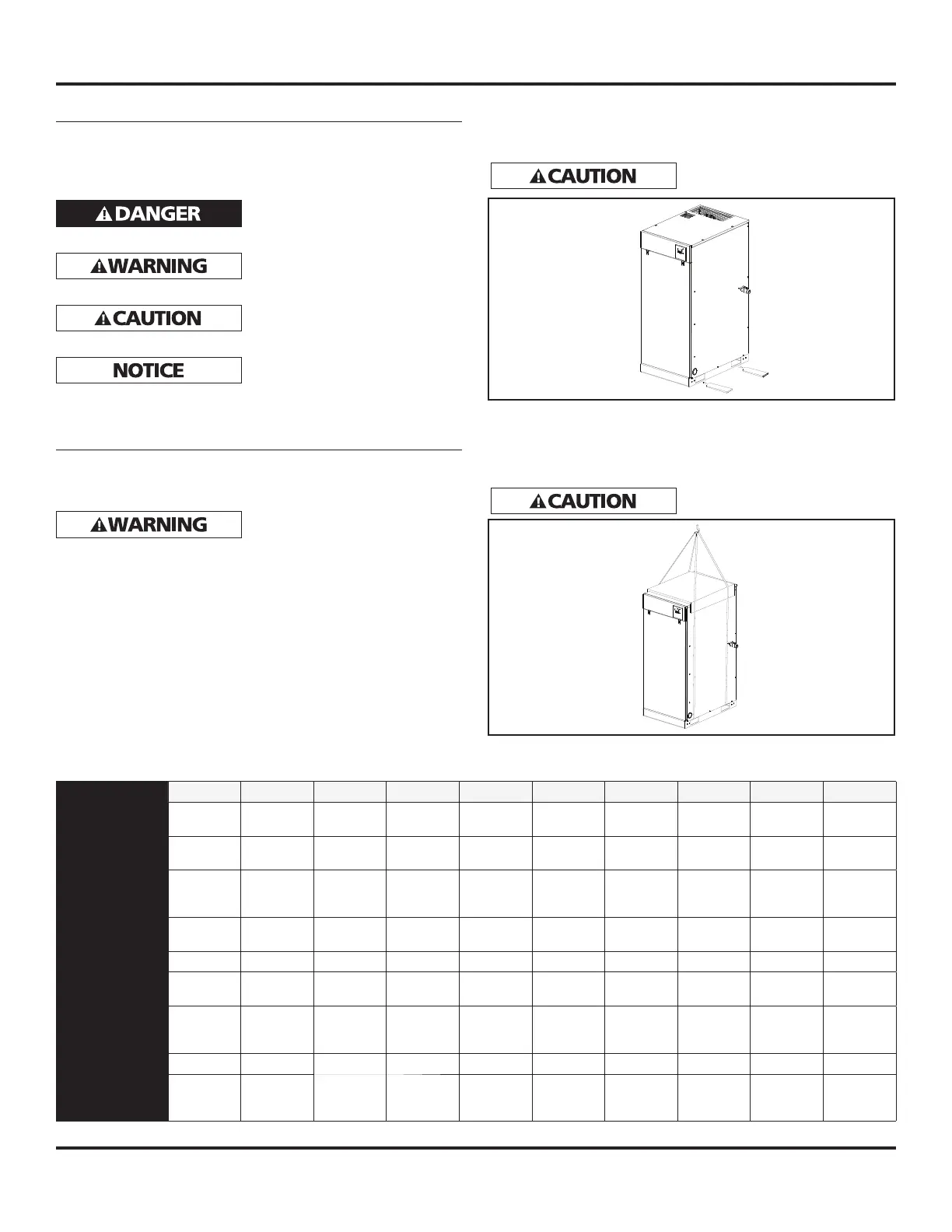

PRECAUTIONS DURING TRANSPORTATION AND MOVEMENT
TRANSPORTATION BY FORKLIFT
Use openings for forklift under both sides of the unit.
Avoid damaging the panel with
tips of the forklift.
TRANSPORTATION BY CRANE
Use openings at the bottom of the unit to lift up by cable,
lifting straps and etc. Make sure all lifting devices are rated
for the maximum load.
Be sure to use pads in order to
protect panels.
Figure 1
Figure 2

Powerex SED1007HP Specifications

General

Brand	Powerex
Model	SED1007HP
Category	Air Compressor
Language	English
