Scroll Enclosure Air Compressors
6/T34/T22/TI
1
2
3
4.1
4.2
4.3
4.4
6
7.1
7.2
13
14
15
16
11
9
12
10
8
5
17
7.3
Figure 17

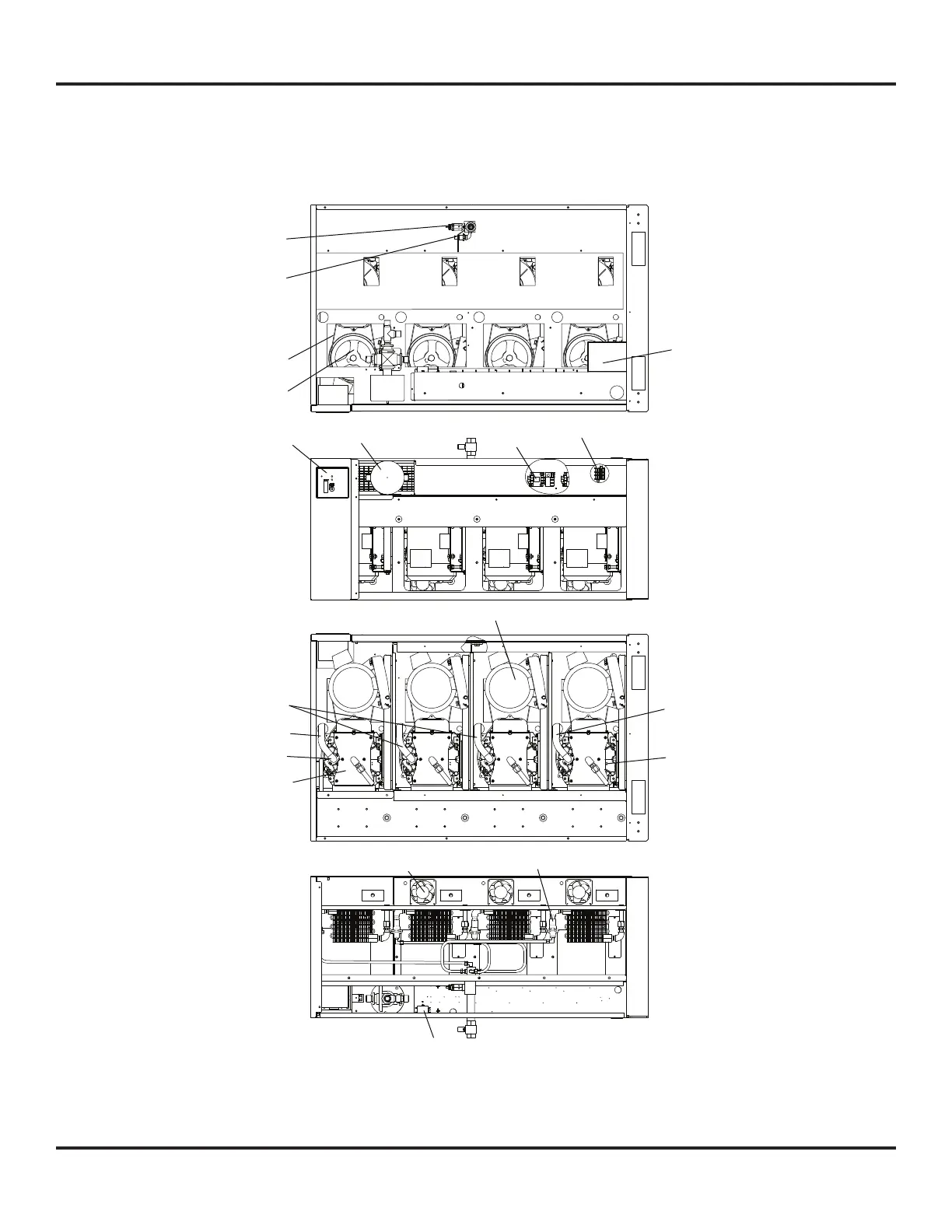

Parts Diagram - SEQ2007E & SEQ2007EHP
