26

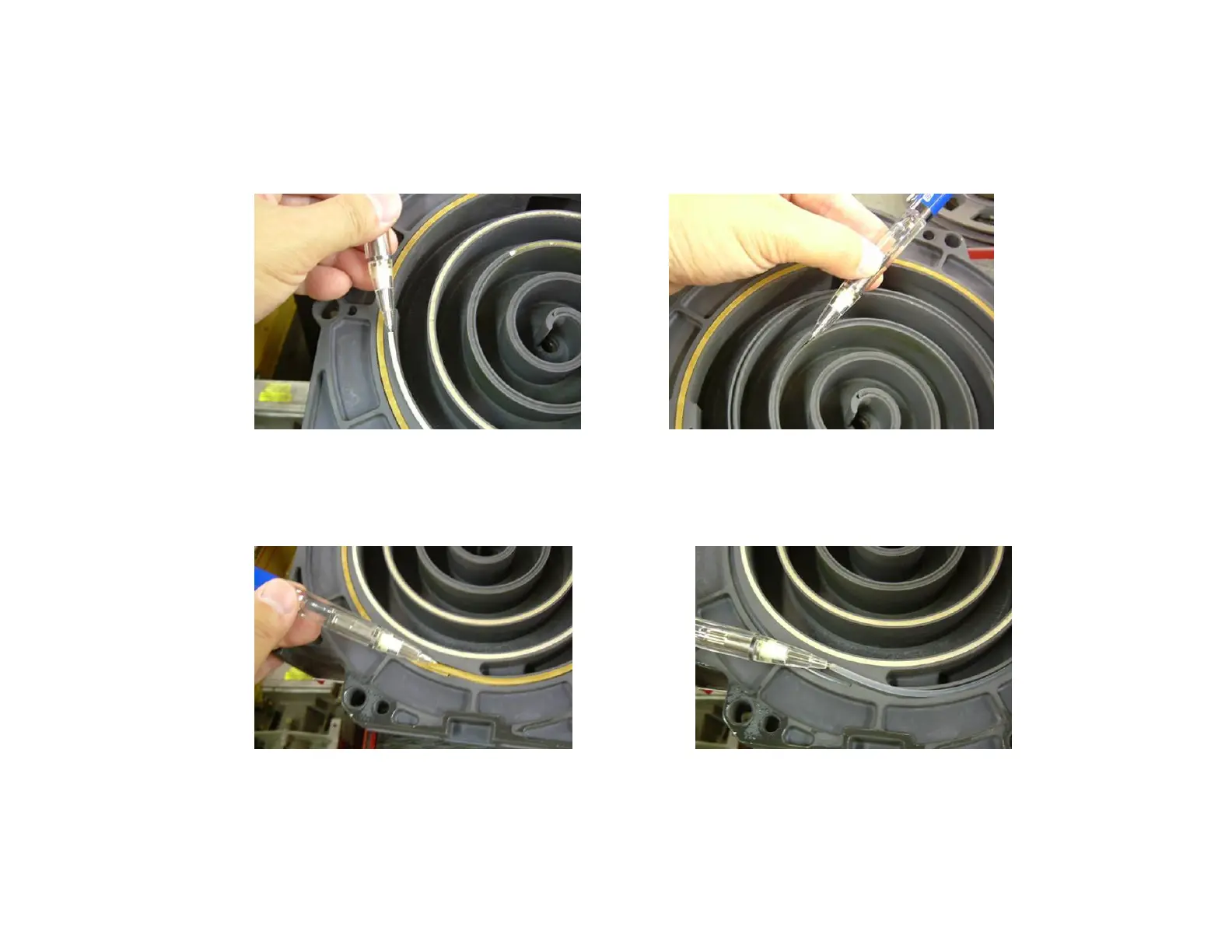

iii. Remove the LP and HP Tip Seals, the Dust Seal and the Backup Tube from FS (Fixed
Scroll) and OS (Orbital Scroll) sets. Using the tip of a ball-point pen at the start will make
it much easier.
LP Tip Seal HP Tip Seal
Dust Seal Backup Tube
※ You have to remove LP Tip Seal first
※ Backup Tube is under the Dust Seal.
