LV710 Freight Camera - Dry Van Swing Door Installation
Revised: 05/23/19 22

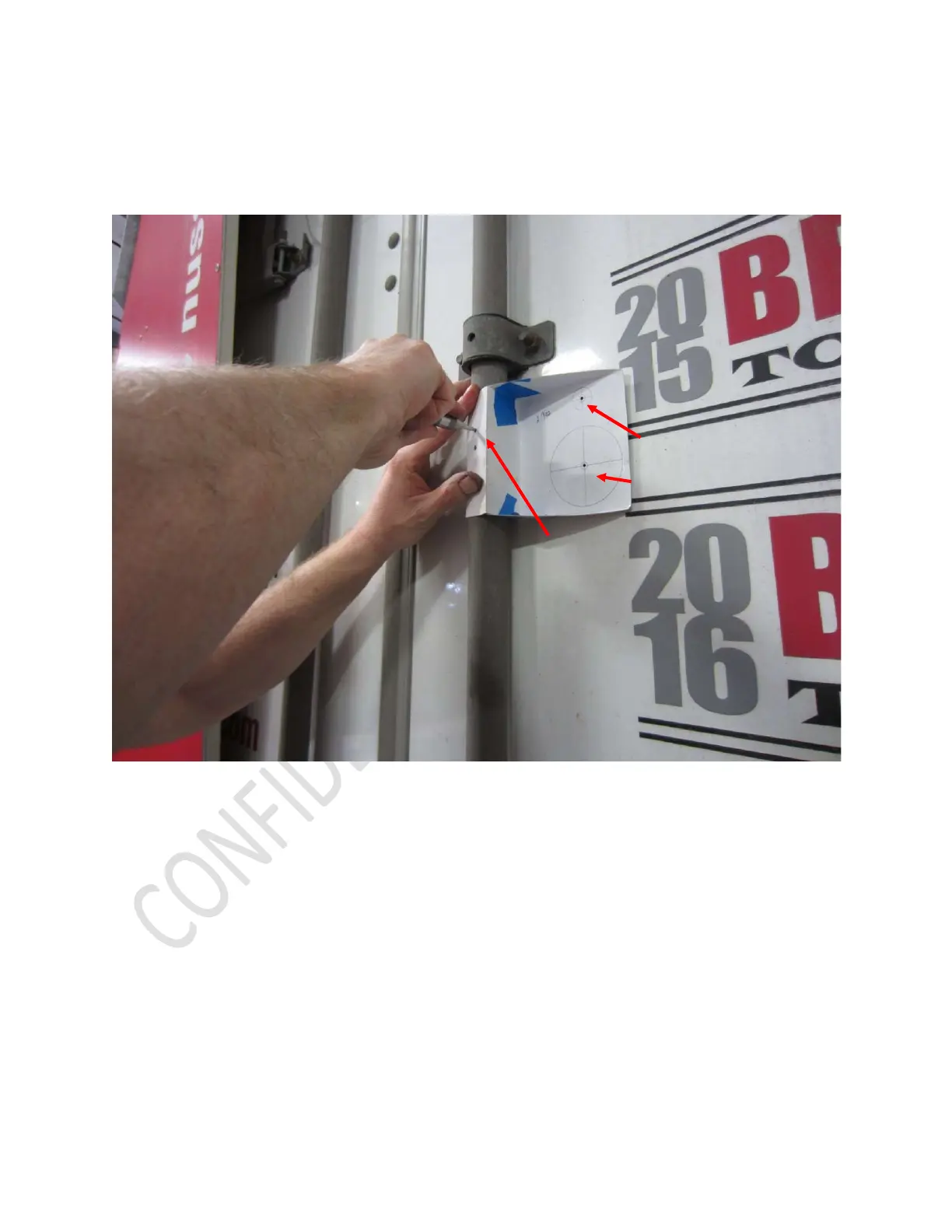

19. Using a spring-loaded punch, mark the locations of 4 holes in template.
c. Lens hole (1) - Door
d. Positioning dowel hole (1) - Door
e. Trigger magnet mounting screw holes (2) – Inner locking rod
Mark locations with spring-loaded punch
Lens
Positioning Dowel
Trigger Magnet
