Be careful to assemble all components in the
sequence they are presented.
S T E P
5

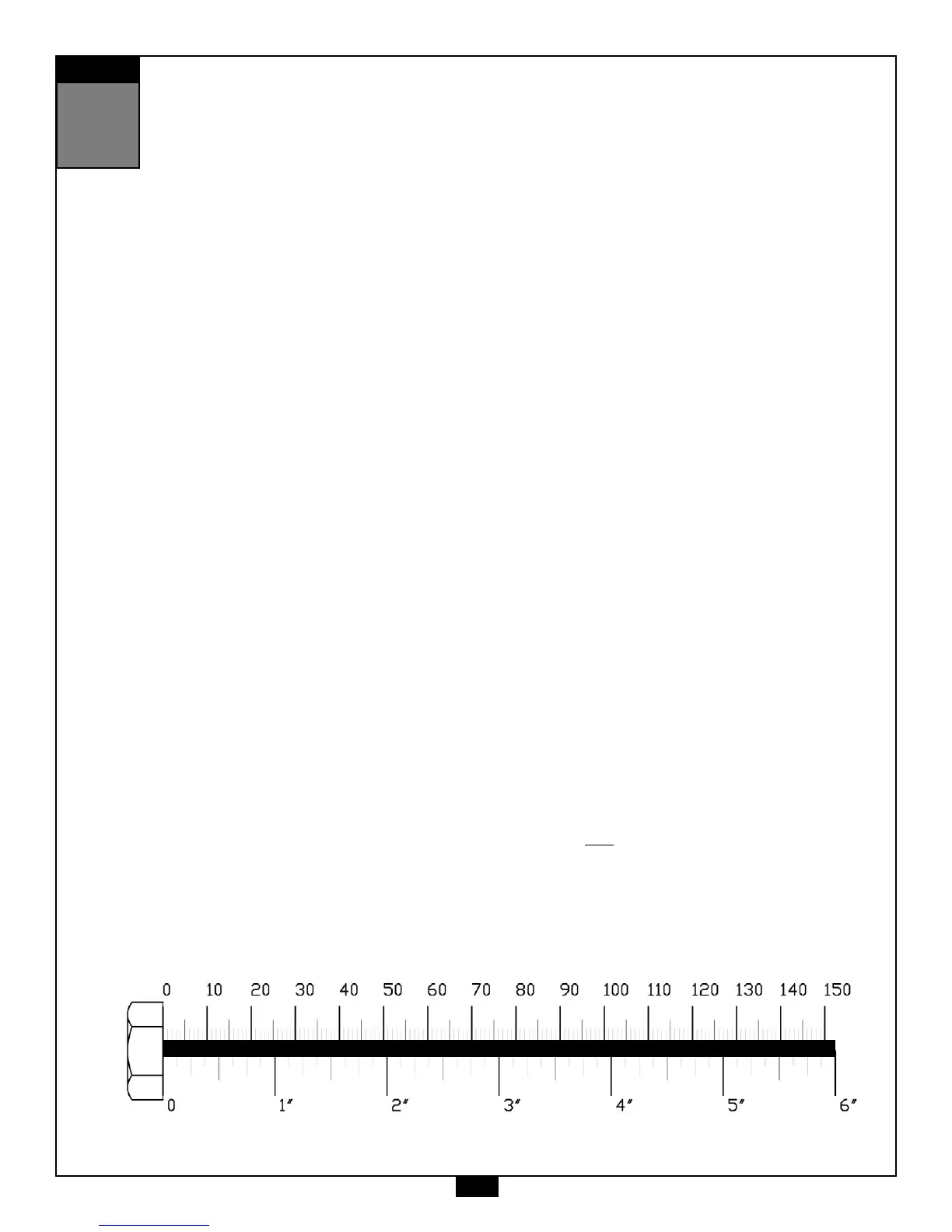

Inch
MM
16
A. Attach Press Arm Pivot (Q) to Upper Main Frame (D) as shown using Shaft (16) and:
Two 99 (3/8” x 3/4” allen head bolt)
Two 60 (3/8” washer)
Tighten the two Allen Screws (8) in the Upper Main Frame (D).
B. Attach Press Arm (R) to the Press Arm Pivot (Q) as shown using Shaft (5).
Install Round Pop Pin (13).*
Tighten the two Allen Screws (8) in the Press Arm (R).
Attach Rubber Stop (94)* and Jam Nut (47)* as shown into Upper Main Frame (D).
*NOTE:
These three parts might be pre-installed.
C. Attach Right Handle (S)* and Left Handle (T)* to Press Arm (R) as shown using for each handle:
One 51 (3/8” x 2 1/4” hex head bolt)
One 70 (3/8” nylon lock nut)
*NOTE:
To identify the difference between left and right: notice in the picture in
Step 5 the horizontal grips point outward, and the smaller grip is angled
toward the front of the gym.
D. Install two 4 1/4” diameter Pulley (4) into Press Arm Pivot (Q) as shown using:
Two 50 (3/8” x 7 1/4” threaded rod)*
Four 3 (pulley spacer)
Four 60 (3/8” washer)
Four 70 (3/8” nylon lock nut)
*NOTE:
Leave the two threaded rods (50) hand tight.
You will install a shroud after cable installation in Step 7.
G. You can now wrench tighten all bolts and nuts in this step. Do NOT re-tighten any of the pad bolts.
Leave all pulley bolts hand tight until cable installation in step 10 is completed.
