Powerline P1 - Assembly Step 1; Main Frame Assembly

8
Be careful to assemble all components in the
sequence they are presented.
S T E P
1

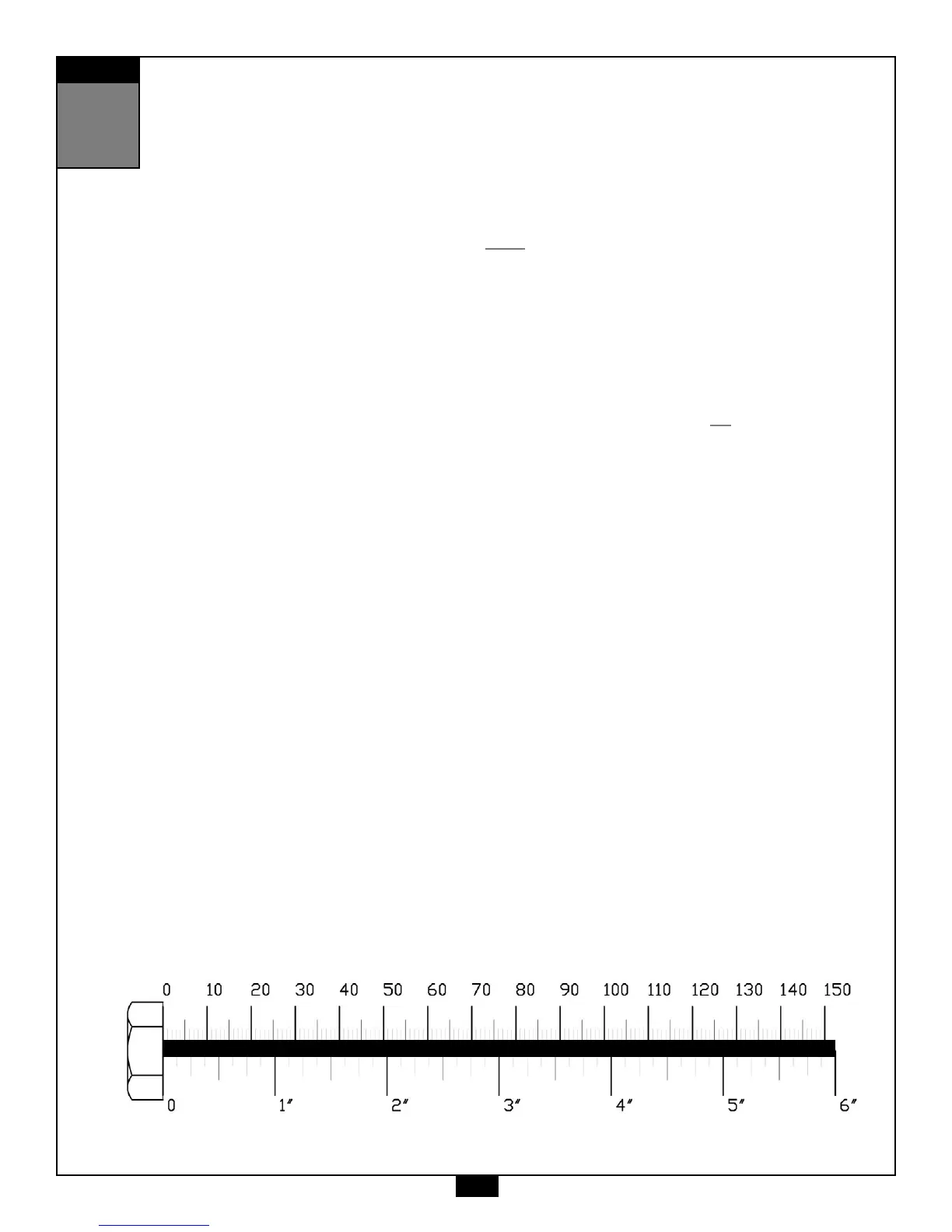

Inch
MM
NOTE:
Finger tighten all hardware in this step. Do NOT wrench tighten until the end of step 2.
A. Attach Stabilizing Leg (P) to the Lower Main Frame (A) as shown using:
One 58 (3/8” x 4” hex head bolt)
Two 60 (3/8” washer)
Two 14 (pulley spacer)*
One 70 (3/8” nylon lock nut)
*NOTE:
The Pulley Spacers fit into Lower Main Frame. Finger tighten all
hardware in this step, you will be installing a pulley in Step 9 here.
B. Attach Lower Main Frame (A) to Rear Leg (B) and Rear Upright (C) using:
Two 55 (3/8” x 2 1/2” hex head bolts)
Two 70 (3/8” nylon lock nut)
C. Attach Upper Main Frame (D) to Lower Main Frame (A) using:
Two 58 (3/8” x 4” hex head bolt)
Four 60 (3/8” flat washer)
Two 70 (3/8” nylon lock nut)
D. Attach Flat Plate (H) as shown using:
Two 55 (3/8” x 2 1/2” hex head bolt)
Four 60 (3/8” flat washer)
Two 70 (3/8” nylon lock nut)
E. Attach two End Caps (17)* to Upper Main Frame (D) as shown.
Attach two Foot Caps (46)* to Stabilizing Leg (P) as shown.
Attach 2 Foot Caps (46)* to Rear Leg (B) as shown.
*NOTE:
These parts might be pre-installed.
