Powermate M-1 - Side Handle Installation

DETAIL A
S
IDE HANDLE IN
S
TALLATI
O
N IN
S
TRU
C
TI
O
N
SIDE HANDLE KIT No. 400790
PowerMate
®
Operation Manua
l

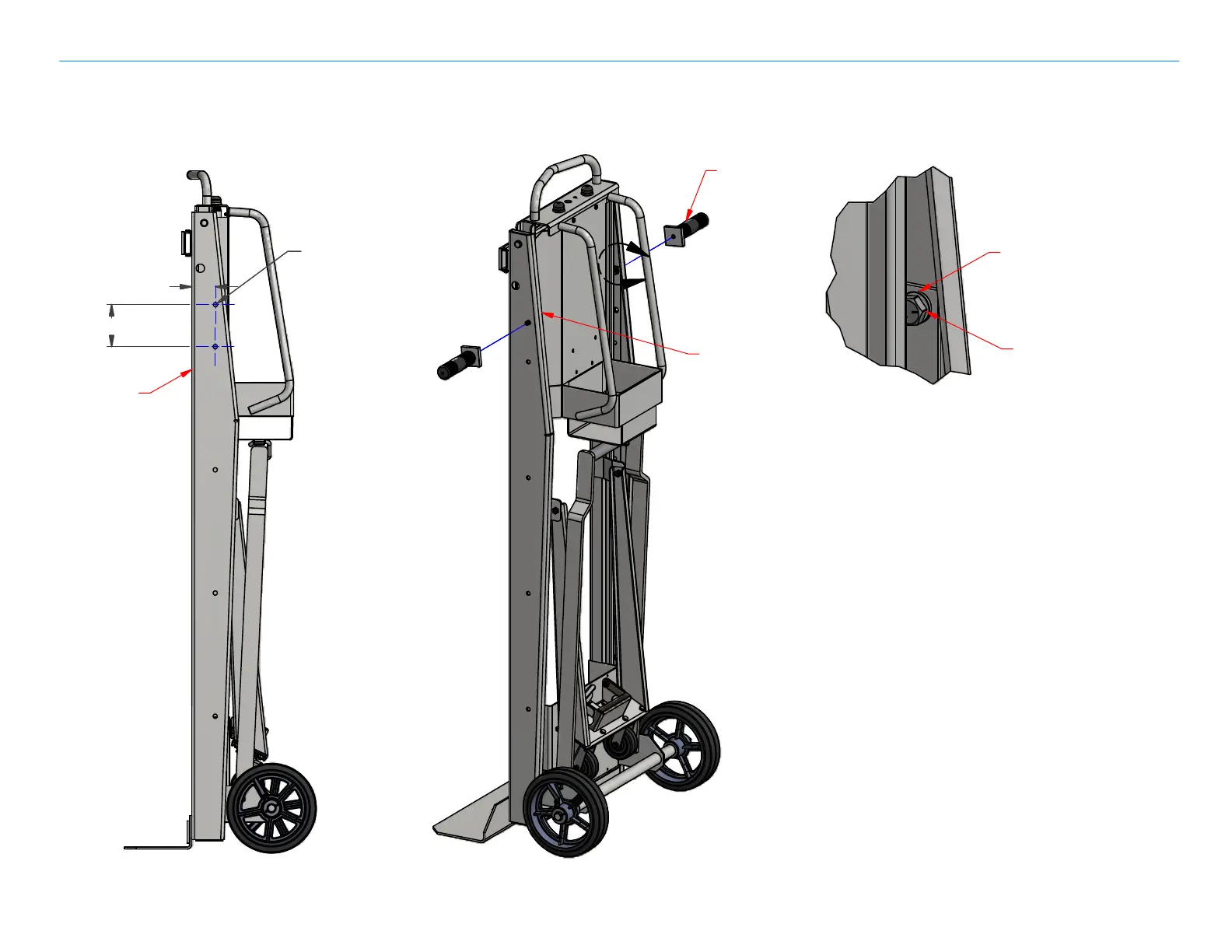

Instruction:
1. Drill a 3/8"diameter hole in the Outer Frame
3 3/4" above the top Strap Bar holes.
2. Insert 5/16"Bolt and Washer into 3/8"hole
from the inside of the Outer Frame. Thread
Side Handle onto Bolt. Align a flat side of
the Side Handle base to the rear face of the
Outer Frame. Tighten Bolt.
3. Repeat above for other Side Handle.
A
3 3/4 in [95 mm]
2 1/8 in [54 mm]
3/8 in [9.5mm] Drill
Outer Frame
Side Handle
Typ.2
Rear Face of
Outer Frame
Typ.2
Typ.2
PN 010760 Rev.E
Assembly 400790
Eng. 05/ 08/ 14
5/16"Split Lock Washer
5/16-18NC x 3/4"Bolt
7.05
