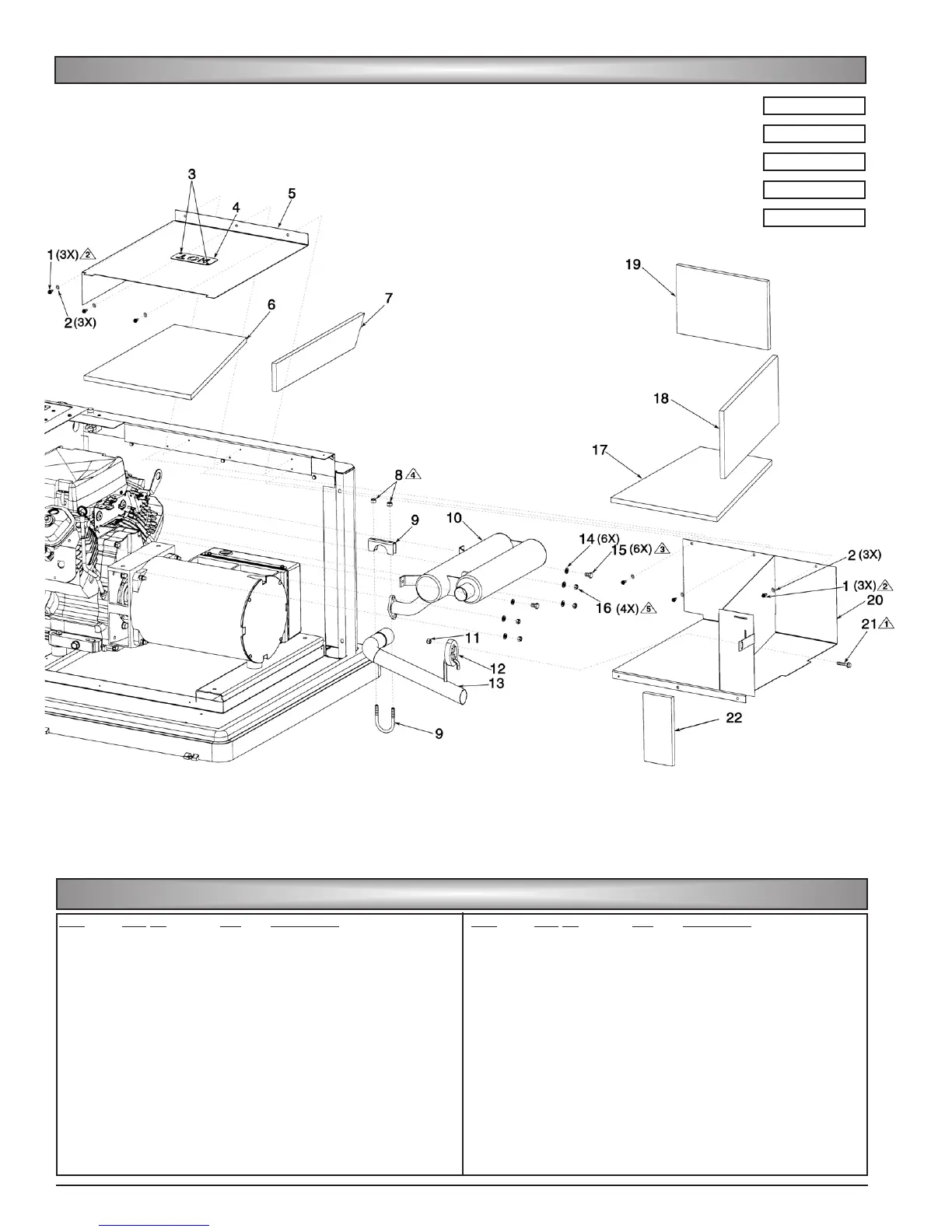

Item Part No Qty Description
1 N/A 9 Screw, 10-16 x .50” lg
2 N/A 9 Star washer, #10
3 N/A 2 Rivet
4 Not replaceable 1 Label, hot, stamped steel
5 115-0262 1 Cover, muffler (includes items 3,
4, 6 & 7)
6 094-0069 1 Insulation
7 094-0073 1 Insulation
8 N/A 2 Nut, 5/16-18
9 0056767 1 Clamp, saddle (includes (2) item
#8)
10 019-0214 1 Exhaust manifold muffler, Honda
11 N/A 1 Nut, 1/4-20, Nylon stop
12 094-0093 1 Isolator, muffler bracket to panel
13 145-0418 1 Tail pipe
14 N/A 6 Lock washer, 5/16”
Item Part No Qty Description
15 N/A 2 Screw, m8 x 13 mm lg
16 N/A 4 Nut (see Honda manual)
17 094-0070 1 Insulation
18 094-0072 1 Insulation
19 094-0071 1 Insulation
20 115-0263 1 Muffler box (includes items 17,
18, 19 & 22)
21 N/A 1 Bolt, 1/4-20 x 1.25” lg
22 094-0094 1 Insulation
*N/A - These are standard parts available at your local
hardware store.
P
P
A
A
R
R
T
T
S
S
L
L
I
I
S
S
T
T
Torque to 8.5 lbs-ft
Torque to 15 lbs-in
Torque to 16 lbs-ft
Torque to 17 lbs-ft
Torque to 20 lbs-ft
