Questions? Call Toll Free at 1-800-737-2112 Copyright © 2018 MAT Engine Technologies, LLC
EN - 6
Specifications
• Save all instructions
1. Control Lever - Release to stop the engine.
2. Recoil Starter Handle - The engine is equipped with an
easy pull recoil starter.
3. Recoil Starter Cover - Covers recoil starter mechanism.
Holes allow air intake to cooling system.
4. Spark Plug/Spark Plug Wire - Provides spark to ignite
air/fuel mixture. The spark plug wire must be moved
away from the spark plug when servicing the unit.
5. Muffler - Location of engine exhaust.
6. Trimmer Guard - Protects the operator from thrown
debris. Blade mounted on guard will automatically cut
trimmer line to correct length if line is too long.
7. Trimmer Line - Rotating cutting element of trimmer.
8. Trimmer Head - Rotates the trimmer lines.
9. Primer Button - Injects fuel directly into the carburetor
for faster starts.
10. Air Filter - Removes debris and contaminates from
intake air, allowing engine to run smoothly with low
exhaust.
11. Pivot Handle - Allows the trimmer head to be pivoted left,
centered or right.
12. Trimmer Line Storage - Carries additional pieces of
replacement line.
13. Trimmer Line Cut Guide - Aid to cut line to correct length.
14. Trimmer Head Height Adjustment - Allows trimmer head
to be adjusted vertically.
Features
UNIT
Unit Weight............................77 lb. (35 kg)
Cutting Swath....................... 22 in. (599 mm)
Cutting Line Diameter. . . . . . . . . . . . . . . . . 0.155 in. (4 mm)
Wheel Diameter ..................... 14 in. (356 mm)
Cutting Height................ Adjustable, 2 in. (51mm),
3 in. (76mm), 4 in. ( 102mm)
Gasoline Type .....Regular Unleaded – 87 Octane (min.)
Gasoline Capacity ..................... 1.4 qt. (1.3 L)
Oil Type (API SG-SL) . . . . . .10W-30 is recommended for all
service temperatures. See page 8 for additional information.
Oil Capacity .........................17 oz. (500 ml)
Spark Plug Model...................... Torch K6RTC
Spark Plug Gap ............... 0.030-0.037 in. (0.8-0.9
mm)
ENGINE
Type ................................4 Stroke, OHV
Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 cc
Torque Rating .....6.27 ft/lbs gross torque per SAE J1940
Bore Diam. x Stroke.........2.75 x 1.77 in. (70 x 45 mm)
Intake Valve Clearance . . . . 0.003-0.005 in. (0.08-0.12 mm)
Exhaust Valve Clearance . . . 0.006-0.008 in. (0.15-0.20 mm)
Full Throttle RPM . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3000

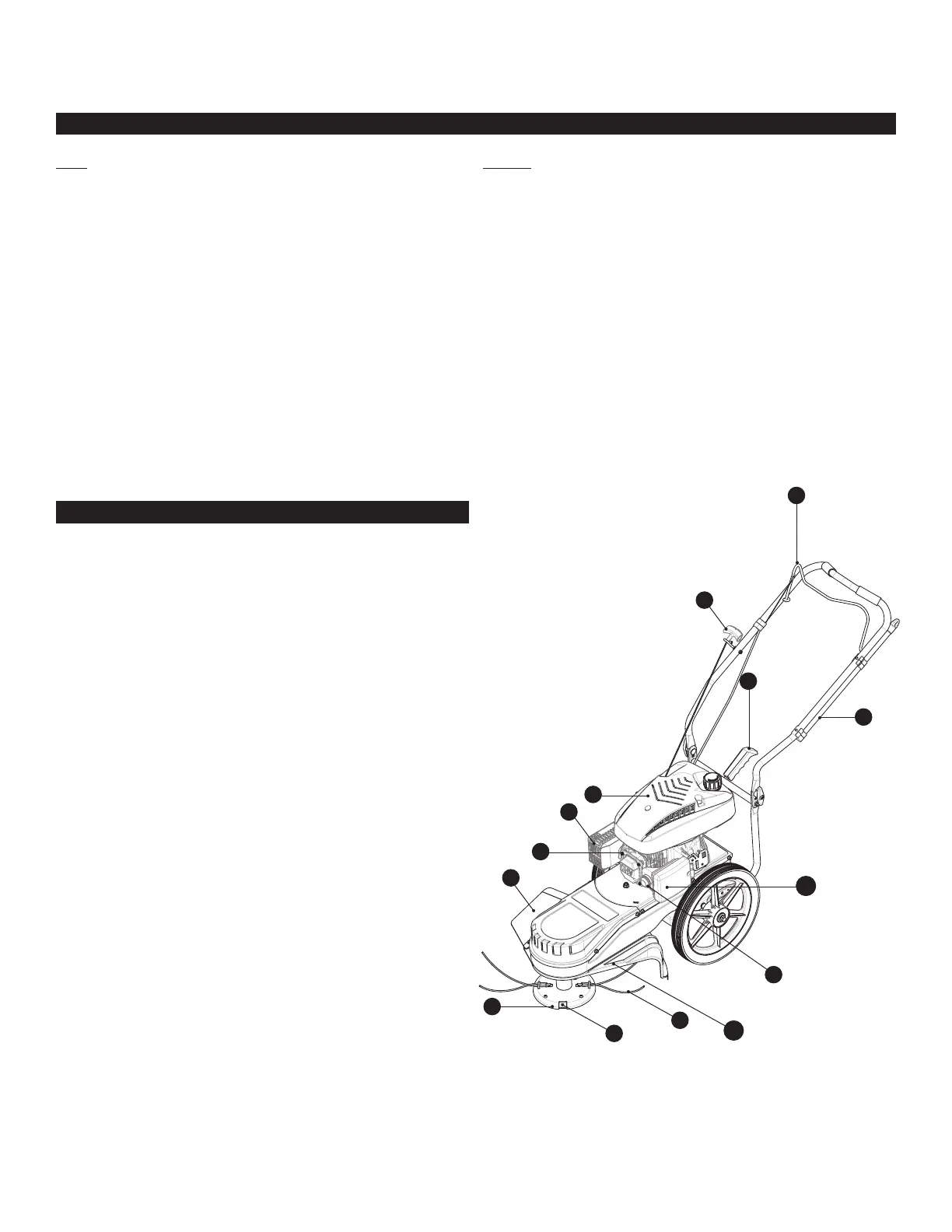

Figure 1
3
4
5
6
7
14
8
9
12
10
13
1
11
2
