7
Unpacking
Open shipping container and check for shipping
damage. Report any damage immediately to
your distributor and shipping agent. Do not
discard any shipping material until the Drill Press
is assembled and running properly.
Compare the contents of your container with the
following parts list to make sure all parts are
intact. Missing parts, if any, should be reported
to your distributor. Read the instruction manual
thoroughly for assembly, maintenance and
safety instructions.
Contents of the Shipping Container
1 Column Assembly with Rack and Ring
1 Head Assembly
1 Base
1 Table Bracket and Table

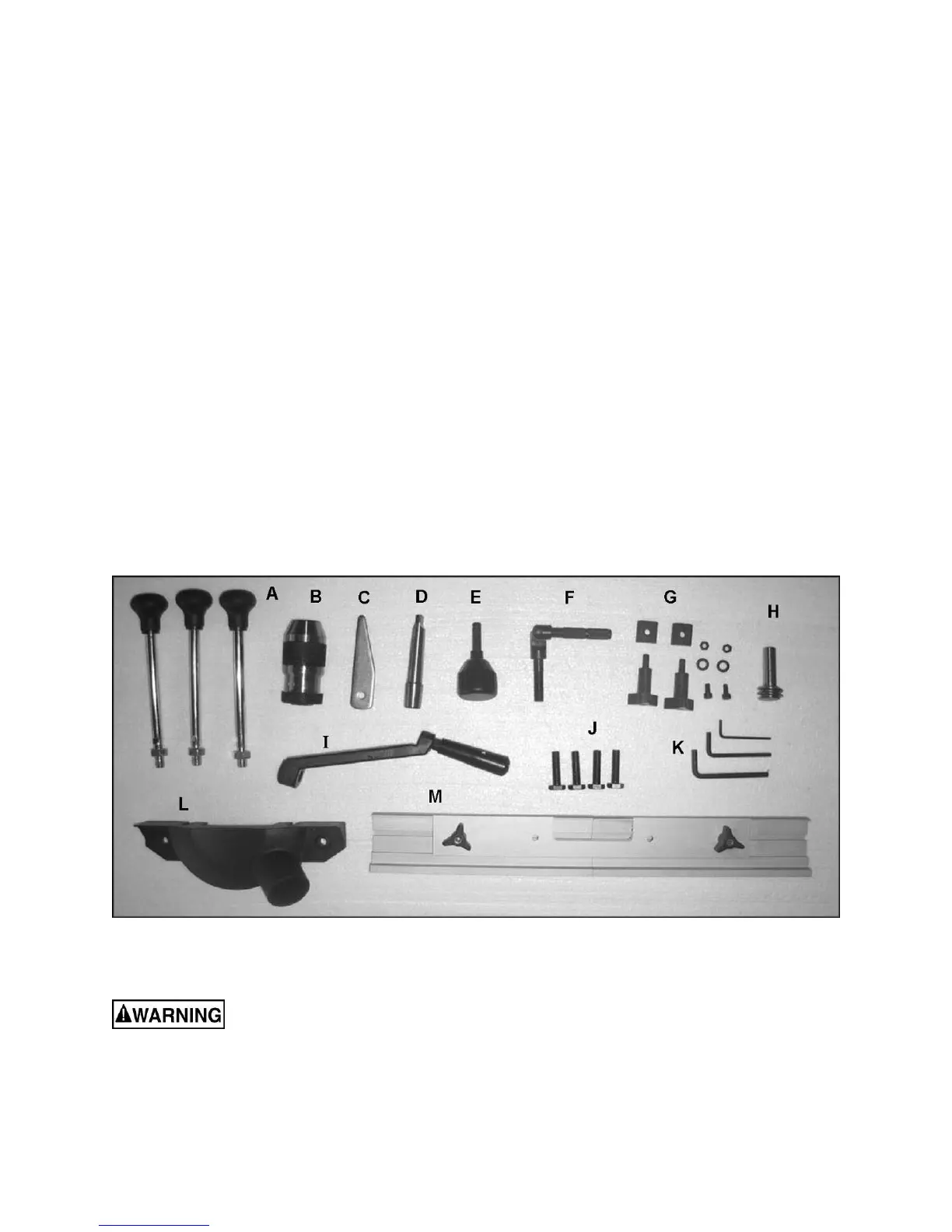

The smaller accessories are shown in Figure 1:
3 Downfeed Handles (A)
1 Chuck (B)
1 Drift Key (C)
1 Arbor (D)
1 Shift Knob (E)
1 Locking Handle (F)
2 Lock Knobs (G)
2 T-Nuts (G)
2 Flat Washers (G)
2 Socket Head Cap Screws, M6x12 (G)
2 Hex Nuts, M6 (G)
1 Worm (H)
1 Large Handle (I)
4 Hex Cap Screws, M10x40 (J)
3 Hex Wrenches, 3, 5 and 6mm (K)
1 Dust Port (L)
1 Fence Assembly (M)
1 Owner's Manual (not s hown)
1 Warranty Card (not shown)
Figure 1
Read and understand the entire contents of this manual before attempting set-up
or operation! Failure to comply may cause serious injury.
