CLEARING A JAM

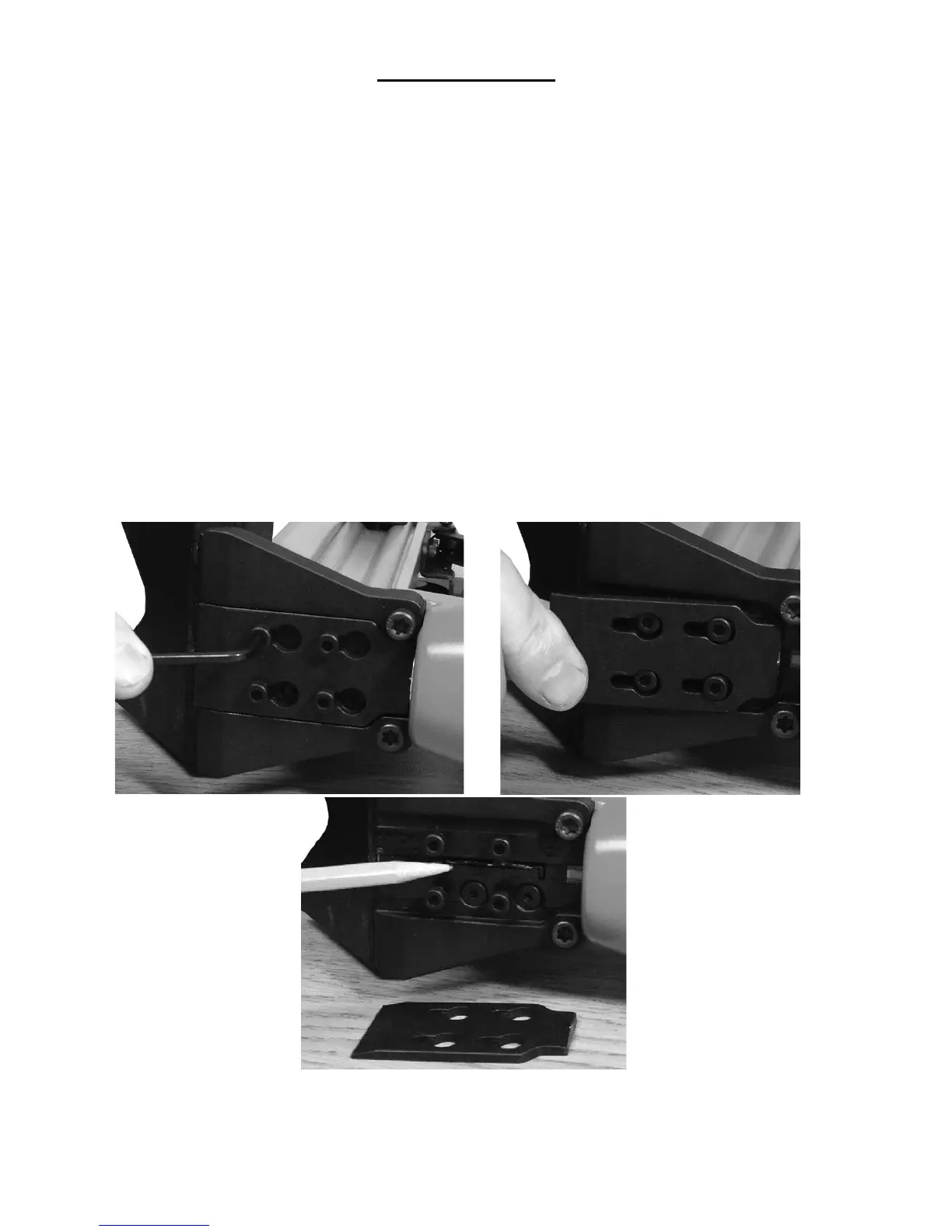

Disassembly: (See Figure 7.)
1) NOTE: Do not remove the four M4 screws (80).
2) Loosen the 4 M4 screws (78) with a 3mm allen wrench.
3) Slide the gate plate down until it is free from the nose..
6) Lift the gate plate (72) off .
5) Inspect and clear any debris from the drive blade (27) and its path.
Reassembly:
1) Install the the gate plate over the four M4 screws (72).
2) Slide the gate plate upwards as far as it go.
3) Tighten the four M4 screws.
4) Unit is ready for funtional testing.
