Powerplay SPYDER - Page 9

Assembly Instructions
9

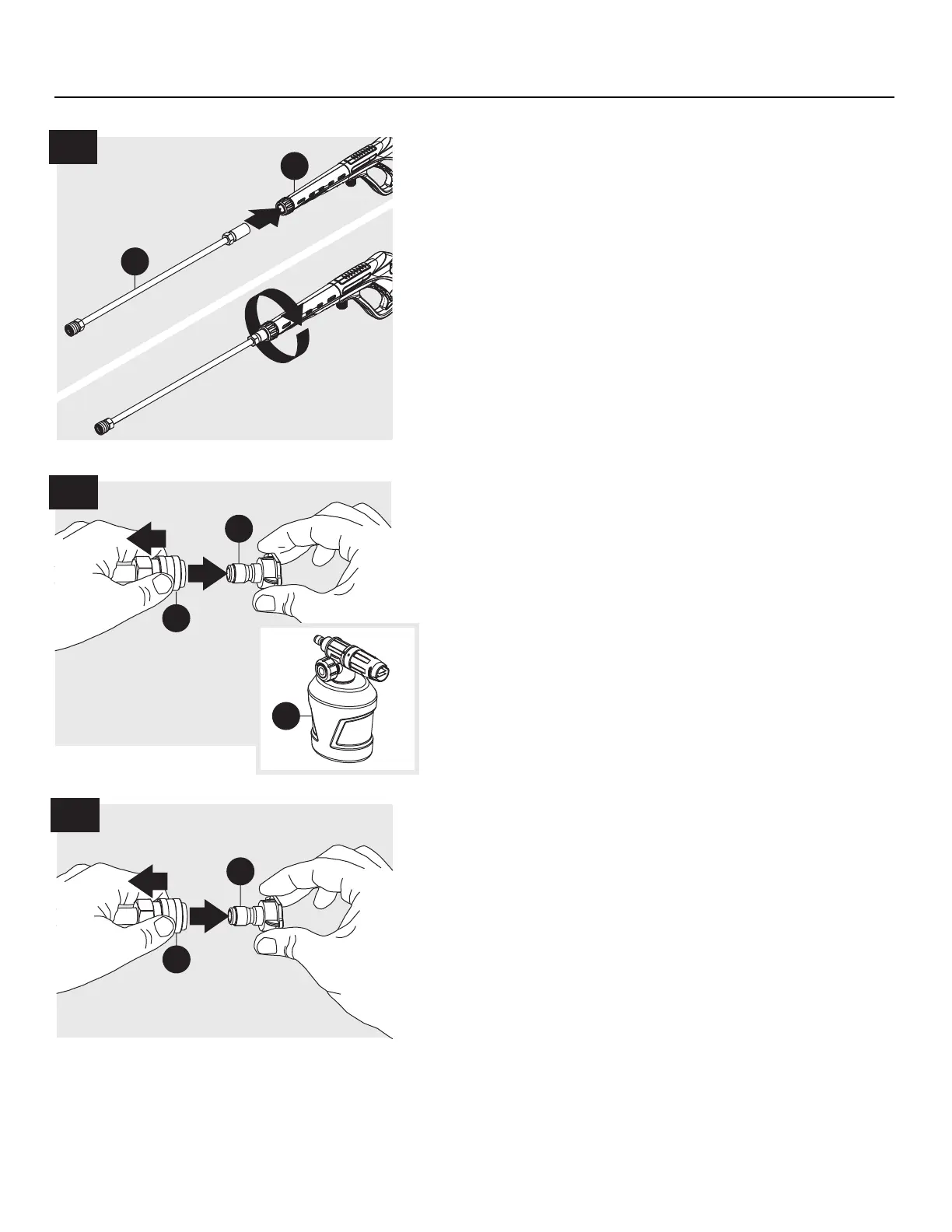

Insert lance (J) into spray gun (H) and turn clockwise to
tighten (DO NOT overtighten).
Note: ALWAYS engage the safety lock (I) when changing
lances and spray tips to ensure that they do not
accidentally eject with force during removal.
Attach spray tips (K) or foam cannon (L) into end of
lance (J) by pressing selected tip into place. It will make
a “click” sound when firmly in place.
Note: ALWAYS engage the safety lock (K) when
changing lances and spray tips to ensure that they do
not accidentally eject with force during removal.
2
1
J
H
10
2
11
J
K
1
L
To remove spray tip (K), pull back on collar of lance (J)
and pull out spray tip.
