ASSEMBLY INSTRUCTIONS
Step 8:
8a: Locate log catcher accessory box.
8b: Remove the contents and inspect for damage. Note: If any part is damaged, contact your dealer or delivering carrier.
8c: Locate the (2) M12 x 35mm bolts, (2) M12 flat washers, and (2) M12 lock washers
8d: Align holes in log catcher with holes in the beam.
8e: Attach log catcher with provided hardware and tighten.

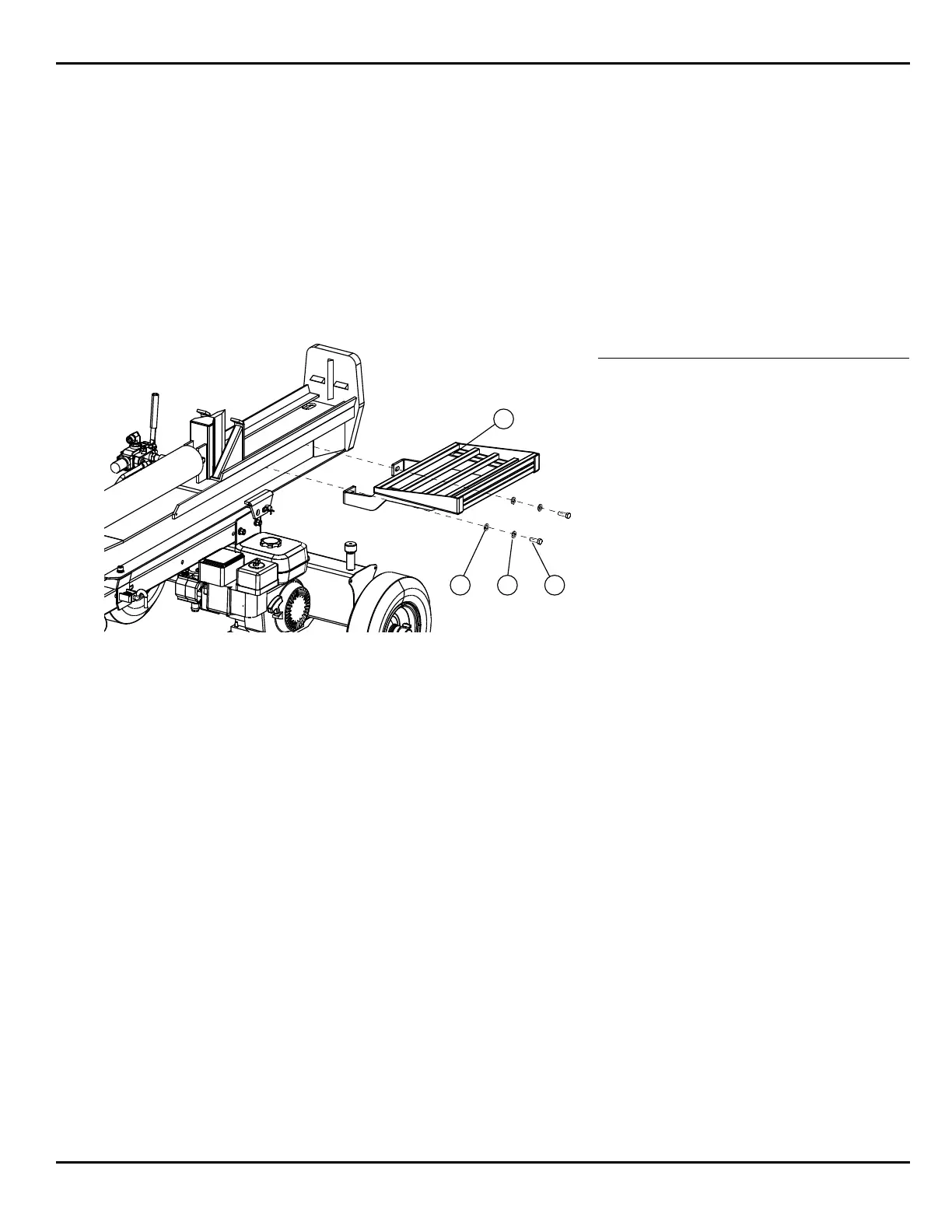

1
3 4 2
Item Description Quantity
1 Log Catcher 1
2 M12 x 35 Bolt 2
3 12mm Washer 2
4 M12 Lock Washer 2
To Next Page
