KNOWING YOUR LAWN MOWER

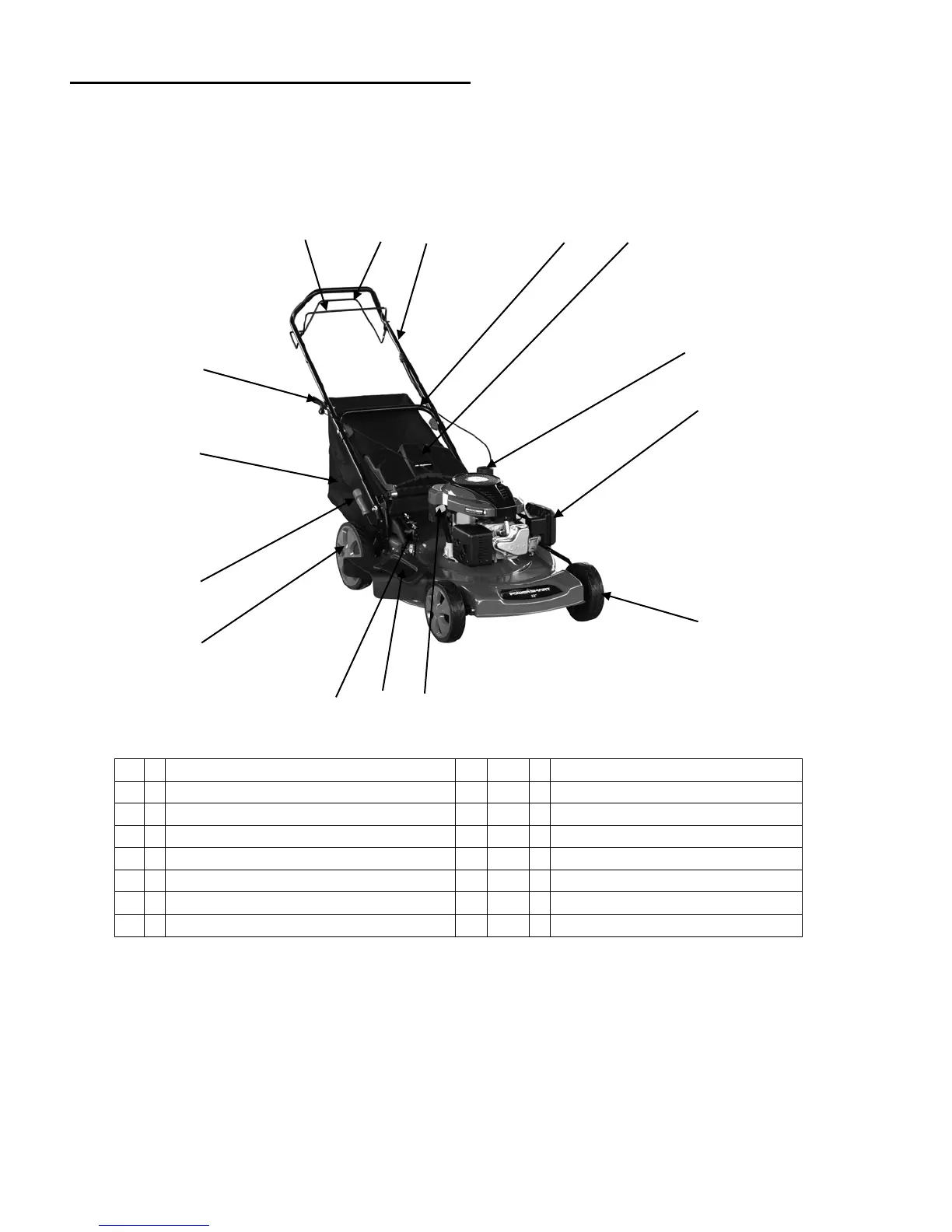

Please use the illustration below to familiarize yourself with the location and function of the components
that control of your lawn mower.
1
Recoil Starter handle
9
Air Filter
2
Grass catcher
10
Fuel tank cap
3
Cutting height adjustment lever
11
Rear discharge door
4
Rear wheel
12
Lower handle
5
Mulching control lever
13
Upper handle
6
Side discharge cover
14
Engine start/stop lever
7
Oil dipstick
15
Drive control bar
8
Front wheel
15 14 13 12 11
5 6 7
10
9
8
1
2
3
4
