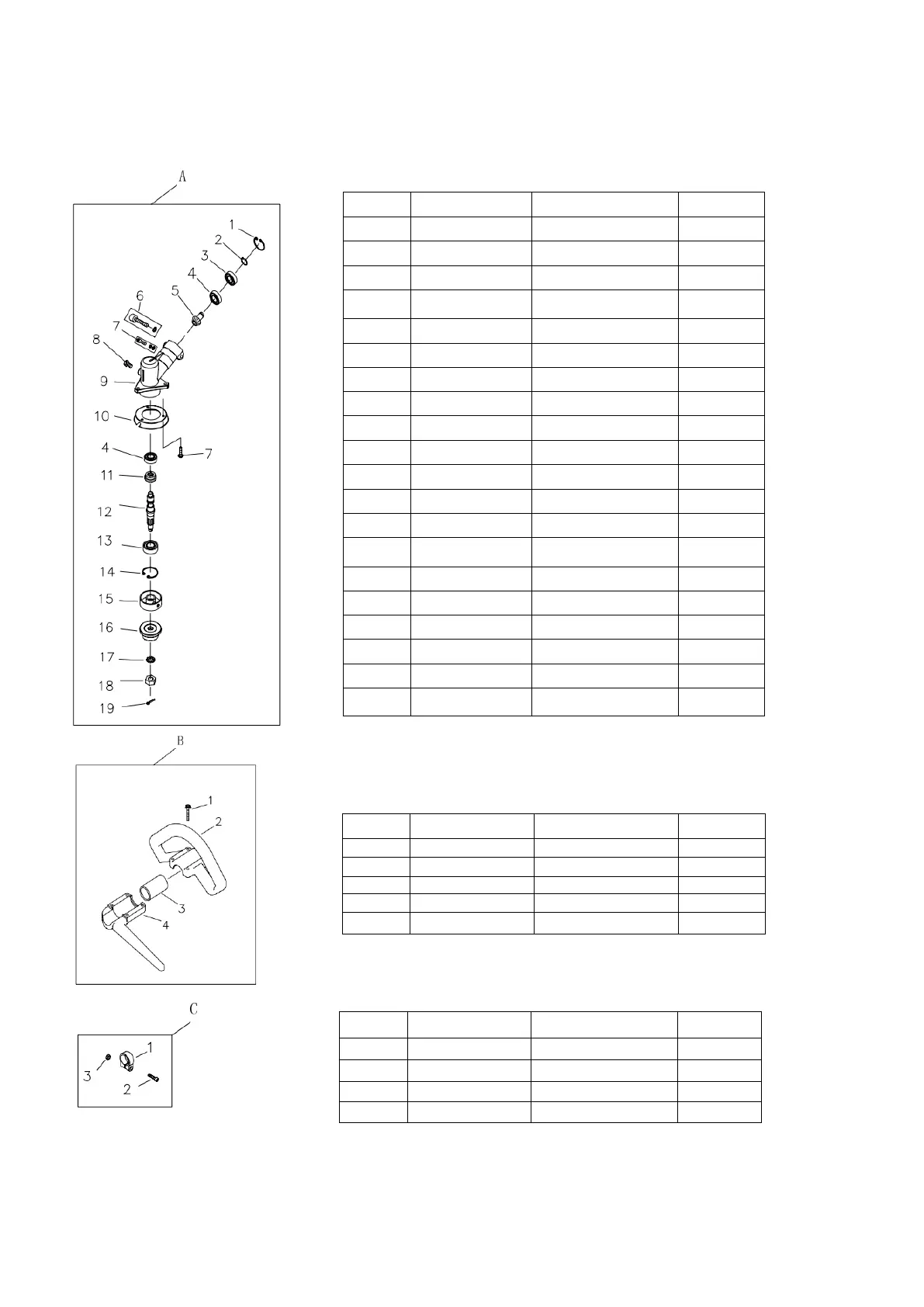

Brush cutter &String trimmer exploded view
Item Stock # Description Qty
A PS4532-A Gear Case Ass’y 1
1 PS4532-A-001 Stop Ring 26 1
2 PS4532-A-002 Stop Ring 10 1
3 PS4532-A-003 Bearing 6000-2RS/P6 1
4 PS4532-A-004 Bearing 6000/P6 2
5 PS4532-A-005 Pinion 1
6 PS4532-A-006
Screw M5×20
1
7 PS4532-A-007
Screw M5
×
12
4
8 PS4532-A-008
Bolt M5×20
1
9 PS4532-A-009 Gear Case 1
10 PS4532-A-010 Safety Guard 1
11 PS4532-A-011 Gear 1
12 PS4532-A-012 Gear Shaft 1
13 PS4532-A-013 Bearing 6002-2RS/P6 1
14 PS4532-A-014 Stop Ring 32 1
15 PS4532-A-015 Holder A 1
16 PS4532-A-016 Holder B 1
17 PS4532-A-017 Washer 10 1
18 PS4532-A-018 Left Nut 1
19 PS4532-A-019
Pin 2×16
1
Item Stock # Description Qty
B PS4532-B Handle 1
1 PS4532-B-001
Screw M5×35
4
2
PS4532-B-002
Handle
1
3 PS4532-B-003 Rubber Cover 1
4 PS4532-B-004 Handle Cover 1
Item Stock # Description Qty
C PS4532-C Clamp 2
1 PS4532-C-001 Clamp 1
2 PS4532-C-002
Screw M5×35
1
3 PS4532-C-003 Nut M5 1
