Powersmart PS6108 - Exploded View & Parts List

14

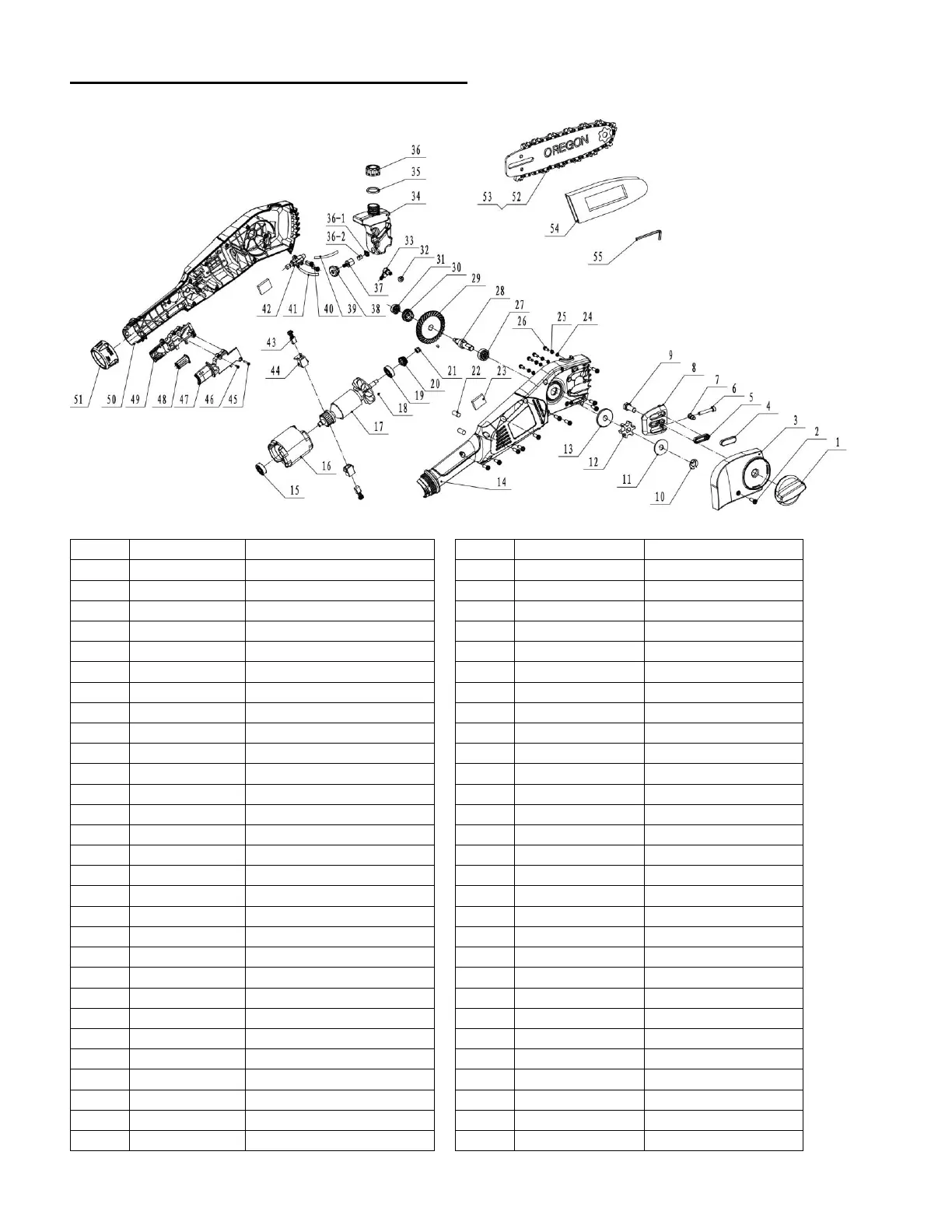

EXPLODED VIEW & PARTS LIST
Item
Stock #
Description
Item
Stock #
Description
1
PS6108-101
Sprocket locking knob
30
PS6108-130
Worm shaft
2
PS6108-102
Screw ST4.2x14
31
PS6108-131
Bearing 606
3
PS6108-103
Guide bar cover
32
PS6108-132
O-ring
4
PS6108-104
Gasket
33
PS6108-133
Pipe connector
5
PS6108-105
Seal
34
PS6108-134
Oil tank
6
PS6108-106
Tension screw M5x30
35
PS6108-135
Oil tank seal
7
PS6108-107
Tension nut
36
PS6108-136
Oil tank cap
8
PS6108-108
Right side
36-1
PS6108-136-1
filter cover
9
PS6108-109
Bolt M8x20
36-2
PS6108-136-2
Filter
10
PS6108-110
Snap ring
37
PS6108-137
Valve
11
PS6108-111
Washer
38
PS6108-138
Pipe seal
12
PS6108-112
Sprocket
39
PS6108-139
Pipe 70mm
13
PS6108-113
Bearing cover
40
PS6108-140
Screw ST4.2x10
14
PS6108-114
Right motor cover
41
PS6108-141
Pipe 65mm
15
PS6108-115
Bearing 627
42
PS6108-142
Oil pump
16
PS6108-116
Stator
43
PS6108-143
Carbon brush
17
PS6108-117
Rotor
44
PS6108-144
Brush holder
18
PS6108-118
Key 2.5x10
45
PS6108-145
Screw ST2.9x16
19
PS6108-119
Bearing 608
46
PS6108-146
ST2.9x10
20
PS6108-120
Gear
47
PS6108-147
Right switch box
21
PS6108-121
Locknut M5
48
PS6108-148
Plug
22
PS6108-122
Rubber bracket
49
PS6108-149
Left switch box
23
PS6108-123
bracket
50
PS6108-150
Left motor cover
24
PS6108-124
Washer 4
51
PS6108-151
Knob
25
PS6108-125
Spring washer 4
52
PS6108-152
Guide bar
26
PS6108-126
Screw M4x10
53
PS6108-153
Saw chain
27
PS6108-127
Bearing 6900
54
PS6108-154
Scabbard
28
PS6108-128
Shaft
55
PS6108-155
Wrench
29
PS6108-129
Worm gear
