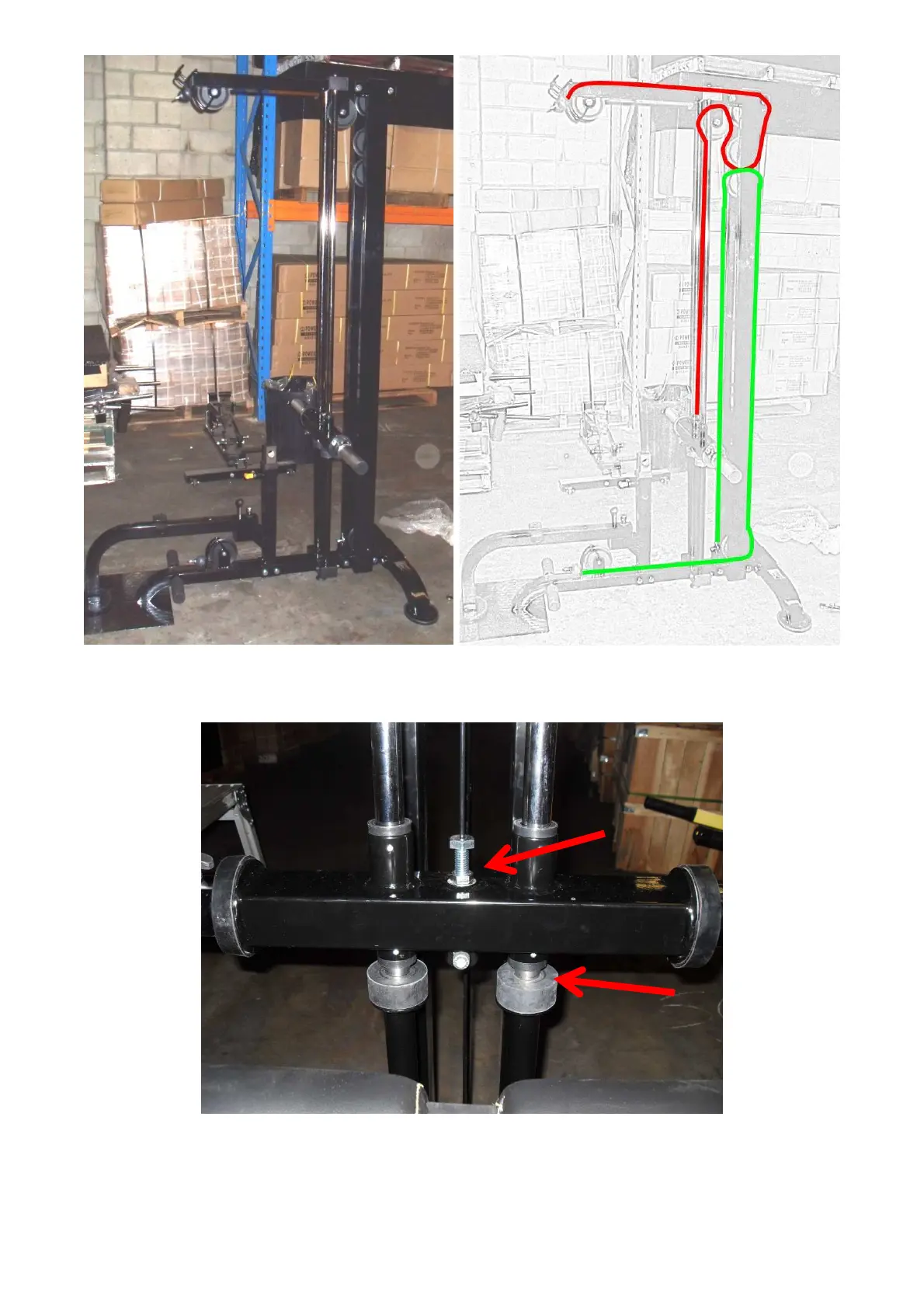

The bottom cable just loops up around the linkage section and anchors at the bottom. I have drawn the cable path above to
simplify it.
Screw the bolt into the weight carriage and tighten the lock nut in place once you have got the carriage in the right position.
What is the right height? I have the carriage sitting a little off the bumpers with no weight on. Once you put weight on, the
carriage will settle on the bumpers. Over time you will need to tighten the bolt down as the cable stretches slightly.
