minimum of 5 minutes and remove the suspended dirt, finish and
solution.
Squeegee: Every week, check the blades of the squeegee and
wash them carefully. Then replace them in the correct working
position. If drying is not perfect even after the unit has been
cleaned, replace any blades which are excessively worn. If the
squeegee does not pick up enough water or streaks, lift and wipe
off the blades.
The pad driver or brush must be in good working condition
because it is the component which removes the dirt.
To remove the brush/ pad driver from the machine:
• Depress the brush pedal (M9) to lift the brush.
• With the brush in the air depress the handle (M10) to
rotate the brush.
• Release the handle and the brush will release from the
machine and fall to the floor.
To replace the drive block, pad or brush:
• Center the brush/pad driver under the front of the
machine.
• Release the brush pedal (M9) to lower the brush drive
motor on to the brush/pad driver.
• Turn the brush motor on by depressing the brush switch
(M7). The brush/pad driver should lock in place.
• If the brush/pad driver does not connect, small
adjustments are needed from one side to the other to make
the brush/pad driver lock in place.
The machine is supplied with a pad driver. Brushes in tynex,
poly and steel are available on request, together with floor pads
recommended for use with the pad driver. Black for stripping,
green for deep scrub, blue for cleansing and red for light scrub.

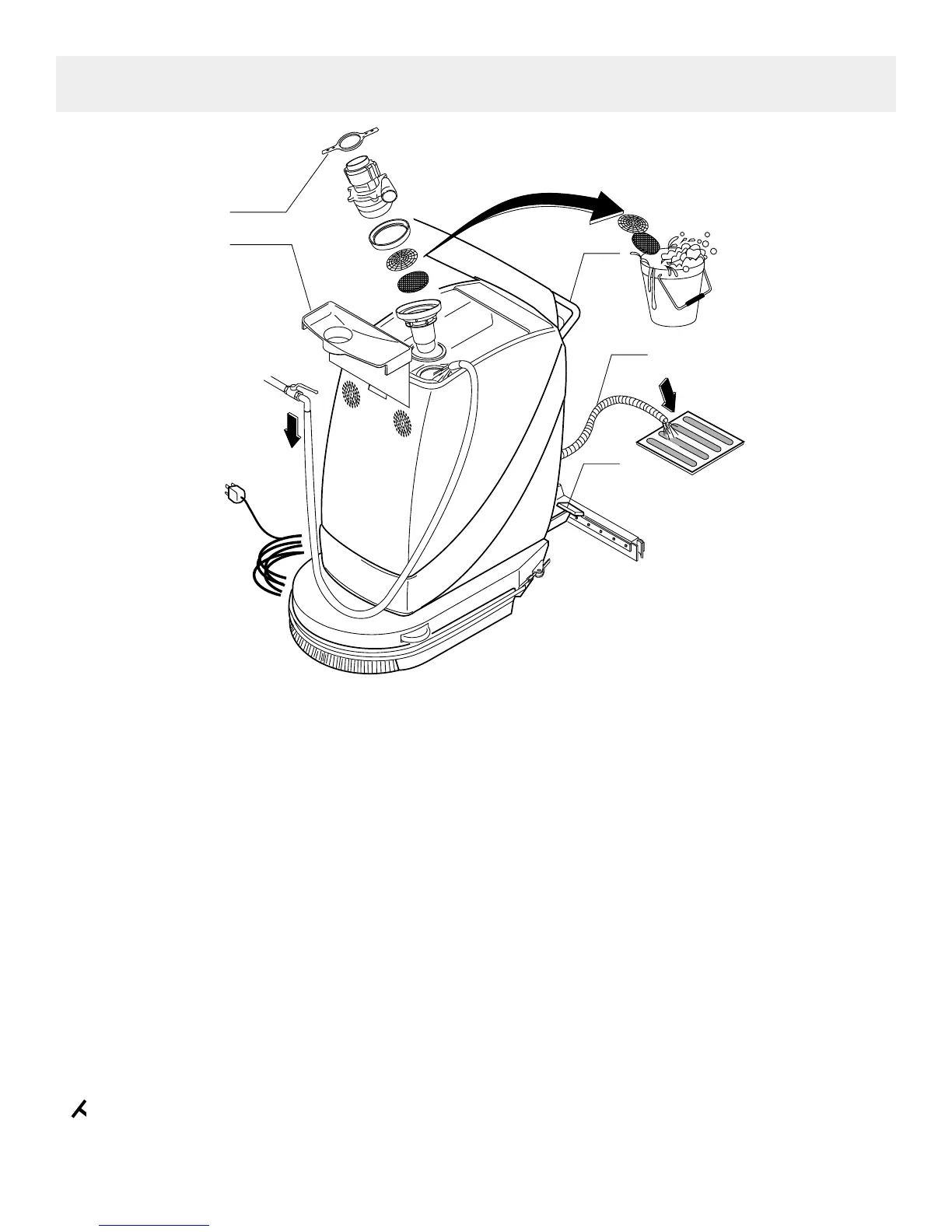

Water collection tank: This tank should be cleaned every week.
Lift the lid and remove the panel or funnel M1 of the solution tank.
Remove the strap M13 and lift the vacuum motor out of its seat.
Thoroughly clean the filter and wash out the dirt deposited in the
tank with a jet of water, allowing it to drain out through hose M2.
If necessary, replace filter. Replace float cage with open side facing
front of scrubber.
- 7 -
